- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V 50HZ
-
Power:
-
40 KW
-
Dimension(L*W*H):
-
2300*1200*2000 mm
-
Weight:
-
2500 kg
-
Marketing Type:
-
New Product 2021
-
Name:
-
Egg tray machine
-
Raw material:
-
All kinds of waste paper
-
Finished Products:
-
Egg tray, egg carton, fruit tray, wine tray, medical tray
-
Production line:
-
Paper pulp system, forming system, drying system
-
Automation:
-
Fully or semi-automatic
-
Mould:
-
Customized
-
Product mould:
-
Aluminum mold and plastic mold
-
Drying system:
-
Metal drying, brick kiln drying, box drying
-
Drying fuel:
-
Coal, oil, natural gas, liquefied petroleum gas
-
After-sale service:
-
One year warranty, engineers are available
Quick Details
-
Production Capacity:
-
50-60 sets per month
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fuyuan
-
Voltage:
-
380V 50HZ
-
Power:
-
40 KW
-
Dimension(L*W*H):
-
2300*1200*2000 mm
-
Weight:
-
2500 kg
-
Marketing Type:
-
New Product 2021
-
Name:
-
Egg tray machine
-
Raw material:
-
All kinds of waste paper
-
Finished Products:
-
Egg tray, egg carton, fruit tray, wine tray, medical tray
-
Production line:
-
Paper pulp system, forming system, drying system
-
Automation:
-
Fully or semi-automatic
-
Mould:
-
Customized
-
Product mould:
-
Aluminum mold and plastic mold
-
Drying system:
-
Metal drying, brick kiln drying, box drying
-
Drying fuel:
-
Coal, oil, natural gas, liquefied petroleum gas
-
After-sale service:
-
One year warranty, engineers are available

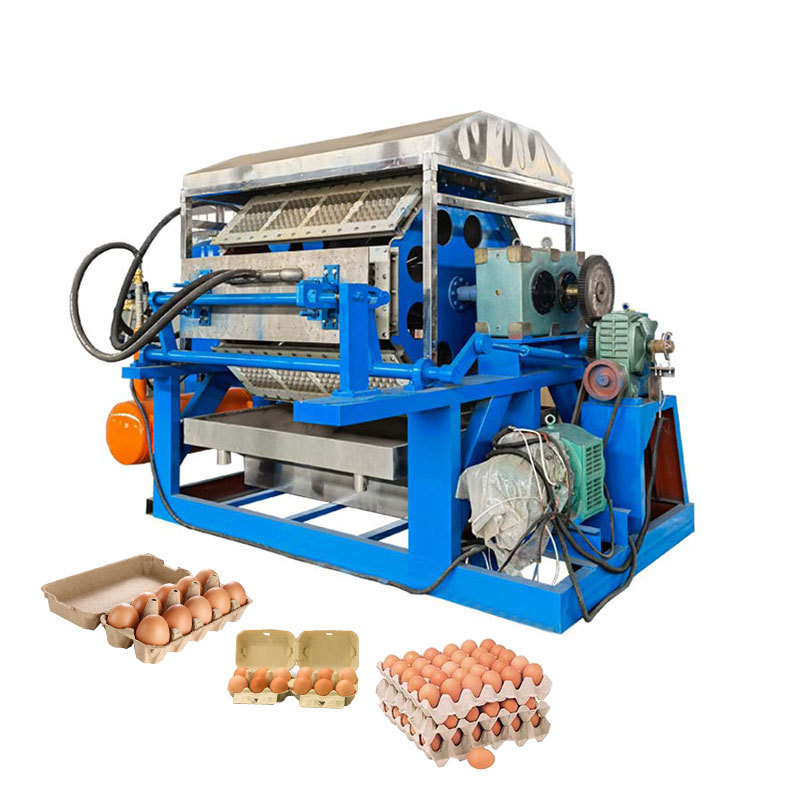

Low Cost Automatic Paper Pulp Egg Tray Making Machine Production Line in China
Egg tray machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. Our egg tray machines select high quality electronic devices and pneumatic components and are fully designed by computer assistant engineering and high technology. It has been proven high efficiency, low maintenance and energy saving.
There are various types and output of egg tray making machines can be supplied by our company, such as 1000~1500pcs per hour, 2000~3000pcs per hour, 4000~6000pcs per hour, and so on .You only can tell me what capacity machine do you want,our professional engineer will design the most suitable machine for you!
Technical Parameters
|
Machine Model
|
FY-3*1
|
FY-4*1
|
FY-3*4
|
FY-4*4
|
FY-4*8
|
FY-5*8
|
FY-5*12
|
|
Capacity (pcs/h)
|
1000
|
1500
|
2000
|
2500
|
3000
|
5000
|
6000
|
|
Total Power (KW)
|
32
|
45
|
58
|
78
|
80
|
85
|
90
|
|
Paper Consumption (kg/h)
|
120
|
160
|
200
|
280
|
320
|
400
|
480
|
|
Water Consumption (kg/h)
|
300
|
380
|
450
|
560
|
650
|
750
|
900
|
|
Workshop Area (sq.m.)
|
45
|
45
|
80
|
80
|
100
|
100
|
120
|
Note:
1.More plates ,more less water use
2.Power means the main parts,not include dryer line
3.All fuel use proportion are calculated by 60%
4.single dryer line length 42-45 meters,double layer 22-25 meters, multi layer can save worshop area.
Production process
Detail images
ADVANTAGE OF RECYCLING EGG CARTON MAKING MACHINE
1. Raw material: Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get
2. Automation: Fully-automatic control
3. Quality standard: CE
4. 100% environmentally production process.
5. Engineers available to service machinery overseas.
Our Service
Pre-sales service:
1. Fast and professional reply to you about your questions for machine.
2. Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines.
3. Detailed and clearly explain to you when you come to our factory for visiting before contract.
In-sales service:
1. One-stop and customize service for you, all paper processing related machines are available from us.
2. 24 Hours online service, 7 Days one week support for you if any technical questions or problems about egg tray making machine.
After sales service:
1. Engineers overseas installation and training, all our engineers are rich experience for overseas work.
2. Guarantee you steady supply for the spare parts with the lower prices
Packing and Delivery
Packaging:
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tight plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Shipment:
1.Sea transportation is from Qingdao port or other ports.
2.The delivery time is decided by your needed machines or machine parts. But it also follows your needs.
Why Choose Us
Henan Fuyuan Machinery Manufacturing Co., Ltd
located in Zhengzhou City, Henan Province.Our factory is founded in 1984 with rich experience in paper making machine and egg tray making machinery. Our main products include: Egg Tray Machine,Facial Tissue Machine,Napkin Paper Machine,Toilet Paper Rewinding Machine, Kraft paper machine,Cultural Paper Machine and other Paper Processing Machinery. After 36 years of development, our company has developed into a large enterprise integrating scientific research, production and trading,our factory covers an area more than 33,000 square meters, construction area more than 16,000 square meters, existing staff more than 200 workers, including 5 senior engineers, 22 engineers, and more than 38 technical staff. We are committed to provide customers with a complete solution for paper making project and paper egg tray making production line,welcome the friends to visit us over the world.
FAQ
Q1: How long does it take to produce and install equipment?
A: Production time: 15-25 working days, depending on the model, or customers need to customize the mold, there may be a big difference
Installation time: no drying: 25-30 days, drying with 30-40 days
Q2: How much space is required for production?
A: Please kindly confirm the machine model you need, for the model confirming, I need to know what is the production capacity do you want, 1000 pcs per hour, 2000 pcs per hour, 3000-5000 pcs per hour or other requirement. After confirming the machine model, the area space will be sent to you accordingly.
Q3: What is the additives to combine those materials?
A: Paper and cartons are good material for producing egg tray ,no need to add other additives. The pulp is combined by paper and water.
Q4: How to operate and maintain the machine?
A: First, we will provide a professional and detailed user guide to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q5: Which kind of product can this machine make?
A: The machine can product the egg trays egg box, egg carton,fruit tray and wine tray and so on. If you want to produce other paper industrial packages, we can customize the mould per your requirement.
Q6: What voltage the machine can work normally ?
A: The machines can adapt the voltage 220v/380v.
