Quick Details
-
Model Number:
-

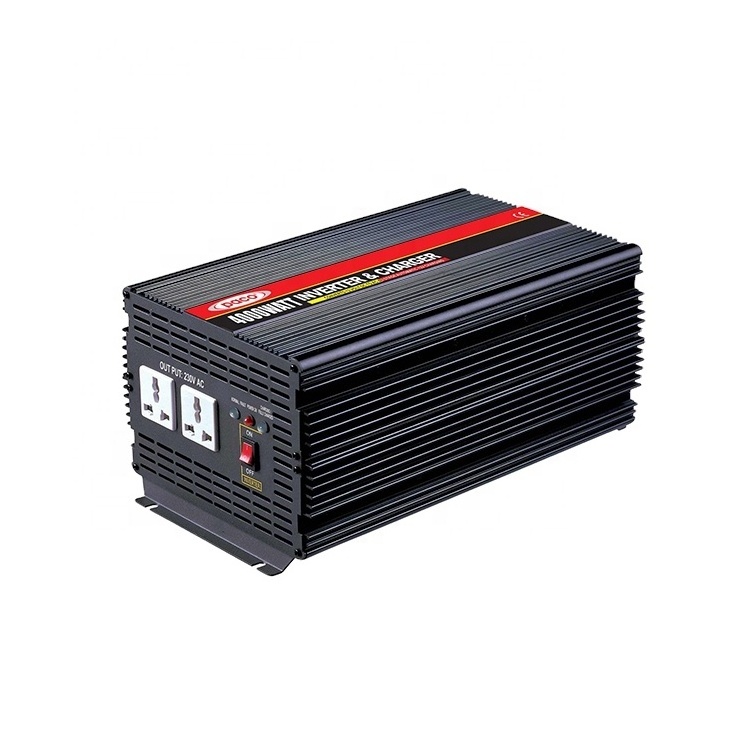

PIC4000-1220 Power Inverter with Charger
-
Output Frequency:
-
50Hz or 60Hz
-
Size:
-
510X210X156mm
-
Weight:
-
8.5kg
-
Certificate:
-
CE/CB/ISO
-
Output Power:
-
>1000KW
-
output:
-
220-240V AC
-
socket type:
-
Optional
-
cooling system:
-
Fan
-
low battery alarm:
-
Yes
-
shape:
-
Rugged
-
color:
-
White, black,red
-
trickle battery charger:
-
automotive power inverter
-
royal power inverter:
-
car battery power inverter
Quick Details
-
Output Current:
-
17.4A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PACO or OEM/ODM
-
Model Number:
-
PIC4000-1220 Power Inverter with Charger
-
Output Frequency:
-
50Hz or 60Hz
-
Size:
-
510X210X156mm
-
Weight:
-
8.5kg
-
Certificate:
-
CE/CB/ISO
-
Output Power:
-
>1000KW
-
output:
-
220-240V AC
-
socket type:
-
Optional
-
cooling system:
-
Fan
-
low battery alarm:
-
Yes
-
shape:
-
Rugged
-
color:
-
White, black,red
-
trickle battery charger:
-
automotive power inverter
-
royal power inverter:
-
car battery power inverter
Power Inverter with Charger
1. Small size and light weight with rugged surface materials, easily stored;
2. Green light indicates power on, red light indicates power off;
3. High efficiency with accurate voltage.
| Power Inverter with Charger | |||||
| P/No. | PIC2000-1220 | PIC3000-1220 | PIC4000-1220 | PIC5000-1220 | |
| INVERTER | DC input voltage (rated) | 12V,183A | 12V,275A | 12V,367A | 12V,458 |
| DC output voltage (range) | 10-15V | 10-15V | 10-15V | 10-15V | |
| Input standby current (12V DC, ±5%) | ≤0.7A | ≤0.75A | ≤0.8A | ≤0.9A | |
| AC output frequency | 230V/220V-240V/110V | ||||
| Output frequency | 50Hz or 60Hz | ||||
| Output regulation | ±5% intelligent Pwm | ||||
| Output power (continous watts) | 2000W, 8.7A | 3000W, 13.1A | 4000W, 17.4A | 5000W,21.8A | |
| Output power (peak watts) | 4000W | 6000W | 8000W | 10,000W | |
| Output waveform | Modified sine wave | ||||
| Low battery-voltage alarm (volts) | 10.5V±0.5V | ||||
| Low battery-voltage shutdown (volts) | 10.0V±0.5V | ||||
| Thermal shutdown | 65°C±5°C | ||||
| Efficiency | 85-90% | ||||
| Cooling fan | Automatic temperature controlled | ||||
| Overload | Shut down & alarm | ||||
| Battery polarity reverse | By fuse | ||||
| Output short | Output short circuit protection | ||||
| Replacement fuse | Standard auto blade fuse | ||||
| Fuse quantity & size | 12*25A | 18*25A | 24*25A | 30*25A | |
| Fuse location | Internal | Internal | Internal | Internal | |
| Connection cable | 25mm2/1100mm | 35mm2/1100mm | 50mm2/1100mm | 70mm2/1100mm | |
| CHARGER | Rated input | 230V/220V-240V/110V | |||
| Input frequency | 50Hz or 60Hz ±5% | ||||
| Input power | 2.65A | 2.75A | 2.85A | 2.95A | |
| Rated output | 12V DC., 20,000mA | ||||
| Minimum start voltage | 4.5V | ||||
| Current fuse rating ( internal ) | 250V AC., F3.15A | 250V AC., F3.15A | 250V AC., F3.15A | 250V AC., F3.15A | |
| Current fuse rating (external ) | 250V AC., T10.0A | ||||
| Fuse quantity & size | 5*20mm | ||||
| Type | 3 stage automatic | ||||
| Charge control | Bulk 20,000mA (up to 14.7V)/Absorption 14.4V/Float 13.8V | ||||
| Thermal protect ( fan ON) | 65°C±5°C | ||||
| Efficiency | App. 85% | ||||
| Battery type | For changing 12V lead acid batteries only | ||||
| Performance | Mic-processing switching mode | ||||
| Input short | Input short circuit protection | ||||
| Output short | Output short circuit protection | ||||
|
Output polarity reverse |
Output polarity reverse circuit protection | ||||
| Automatic Switch/Transfer time | AC line to inverter, inverter to AC line/transfer time 10ms | ||||
| Dimension (L*W*H ) | 525*242*76mm | 440*210*156mm | 510*210*156mm | ||
| Weight | 5.8KG | 7.2KG | 8.7KG | 9.5KG | |
FAQ:
l
-
If the inverter
which containsacharger, then can
I
use/span>
the
power inverter and charger (
PIC
)
the function of
invert
and charge
both at the same time
?
No.
If theinverter has acharging function,
it the switching
from the chargerto the invertercan be manuallycontrolled orautomatically controlled.In bothcontro
l
l
ing
;modes
, you cannooperatethe charger;and
the
inverter
at the same time
.
l
-
When the
power inverter and charger (PIC);
power
switch is in"
C
harge"
status
,
but the "Charge" LEDindicator does notshow
and
the fan
doesn’t run
at the same time?
This may be because
the
utility power
and the inverterpower plugis noproperly connected,or
a blown up fuse of
the inverter,
check the connection of the utility power supply and replace the fuse with a new one with same rating.
l - Why does the fan only operate sometimes?
Ligao inverters feature a temperature controlled automatic cooling fan that only operates when needed. This allows the inverter to run very quietly for most of the time. If the fan doesn’t work, it might be a loose contact of the fan cables to the main PCB or a defective fan or a failure PCB. You are advised to submit it to the service center.
Why choose us:
l - We have more than 20 years experiences in electrical area;
l - All of our products have ISO9001:2008/CE/CB/RoHS approval;
l - High quality and competitive price are our advantage;
l -Professional pre-sale and after sale service;
l - Any questions will be replied in 24 hours.
