Water products are multifaceted, which could be natural spring water, purified water, carbonated water, flavored water... What process can be used to prevent the forming of bromate in side it? How to deploy mechanical filling valves to keep water clean and contaminant free? How to achieve the maximum benefit with speed, accuracy and light weight bottles? Tings machine, the expert in liquid filling machine, will always provide you with the best solution for your products,w
ater plant specialized customization.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2000*150*450
-
Weight:
-
3000 KG
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
220/380V
-
Product name:
-
5 Gallon Water Filling Machine
-
Warranty:
-
1year
-
Color:
-
Silver
-
Application:
-
Water Industry
-
Function:
-
High Effieciency
-
Core Components:
-
Engine
-
Advantage:
-
High Stability
-
Speed:
-
200 Bph/hour
-
Feature:
-
High Efficiency Easy Operate
-
Usage:
-
Filling Capping Labeling Packaging
Quick Details
-
Machinery Capacity:
-
200BPH
-
Brand Name:
-
Tings
-
Year:
-
2024
-
Dimension(L*W*H):
-
2000*150*450
-
Weight:
-
3000 KG
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
220/380V
-
Product name:
-
5 Gallon Water Filling Machine
-
Warranty:
-
1year
-
Color:
-
Silver
-
Application:
-
Water Industry
-
Function:
-
High Effieciency
-
Core Components:
-
Engine
-
Advantage:
-
High Stability
-
Speed:
-
200 Bph/hour
-
Feature:
-
High Efficiency Easy Operate
-
Usage:
-
Filling Capping Labeling Packaging
Product Description

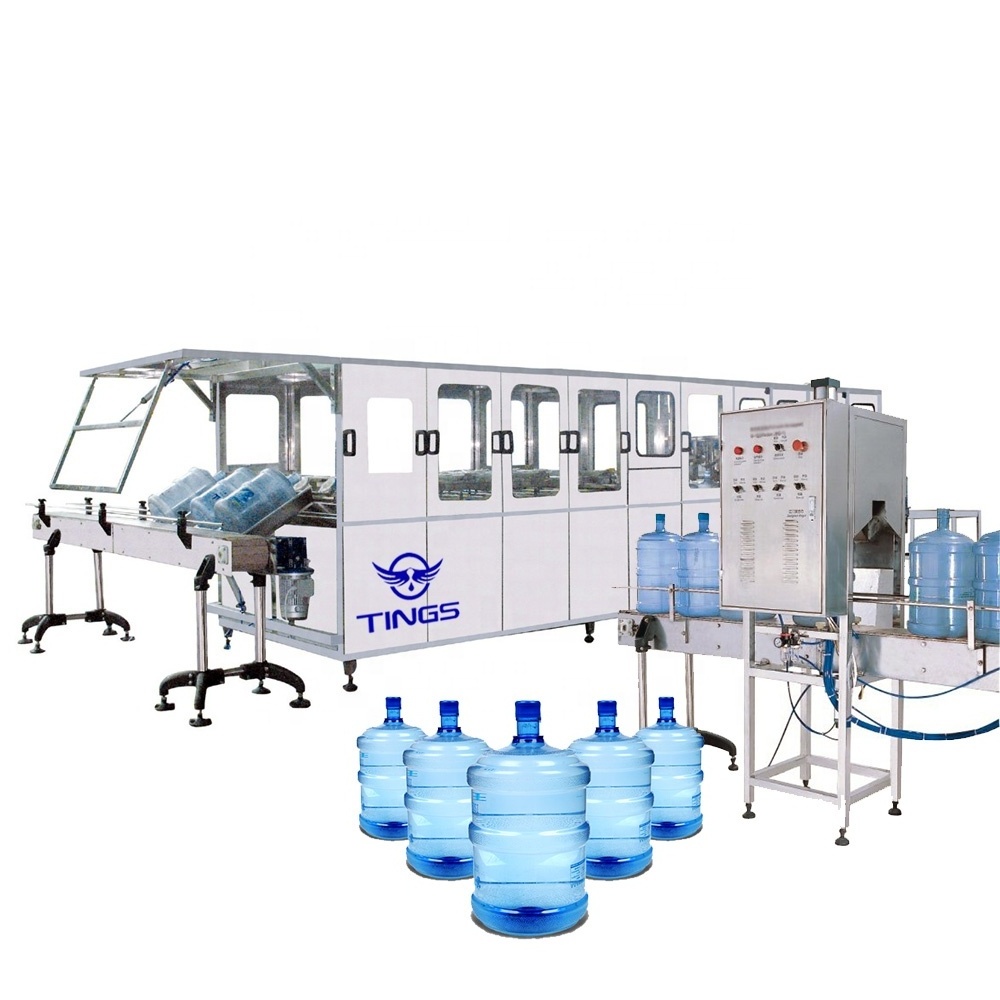

Tings 5 Gallon Bottled Water Filling Line:
Application:
This machine is a washing-filling-capping integrated machine, which is mainly used for 5 Gallon bottled water filling process. It is designed for shortening the contact time between drink material and outside, so as to improve the sanitation condition of the water product and increase the economy benefit.
Features:
It is designed with automatic air conveying structure which makes the conveying of the bottles more convenient, faster and easier.
|
Model No.
|
XG-200
|
|
Machine Type
|
Semi Automatic
|
|
Bottle Type
|
5 Gallon Bottle
|
|
Capacity
|
200BPH
|
|
Washing Station
|
4X2
|
|
Filling Station
|
2
|
|
Capping Station
|
1
|
|
Certificates
|
CE / SGS / ISO 9001
|
Advantage:
1. Safe contact between water and machine:
We use national standard stainless steel 304/316, Nickel content ≥8%.
2. High effeciency: 30 % reduction in changeover and maintenance downtime
3. Sustainable solution: servomotors reduce power consumption
4. Sanitary improved by liquid volume control and non-contact filling
5. Automatic bottle replacement improves run time
2. High effeciency: 30 % reduction in changeover and maintenance downtime
3. Sustainable solution: servomotors reduce power consumption
4. Sanitary improved by liquid volume control and non-contact filling
5. Automatic bottle replacement improves run time
Machine Details
Automatic filling machine
Full Automatic 5 Gallon water filling machine, save time, save labor cost, and save power.
More models with different capacities:
|
No.
|
Model No.
|
Capacity
|
Washing Station
|
Filling Station
|
capping Station
|
|
1
|
XG-100
|
100BPH
|
3X1
|
1
|
1
|
|
2
|
XG-200
|
200BPH
|
4X2
|
2
|
1
|
|
3
|
XG-250
|
250BPH
|
4X2
|
2
|
1
|
|
4
|
XG-300
|
300BPH
|
6X2
|
2
|
1
|
|
5
|
XG-450
|
450BPH
|
6X3
|
3
|
1
|
|
6
|
XG-600
|
600BPH
|
8X4
|
4
|
1
|
|
7
|
XG-900
|
900BPH
|
10X6
|
6
|
1
|
|
8
|
XG-1200
|
1200BPH
|
13X6
|
6
|
1
|
Automatic Decapper
1. Adopting PLC and pneumatic cylinder, it can work in line. cap-removing head does not damage the cap and bottle mouth at all. So cap can be re-used. Capacity is adjustable. It is compatible with a wide range of bottle height and cap diameter.
2. With the barrel controlled by photoelectrical signal. Under the condition that no barrel or the outlet of cap-removing machine is jammed, the barrel will be transferred to the lower part of the cap-removing head by transferring belt for automatic positioning.
3. The cap-removing head consists of four pieces of arch covers. The head is open and pressed on the opening of the barrel. With
four pieces of arch covers tightened and locking the edge of the bucket opening in a fast way. After that, the barrel is raised
and the cap is removed. Then it is released automatically, with cap blown to the collective sink by air.
4. The whole process is controlled by computer.
2. With the barrel controlled by photoelectrical signal. Under the condition that no barrel or the outlet of cap-removing machine is jammed, the barrel will be transferred to the lower part of the cap-removing head by transferring belt for automatic positioning.
3. The cap-removing head consists of four pieces of arch covers. The head is open and pressed on the opening of the barrel. With
four pieces of arch covers tightened and locking the edge of the bucket opening in a fast way. After that, the barrel is raised
and the cap is removed. Then it is released automatically, with cap blown to the collective sink by air.
4. The whole process is controlled by computer.
Bottle Loading Machine
This machine is used to wash the outside parts of the bottle.
Bottle Loading Machine
1. It is controlled by PLC. The sensors feedback the signals to PLC. Under the condition of wrong-positioned bottles, it will stop
automatically. Then it will run again when the bottles in the right positioning.
2. the chain conveyor transfer the bottles go to the feeder,the sensors feedback to the PLC ,then air cylinder acts, the bottles
go in to the filling machine automatically.
3. The bottle feeding process will not damage the bottle edge at all.
automatically. Then it will run again when the bottles in the right positioning.
2. the chain conveyor transfer the bottles go to the feeder,the sensors feedback to the PLC ,then air cylinder acts, the bottles
go in to the filling machine automatically.
3. The bottle feeding process will not damage the bottle edge at all.
Lamp Inspecting Machine
This machine is used to
to inspect if there's any inpurity in the filled bottle.
Steam Shinking and Labeling Machine
Labeling by Steam heating and shinking
One-station service
We are factory. We can provide all necessary related equipments for bottled water filling line: Water treatment system, bottle blow molding machine, filling and capping machine, labeling machine, code injecting machine and shink warping machine for packing, etc.
Solution Support
We will provide you with the most suitable solution, accroding to your requirements.
Bottle Design
We can design the bottle according to size, style or sample you provide.
Layout of the equipments
Drawing for the equipment layout can be provided accroding to your plant layout.
