Quick Details
-
Brand Name:
-
CJLIFT
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Overall Dimensions:
-
2502x1170x2070mm
-
Weight (KG):
-
4270 kg
-
Product Name:
-

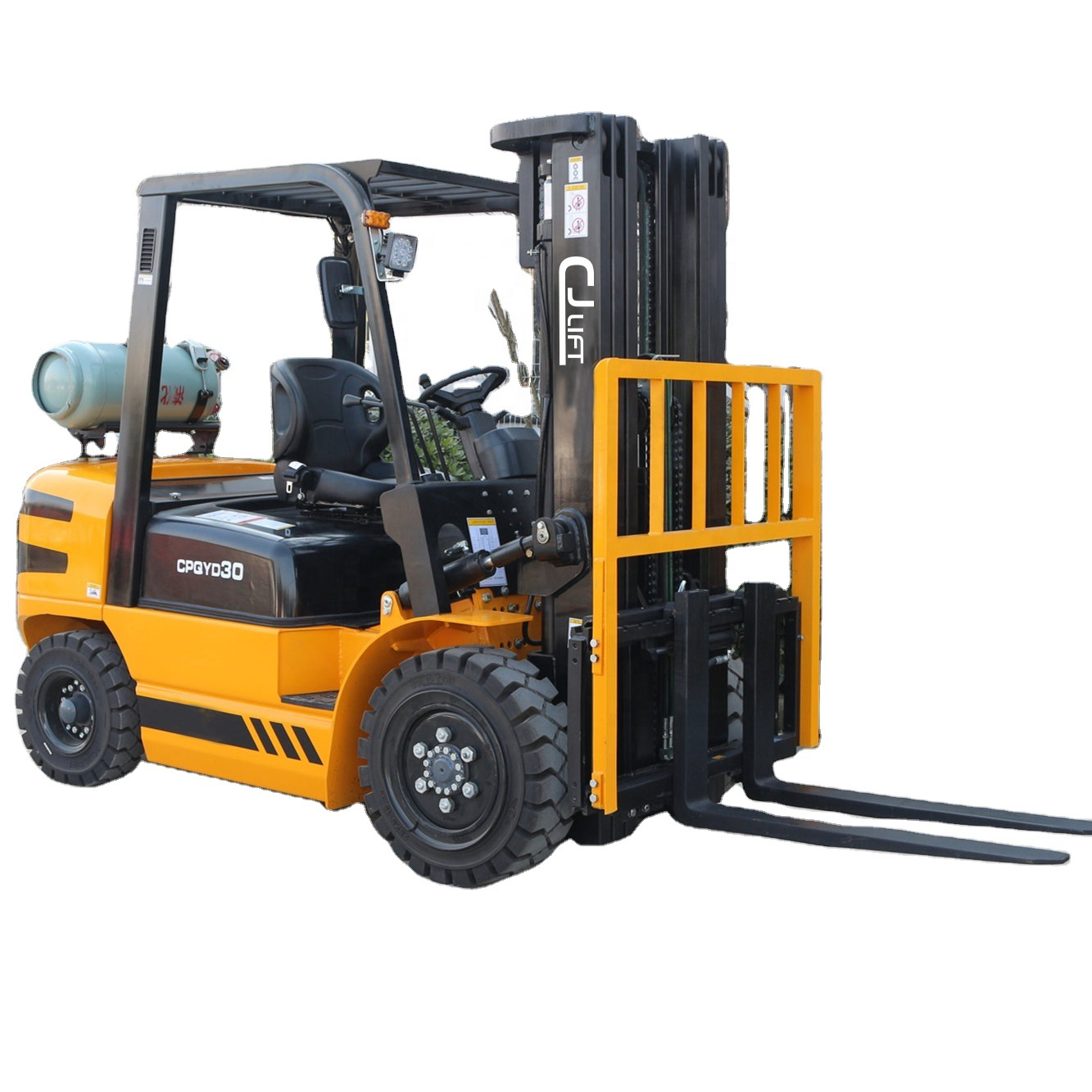

3Ton Forklift LPG gasoline
-
Brand:
-
CJLIFT
-
Loading Capacity:
-
3000kg
-
Max. Lift height of fork:
-
3000mm-6000mm
-
Power type:
-
LPG/Gasoline
-
Load Center:
-
500mm
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
-
Engine model:
-
K25
Quick Details
-
Min. Lifting Height:
-
3000mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
CJLIFT
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Overall Dimensions:
-
2502x1170x2070mm
-
Weight (KG):
-
4270 kg
-
Product Name:
-
3Ton Forklift LPG gasoline
-
Brand:
-
CJLIFT
-
Loading Capacity:
-
3000kg
-
Max. Lift height of fork:
-
3000mm-6000mm
-
Power type:
-
LPG/Gasoline
-
Load Center:
-
500mm
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
-
Engine model:
-
K25
Features
* With advanced technology and design
* With advanced technology and design
* Equipped with Chinese powerful and reliable engines with excellent environmental performance
* Original imported Nissan and GM engines are optional
* Using American IMPCO gas system which is more reliable
* Equipped with OPS or ORS seat and brake switch to prevent incorrect operation
* Integrated central control box the reliability of electric system
* Ergonomical design ensures best operation
* Energy-saving hydraulic system decreases fuel consumption
* High-quality hydraulic hoses, no oil leakage
* Wide-view mast design improves the productivity and safety
* Chinese top quality steel for lifting mast and frame
Product Paramenters
|
The specification of LPG/Gasoline forklift 1.5ton 2ton 2.5ton 3ton 3.5ton 4ton
|
|
|
|
|
|
|
|
|||||||
|
Main Information
|
|
|
|
|
|
|
|
|||||||
|
Manufacturer
|
|
CJLIFT
|
CJLIFT
|
CJLIFT
|
CJLIFT
|
CJLIFT
|
CJLIFT
|
|||||||
|
Model
|
|
CPQYD15
|
CPQYD20
|
CPQYD25
|
CPQYD30
|
CPQYD35
|
CPQYD40
|
|||||||
|
Power Type
|
|
LPG/Gasoline
|
LPG/Gasoline
|
LPG/Gasoline
|
LPG/Gasoline
|
LPG/Gasoline
|
LPG/Gasoline
|
|||||||
|
Rated Capacity
|
kg
|
1500
|
2000
|
2500
|
3000
|
3500
|
4000
|
|||||||
|
Load center
|
mm
|
500
|
500
|
500
|
500
|
500
|
500
|
|||||||
|
Operator type
|
|
Drive in seat
|
Drive in seat
|
Drive in seat
|
Drive in seat
|
Drive in seat
|
Drive in seat
|
|||||||
|
Size
|
|
|
|
|
|
|
|
|||||||
|
Max. lift height of mast with Load-backrest
|
mm
|
4030
|
4030
|
4030
|
4262
|
4262
|
4275
|
|||||||
|
Max. lift height of fork (standard)
|
mm
|
3000
|
3000
|
3000
|
3000
|
3000
|
3000
|
|||||||
|
Height of mast (standard)
|
mm
|
1985
|
2000
|
2000
|
2065
|
2180
|
2150
|
|||||||
|
Free lift height (standard)
|
mm
|
125
|
170
|
170
|
160
|
170
|
150
|
|||||||
|
Height of Load-backrest
|
mm
|
1010
|
1010
|
1010
|
1240
|
1235
|
1235
|
|||||||
|
Distance from seat to overhead guard
|
mm
|
1015
|
1000
|
1000
|
1000
|
1000
|
1000
|
|||||||
|
Overhead Guard Height
|
mm
|
2070
|
2070
|
2070
|
2090
|
2090
|
2105
|
|||||||
|
Overall length with/without fork
|
mm
|
2230
|
2502
|
2576
|
2682
|
2693
|
2895
|
|||||||
|
Front overhang
|
mm
|
420
|
477
|
477
|
479
|
498
|
500
|
|||||||
|
Rear overhang
|
mm
|
424
|
420
|
494
|
495
|
495
|
495
|
|||||||
|
Wheel base
|
mm
|
1400
|
1600
|
1600
|
1700
|
1700
|
1900
|
|||||||
|
The height of traction pin
|
mm
|
230
|
290
|
290
|
310
|
310
|
330
|
|||||||
|
Min. ground clearance
|
mm
|
100
|
110
|
110
|
135
|
135
|
130
|
|||||||
|
Overall width
|
mm
|
1070
|
1170
|
1170
|
1225
|
1225
|
1410
|
|||||||
|
The distance (outside)
|
mm
|
910/125
|
1024/200
|
1024/200
|
1060/250
|
1060/250
|
1290/260
|
|||||||
|
Tread (front/rear)
|
mm
|
890/920
|
970/970
|
970/970
|
1000/970
|
1000/970
|
1160/1065
|
|||||||
|
Min. Turning radius (outside)
|
mm
|
2060
|
2170
|
2240
|
2400
|
2420
|
2700
|
|||||||
|
Min. Turning radius (inside)
|
mm
|
130
|
160
|
160
|
200
|
200
|
230
|
|||||||
|
Min. Intersecting aisle
|
mm
|
1865
|
2200
|
2280
|
2380
|
2400
|
2685
|
|||||||
|
Mast tilt angle
|
deg
|
6/12
|
6/12
|
6/12
|
6/12
|
6/12
|
6/12
|
|||||||
|
Fork size
|
mm
|
920x100x35
|
920x100x45
|
1070x100x45
|
1070x125x45
|
1070x125x50
|
1070x130x50
|
|||||||
Q: How do you guarantee the quality of your forklift and equipment?
A:Our forklifts and equipment are with advanced technology design and we assemble it with high quality and famous brand parts. Strictly inspection before delivery
Q:How to solve and maintain once some problems happened?
A:Our engineer and sales team offer 24hrs full time service. We can give the best suitable solution to solve your problems as soon as possible. At the same time you also can ask your operators to come to our site for learning or we train you on your site
Q:What will benefit us if we become your exclusive distributor in promissory area?
A:We can invest professional exhibition supporting and give potential clients information from B2B website to you for developing. We will provide you with the newest information and development tendency in the fields. A abundant bonus will be offered if you can finish target sales volume.
Q: Is customized solution available?
A: Yes, we can provide different customized solution.
Q: Can you provide OEM service?
A: Yes.
Q:How long is the warranty of your forklift?
A:One year or 2000hrs which come first
