Quick Details
-
Applicable Industries:
-
Packing Machinery, Injection Mold, Industrial Heating Element
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BRIGHT
-
Dimension(L*W*H):
-
16*16*740mm/Customized
-
Weight:
-
0.6 KG
-
Working Temperature Range:
-
0 - 700 ℃
-
Core Components:
-
Heating Wire
-
Item Name:
-
Cartridge Heater
-
Tube Dimension:
-
6-30mm
-
Tube Length:
-
30-2000mm
-
Standard Cold Zone:
-
5-10mm
-
Insulation resistance (cold):
-
≥ 500 MΩ
-
Thermocouple Location:
-
type J / K / Ground wire
-
Wattage Tolerance:
-
+5%, -10%
-
Resistance tolerance:
-
+10%, -5%
-
Resistance heating wire:
-
NiCr 80/20 wire
Quick Details
-
Type:
-
Cartridge Heater
-
Power Source:
-
Electric
-
Voltage:
-
110V/Customized, 12-480V or customized
-
Applicable Industries:
-
Packing Machinery, Injection Mold, Industrial Heating Element
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BRIGHT
-
Dimension(L*W*H):
-
16*16*740mm/Customized
-
Weight:
-
0.6 KG
-
Working Temperature Range:
-
0 - 700 ℃
-
Core Components:
-
Heating Wire
-
Item Name:
-
Cartridge Heater
-
Tube Dimension:
-
6-30mm
-
Tube Length:
-
30-2000mm
-
Standard Cold Zone:
-
5-10mm
-
Insulation resistance (cold):
-
≥ 500 MΩ
-
Thermocouple Location:
-
type J / K / Ground wire
-
Wattage Tolerance:
-
+5%, -10%
-
Resistance tolerance:
-
+10%, -5%
-
Resistance heating wire:
-
NiCr 80/20 wire

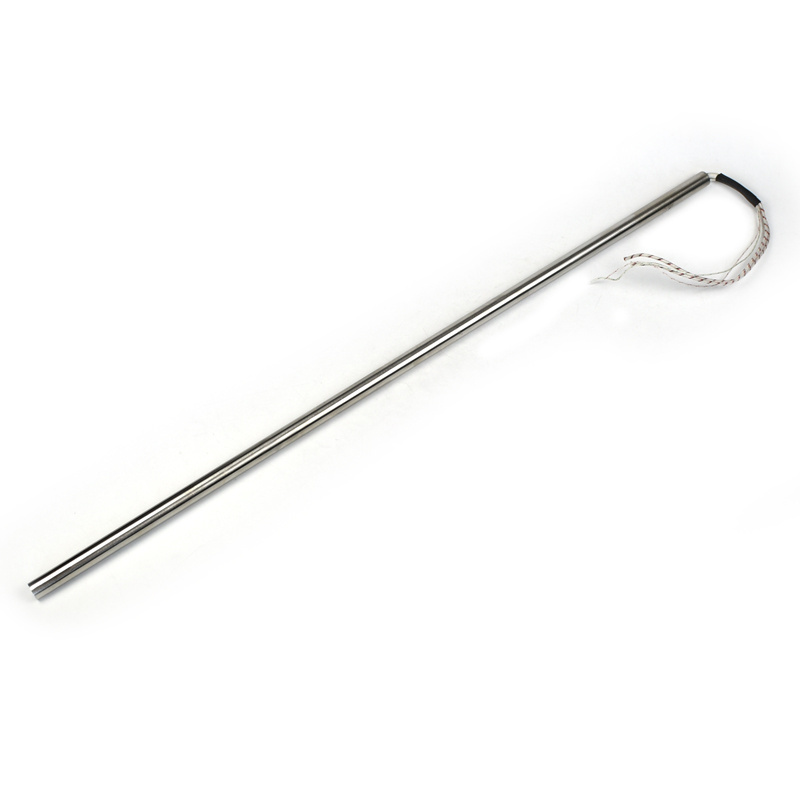

Products Description
|
Product Name
|
Cartridge Heater
|
|
Voltage
|
12-480V or customized
|
|
Max temperature
|
800c(1472F)
|
|
Tube Dimension
|
6-30mm
|
|
Tube Length
|
30-2000mm
|
|
Resistance heating wire
|
NiCr 80/20 wire
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Resistance tolerance
|
+10%, -5%
|
|
Length tolerance
|
±1 mm
|
|
Diameter tolerance
|
± 0.01mm
|
|
Standard Cold Zone
|
5-10mm
|
|
Insulation resistance (cold)
|
≥ 500 MΩ
|
|
Maximum leakage current (cold)
|
≤ 0.5 mA
|
|
Thermocouple Location
|
type J / K / Ground wire
|
|
Packing
|
Carton, wooden case
|
Product Use
Cartridge heater has the characteristics of simple structure, high mechanical strength, high heat consumption rate, safety and reliability, simple installation, long service life, no pollution, and low price. It is commonly used in mold heating.
Our Advantages
Product Advantage
☆Cartridge heater saves electric energy, and is safe to use. It can be bent into various styles, light, and convenient for disassembly and assembly.
☆The diameter of cartridge heater is small, which can reach 3-25MM.
☆High power, 2-5 times the power of a normal electric heating tube.
☆The length of the cartridge heater is unlimited, and can reach 20-2000MM.
Our Advantage
☆Factory direct sales, specifications and sizes can be customized according to drawings.
☆Products use high-quality raw materials to ensure product quality.
☆Product factory professional inspection.
☆Support professional after-sales service to solve customers' worries.
☆Products use high-quality raw materials to ensure product quality.
☆Product factory professional inspection.
☆Support professional after-sales service to solve customers' worries.
Packaging and Delivery
Packaging
Brown box with shock-proof sponge. Custom package is available, but the price need to be negotiated.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
