We are the sole agent of these new material in China, in the future, we will supply these materials to more and more customers.
- Product Details
- {{item.text}}
Quick Details
-
display mode:
-
TFT
-
Resolution:
-
800X800
-
interface:
-
MIPI/SPI
-
Touch panel:
-
Capacitive touch panel
-
viewing direction:
-
wide view angle/ ips
-
Work Temperature:
-
-20℃~70℃
-
Brightness:
-
350 cd/m2
-
outline dimension:
-
38.83(V)*38.21(W)*0.68(T)
-
Driving IC:
-
ILI9881C
-
Display Size:
-
3.4
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingtech/ELSUN
-
shape:
-
pure round
-
display mode:
-
TFT
-
Resolution:
-
800X800
-
interface:
-
MIPI/SPI
-
Touch panel:
-
Capacitive touch panel
-
viewing direction:
-
wide view angle/ ips
-
Work Temperature:
-
-20℃~70℃
-
Brightness:
-
350 cd/m2
-
outline dimension:
-
38.83(V)*38.21(W)*0.68(T)
-
Driving IC:
-
ILI9881C
-
Display Size:
-
3.4
Super Surprise
Only one film Can change your screen display and image defects
First:The TVA film（
Improve viewing angle and CR ratio
）
Seamless Effect Adhesive
Product Description
|
Item
|

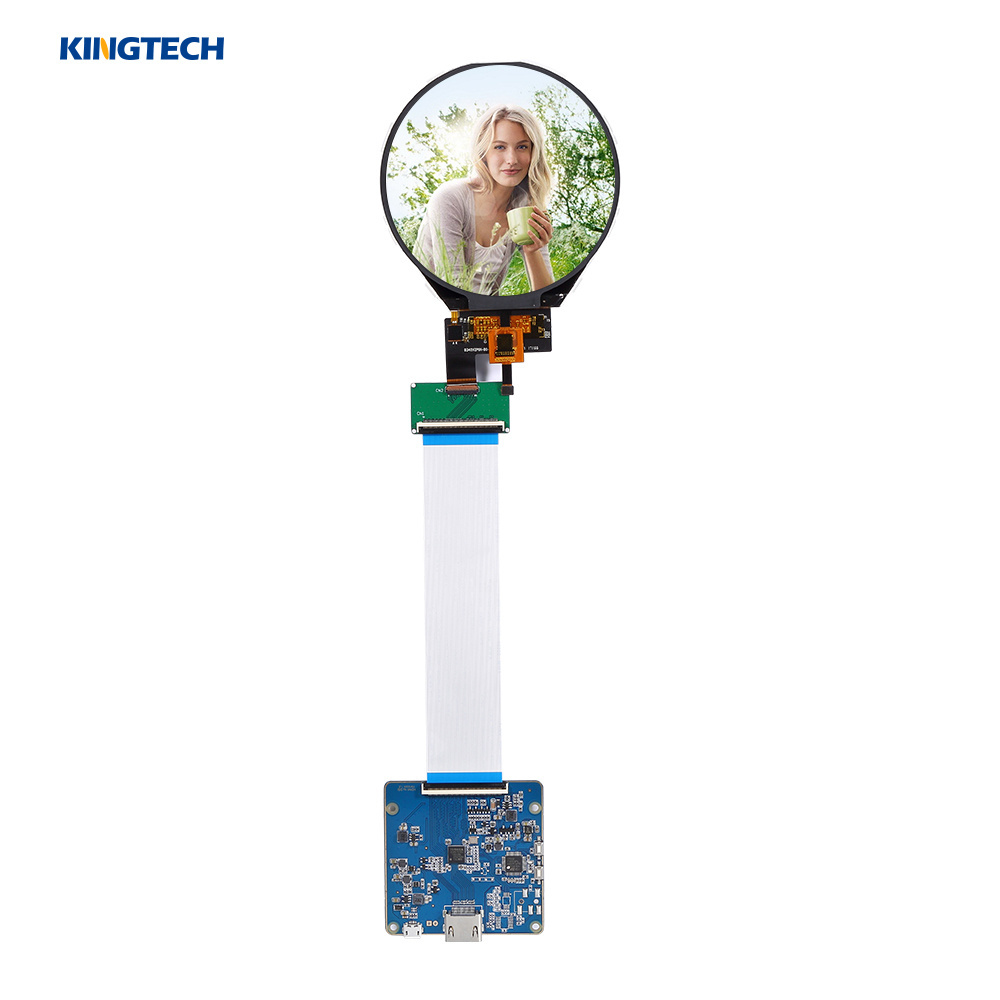

3.4 inch round TFT module display
|
|
Model No
|
PV03400AR39A
|
|
Resolution
|
800*800
|
|
Outline Dimension
|
99.0(W)*96.6(H)*3.98(T)
|
|
Active Area(mm)
|
87.6(W)*87.6(H)
|
|
Interface
|
MIPI 3 lane
|
|
Viewing Angle
|
All
|
|
Driving IC
|
ILI9881C
|
|
Display Mode
|
Transmission / Normally Black / SFT
|
|
FPC type
|
ZIF
|
|
PIN
|
39
|
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|
|
Brightness
|
350nits
|
|
Touch panel
|
Capacitive touch panel
|
|
Board
|
HD-MI board
|
More Customized Products
Other product products, please click below Model No to review product details
|
Size and Feature
|
Model No
|
Resolution
|
Outline(mm)
|
Brightness
|
Viewing angle
|
Storage Temp
|
|
1.39" round Amoled
|
454*454
|
38.83*38.21*0.68
|
450
|
All
|
-30~70
|
|
|
2.4" ips lcd
|
240*320
|
60.4*42.72*2.21
|
200
|
All
|
-30~80
|
|
|
2.47'' round LCD
|
480*480
|
69.19*71.74*2.45
|
350
|
All
|
-30~80
|
|
|
2.8" ips LCD
|
240*320
|
50.0*69.2*2.5
|
400
|
All
|
-30~80
|
|
|
3.34'' round LCD
|
320*320
|
66.20*69.30*2.66
|
600
|
12 O'Clock
|
-30~80
|
|
|
3.4'' round LCD
|
800*800
|
99.0*96.6*3.98
|
350
|
All
|
-30~80
|
|
|
3.5" 320x240 LCD
|
320*240
|
76.90*63.90*3.27
|
290
|
12 O'Clock
|
-30~80
|
|
|
3.5" Transflective LCD
|
480*640
|
63*85*2.9
|
300
|
All
|
-30~80
|
|
|
3.5" IPS LCD
|
320*480
|
84.18*53.76*3.30
|
230
|
All
|
-30~80
|
|
|
4.3" 800 nits LCD
|
480*272
|
105.4*67.15*2.95
|
800
|
12 O'clock
|
-30~80
|
|
|
4.3" 280 nits LCD
|
480*272
|
105.5*67.2*4.15
|
280
|
12 O'Clock
|
-30~80
|
|
|
4.3" 500 nits IPS LCD
|
480*800
|
104.75*61.46*2.20
|
500
|
All
|
-30~80
|
|
|
4.3" 300 nits IPS LCD
|
480*800
|
105.8*63.3*3.6
|
300
|
All
|
-30~80
|
|
|
4.82'' IPS LCD
|
480*1120
|
122.12*51.26*1.9
|
280
|
All
|
-40~60
|
|
|
5.0" 500 nits LCD
|
800*480
|
120.7*75.8*2.9
|
500
|
12 O'Clock
|
-30~80
|
|
|
7"800x480 300nis lcd
|
800*480
|
164.9*100*5.7
|
300
|
12 O'clock
|
-30~80
|
|
|
7"800X480 400nis lcd
|
800*480
|
164.9*100*5.7
|
400
|
12 O'Clock
|
-30~80
|
|
|
7"1280X800 IPS LCD
|
1280*800
|
161.0*107.0*3.35
|
400
|
All
|
-30~80
|
More Customized Products
|
Size and Feature
|
Model No
|
Resolution
|
Interface
|
Brightness
|
Viewing angle
|
With /Without TP
|
|
1.39" OLED Round with Board
|
454*454
|
MIPI/SPI
|
350
|
All
|
With TP
|
|
|
2.0" Sunlight readable IPS
|
240*320
|
4SPI+16-bit RGB interface
|
1000
|
All
|
Without TP
|
|
|
2.4"
|
240*320
|
8,9,16,18-bits MPU / 6,16,18-bits RGB / 3,4
|
180
|
6 O'clock
|
With TP
|
|
|
2.4" Sunlight Readable IPS
|
240*320
|
16-bits MPU
|
200
|
All
|
With TP
|
|
|
2.8" IPS
|
240*320
|
i80-system 8/16/18-bit MCU interface
|
400
|
All
|
With TP
|
|
|
2.8" IPS
|
240*320
|
4-lines_8bit / 3-lines_9bit SPI
|
200
|
12 O'clock
|
With TP
|
|
|
3.2"
|
240*320
|
MPU 8 / 16 bit
|
160
|
6 O'clock
|
Without TP
|
|
|
3.34'' Round
|
320*320
|
MIPI
|
600
|
12 O'Clock
|
Without TP
|
|
|
3.4'' Round With Driver Board
|
800*800
|
MIPI 3 lane
|
350
|
All
|
With TP
|
|
|
3.5"
|
320*240
|
24BIT RGB+SPI
|
290
|
12 O'Clock
|
With TP
|
|
|
3.5" IPS
|
320*480
|
MPU 16-bit
|
230
|
All
|
With TP
|
|
|
3.5" Sunlight Readable IPS
|
320*480
|
16-Bit MCU
|
1000
|
All
|
With TP
|
|
|
3.5" Transflective Sunlight readable
|
480*640
|
3-wire SPI + RGB interface
|
120
|
All
|
Without TP
|
|
|
4.3"
|
480*272
|
24 BITS RGB
|
280
|
12 O'Clock
|
With TP
|
|
|
4.3" IPS
|
480*800
|
3-wire/4-wire SPI + RGB interface
|
300
|
All
|
With TP
|
|
|
4.3" Sunlight readable
|
480*272
|
24-Bit RGB 8-Bit RGB
|
800
|
12 O'clock
|
With TP
|
|
|
4.82'' Bar type
|
480*1120
|
MIPI DSI
|
280
|
All
|
With TP
|
|
|
5.0" OLED
|
1080*1920
|
MIPI-4 Lanes
|
380
|
All
|
With TP
|
|
|
5.0" Sunlight Readable With Driver Board
|
800*480
|
24-bit Parallel RGB
|
500
|
12 O'Clock
|
With TP
|
|
|
7.0" IPS
|
800*1280
|
MIPI-4 Lanes
|
500
|
All
|
Without TP
|
|
|
7.0" IPS With Driver Board
|
1024*600
|
TTL(RGB interface)
|
450
|
All
|
With TP
|
|
|
7.0" Sunlight readable With Driver Board
|
800*480
|
24-bit Parallel RGB Interface
|
400
|
12 O'Clock
|
With TP
|
|
|
7.0" Sunlight readable With Driver Board
|
800*480
|
24-bit Parallel RGB Interface
|
300
|
12 O'clock
|
With TP
|
|
|
7.0" Sunlight Readable With Driver Board
|
1024*600
|
LVDS
|
500
|
12 O'Clock
|
With TP
|
|
|
8.0" IPS
|
800*1280
|
MIPI 4 LANE
|
380
|
All
|
With TP
|
|
|
8.0" IPS
|
1200*1920
|
MIPI
|
500
|
All
|
With TP
|
|
|
10.1" IPS With Driver Board
|
1280*800
|
LVDS Interface
|
350
|
All
|
With TP
|
|
|
10.1" IPS
|
800*1280
|
MIPI VIDEO MODE
|
330
|
All
|
With TP
|
|
|
10.1" IPS
|
1200*1920
|
MIPI
|
500
|
All
|
With TP
|
|
|
10.1" IPS With Driver Board
|
1280*800
|
LVDS Interface
|
500
|
All
|
With TP
|
|
|
10.1" Sunlight Readable IPS
|
1280*800
|
LVDS Interface
|
1000
|
All
|
With TP
|
|
|
10.4'' Sunlight readable Bar Type With Driver Board
|
1024*100
|
TTL(RGB interface)
|
950
|
All
|
With TP
|
