Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Jingsun
-
Model Number:
-
JAM60S-330
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1657*996*35mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Front Glass:
-
3.2mm Tempered Glass
-
Keyword:
-
Monocrystaline Solar Panel
-
Cell Type:
-
Monocrystal Silicon
-
Application:
-
Solar Power System
-
Weight:
-
18.4kg
-
No. of cells:
-
60(6*10)Cell
-
Busbar:
-
4BB/5BB
-
OEM Order:
-
Acceptable
-
Product name:
-

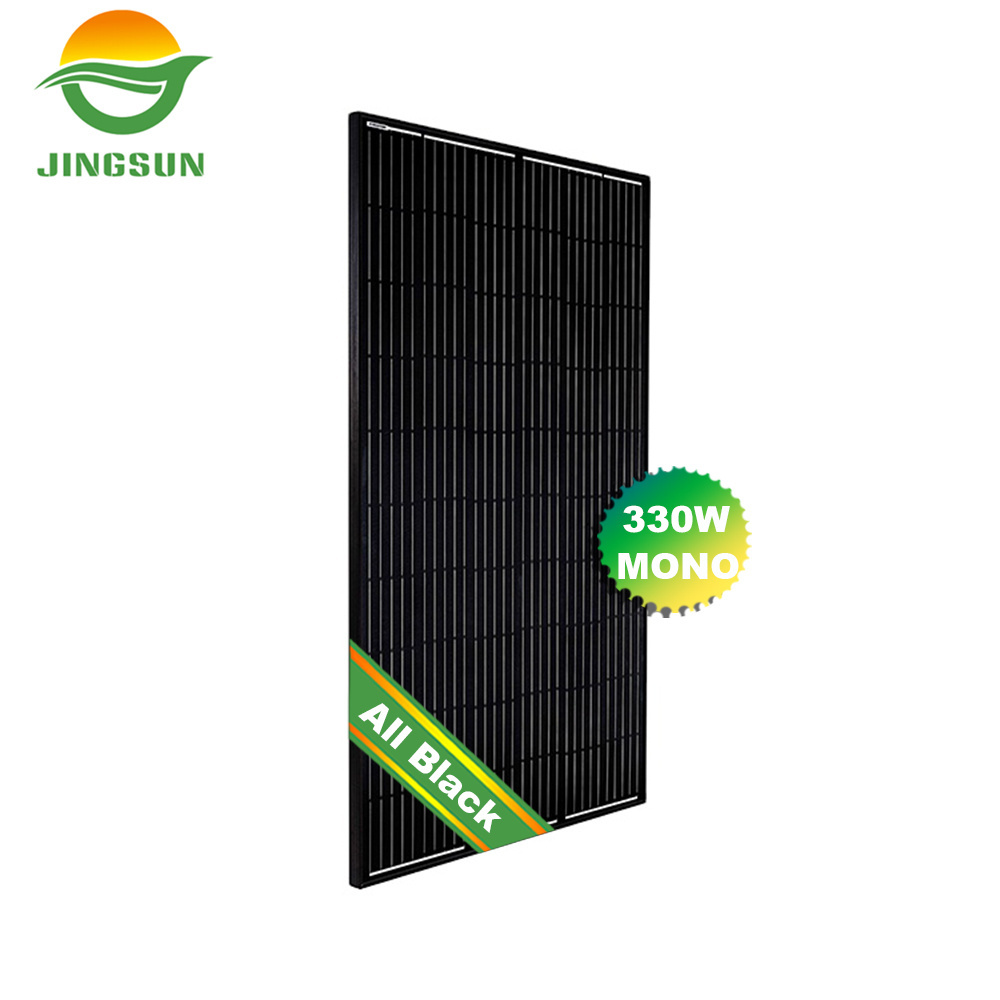

high performance 310w 320w 330w monocrystalline Solar panel
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
20%
-
Warranty:
-
25 years
-
Brand Name:
-
Jingsun
-
Model Number:
-
JAM60S-330
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1657*996*35mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Front Glass:
-
3.2mm Tempered Glass
-
Keyword:
-
Monocrystaline Solar Panel
-
Cell Type:
-
Monocrystal Silicon
-
Application:
-
Solar Power System
-
Weight:
-
18.4kg
-
No. of cells:
-
60(6*10)Cell
-
Busbar:
-
4BB/5BB
-
OEM Order:
-
Acceptable
-
Product name:
-
high performance 310w 320w 330w monocrystalline Solar panel
Products Description
|
Model
|
JAM60S-310
|
JAM60S-315
|
JAM60S-320
|
JAM60S-325
|
JAM60S-330
|
||||
|
Rated Maximum Power at STC[W]
|
310
|
315
|
320
|
325
|
330
|
||||
|
Maximum Power Voltage(Vmp)[V]
|
32.60
|
32.89
|
33.17
|
33.44
|
33.75
|
||||
|
Maximum Power Current (Imp)[A]
|
9.51
|
9.58
|
9.65
|
9.72
|
9.78
|
||||
|
Open Circuit Voltage ( Voc)[V]
|
40.30
|
40.53
|
40.78
|
41.04
|
41.30
|
||||
|
Short Circuit Current (Isc)[A]
|
10.04
|
10.11
|
10.18
|
10.25
|
10.32
|
||||
|
Module Efficiency[%]
|
18.8
|
19.1
|
19.4
|
19.7
|
20.0
|
||||
|
Power Tolerance
|
0~+3%
|
0~+3%
|
0~+3%
|
0~+3%
|
0~+3%
|
||||
Other Products
off-grid system
The off-grid photovoltaic system is generally composed of a photovoltaic square array composed of solar cell components, a solar charge and discharge controller, a battery pack, an off-grid inverter, a DC load, and an AC load.
ON grid solar system
Photovoltaic grid-connected power generation system converts light energy into electrical energy, and does not go through storage battery energy, directly through gridconnected inverter to send electrical energy to the grid.
