Quick Details
-
LPM Application:
-
Flat Cable, Connectors, LED, Micro Switch,
-
LPM Size:
-
110 * 70 * 157 cm
-
LPM Weight:
-
200 kg
-
LPM Packing:
-
Styrofoam inside, Carton outside
-
LPM Color:
-
Depends
-
LPM Engine Type:
-
Air Pressure Power
-
LPM Place of Origin:
-
China
-
LPM OEM Service:
-
Available
-
LPM Feature:
-
For mass production
-
LPM Advantage:
-
Increase efficiency of production
Quick Details
-
Place of Origin:
-
Guizhou, China
-
Brand Name:
-
Lamieux
-
Weight (KG):
-
200
-
LPM Application:
-
Flat Cable, Connectors, LED, Micro Switch,
-
LPM Size:
-
110 * 70 * 157 cm
-
LPM Weight:
-
200 kg
-
LPM Packing:
-
Styrofoam inside, Carton outside
-
LPM Color:
-
Depends
-
LPM Engine Type:
-
Air Pressure Power
-
LPM Place of Origin:
-
China
-
LPM OEM Service:
-
Available
-
LPM Feature:
-
For mass production
-
LPM Advantage:
-
Increase efficiency of production
Products Description
Range of Application: For mass production, single station
Feature：
1. Vertical or Horizontal LPM injection machine.
2. 7 Liters melting system.
3. Three position temperature control system (tank, hose, plastic guns).
4. Melting system is changeable to LM2000S extruder system in order to control material and better injection performance.
5. Timing automatic heating devices, for on-site personnel work operation on specific time.
6. Machine with safety design to prevent over heat and error operation automatically.
7. Work safety protection using two-hands switch and optical curtain protection,
and collocation emergency stop to prevent any sudden situation.

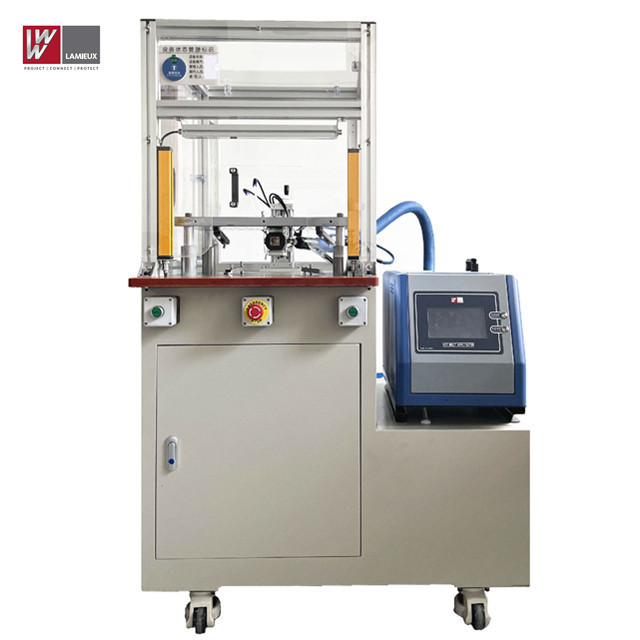

Machine Size
Vertical &
Horizontal
Injection: LM2500VW
Parameter
|
Item
|
|
Specification
|
|
|
|||
|
Tank Capacity
|
|
3 Liter
|
|
|
|||
|
Max. Melting Rate
|
|
4kg
/ h
|
|
|
|||
|
Max. Operation Temp.
|
|
250℃
|
|
|
|||
|
Max. Closing Force
|
|
1200kg
|
|
|
|||
|
Air Pressure
|
|
5~6kg/cm²
|
|
|
|||
|
Max. Viscosity
|
|
20,000CPS
|
|
|
|||
|
Nozzle Quantity
|
|
1 Set
|
|
|
|||
|
Size (L*W*H)
|
|
1100*700*1570mm
|
|
|
|||
|
Weight
|
|
200kg
|
|
|
|||
|
Power
|
|
1600 Watt
|
|
|
|||
|
Power Requirements
|
|
AC 220V/ 7A 50/60 Hz 1.5φ
|
|
|
|||
