- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
Sublimation Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kaiou
-
Voltage:
-
AC220V(±10%),50HZ
-
Dimensions(L*W*H):
-
L2750*W900*H1500mm
-
Weight:
-
230 KG
-
Product name:
-
Kaiou Sublimation Printer
-
Application:
-
textile
-
Ink:
-
Sublimation Ink
-
Brand:
-
Kaiou
-
Language:
-
Chinese\English
-
Max. printing size:
-
1800mm
-
Printing material:
-
Curtain/Pillow case/Desk cloth/Bed shet/Garment/Carpet etc
-
Print head:
-
DX5/DX7/4720
-
Keyword:
-
Sublimation
Quick Details
-
Print Dimension:
-
1800mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
Sublimation Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kaiou
-
Voltage:
-
AC220V(±10%),50HZ
-
Dimensions(L*W*H):
-
L2750*W900*H1500mm
-
Weight:
-
230 KG
-
Product name:
-
Kaiou Sublimation Printer
-
Application:
-
textile
-
Ink:
-
Sublimation Ink
-
Brand:
-
Kaiou
-
Language:
-
Chinese\English
-
Max. printing size:
-
1800mm
-
Printing material:
-
Curtain/Pillow case/Desk cloth/Bed shet/Garment/Carpet etc
-
Print head:
-
DX5/DX7/4720
-
Keyword:
-
Sublimation

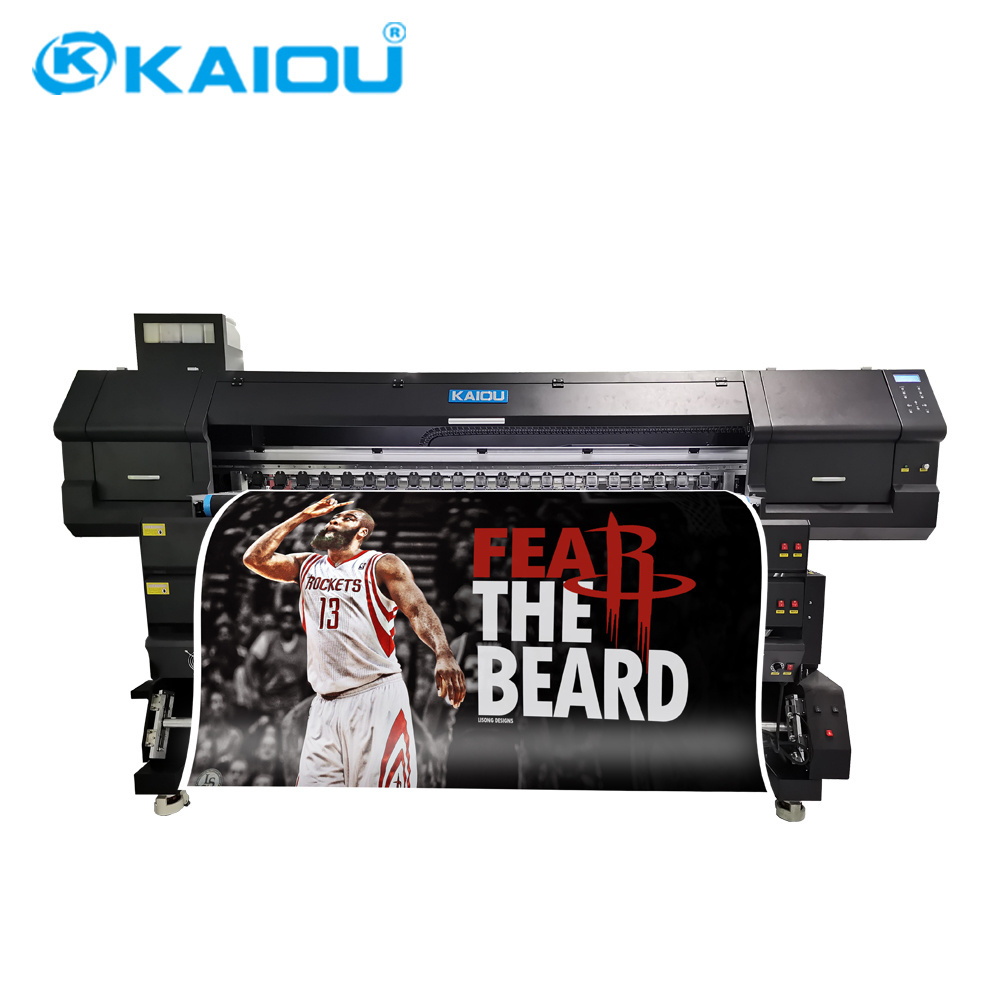

Kaiou Sublimation Printer
Product Parameters
| Product Model | Kaiou-1803 |
| Printhead | 2,3,4,6pcs Epson DX5/DX7/4720 |
| Ink Type | Sublimation ink |
| Print mode | Draft 3pass 52m²/h (3 heads) |
| Standard 4pass 42m²/h (3 heads) | |
| Quality 6pass 36m²/h (3 heads) | |
| Ink Supply System | Continuously automatic ink supply |
| Width | 1850mm |
| Maximum Print Width | 1800mm |
| Media | Transfer paper |
| Auto Media Feeding System | Auto Feeding and Take up System |
| Auto Cleaning System | Positive Cleaning Anti-clogged Flash Function |
| Pre-heating &Drying System | Panel Heating: Temperature controller 30C°adjustable |
|
Output Drying: 10~60C°adjustable
External Drying Fan Internal Radiating Fan |
|
| Computer System | WindowsXP\VISTA\7\8 |
| Print interface | Network interface/USB2.0 |
| Printhead Height | 2-5mm Distance to the printing platform,Adjustable |
| RIP Software | Maintop(standard)/ UitraPrint, Photoprint(optional) |
| Input Power | AC220V(±10%),50HZ |
| Power | Max 1200W; Operating Power: 500W |
| Operation Environment | Temperature:20-30℃ Humidity:50%-65% |
| Machine Dimension/NW | L2750×W900×H1500mm 230kg |
| Package Dimension/GW | L2800×W840×H680mm 280kg |
ü The stability of the contro's system, used the BYHX software,showing high-detinition.
ü Japan THK rails, ensure the precision requirement in the factory.
ü Bearings imported from Japan,it ensures the high precision and longer service life.
ü Double Leadshine brushless servo motor,make sure the stability and safety of the transmission.
ü German Chain,it is flexible and precise,equipped with high-flexibale cable to meet high-speed and high efficiency industrial needs.
The Main Application :Vinyl Sticker, Flex Banner, Mesh, One Way Vision, Paper, WallPaper, Coated
Banner, Canvas, Film, Lint-free Cloth, Photo Paper Etc.
