Quick Details
-
Dimension(L*W*H):
-
170*220*370mm
-
Weight (T):
-
0.3 T
-
Power (kW):
-
5kw
-
Weight:
-
15-150KG
-
Name:
-
gold melting furnace
-
Capacity:
-
1kg~500kg
-
Melting Material:
-
Gold Silver Copper Aluminum Lead
-
Max temperature:
-
500C - 2300C (custom Made)
-
Application:
-
Heating
-
Feature:
-
Environmentally Friendly
-
OEM:
-
Yes
-
Power(W):
-
2-70KW
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JXWKD
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
170*220*370mm
-
Weight (T):
-
0.3 T
-
Power (kW):
-
5kw
-
Weight:
-
15-150KG
-
Name:
-
gold melting furnace
-
Capacity:
-
1kg~500kg
-
Melting Material:
-
Gold Silver Copper Aluminum Lead
-
Max temperature:
-
500C - 2300C (custom Made)
-
Application:
-
Heating
-
Feature:
-
Environmentally Friendly
-
OEM:
-
Yes
-
Power(W):
-
2-70KW
Product description of melting furnace
The power adopts the solid-state IGBT frequency converter module technology from Siemens, after the induction heating equipment outputs the strong frequency current, it can create a strong magnetic field by the induction coils. Under the action of the magnetic field, it can form a vortex current on the surface of the heated work piece, which makes it heat quickly.
Product Application of melting furnace
Heat Treatment (surface hardening, quenching, annealing, tempering)
1. Hardening parts of automobile, motorbike, mold, agricultural machinery.
2. Quenching machinery parts, such as: all kinds of gear wheel, chain wheel.
3. Hardening the industrial of machine tool, such as bed guide way of machine tool.
4. Heat treatment pliers, spanner, screwdriver, drill, axes, spiker
5. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.
Melting
Non-ferrous and ferrous metals melting
Precious metal melting, like gold, sliver, platinum,etc.
Semiconductor material melting
Specialized steel, iron, copper melting
Metal alloy melting, like aluminum alloy, zinc alloy, copper alloy,etc.
Main Features of melting furnace
1. Prompt heating: heating in 1s with adjustable heating speed..
2. Environmentally sound and energy saving: over 95% heat efficiency.3. Safety&reliability guarantee: Short circuit protection, overheating proof.
4. Convenient to use: 1 m2 floor space&easy to move.
5. Simple&easy assembly and operation: no need for additional adjustment.
6. With electromagnetic agitator: make your ore more evenly&metal solution purer.
7. Main melting metals: platinum, palladium, rhodium, gold, silver, copper, steel, aluminum, activated carbon, gold dust, electrolytic slime and so on.
Working Principle of melting furnace
SIEMENS IGBT frequency conversion power module technology has adopted in gold furnace machine which can guarantee the melting point. As the AC power on, machine will generate strong frequency conversion power which will finally form a strong magnetic field as the power go through electromagnetic coil. Then as the magnetic field works, heating of work table will result in prompt heating of materials to be melt.

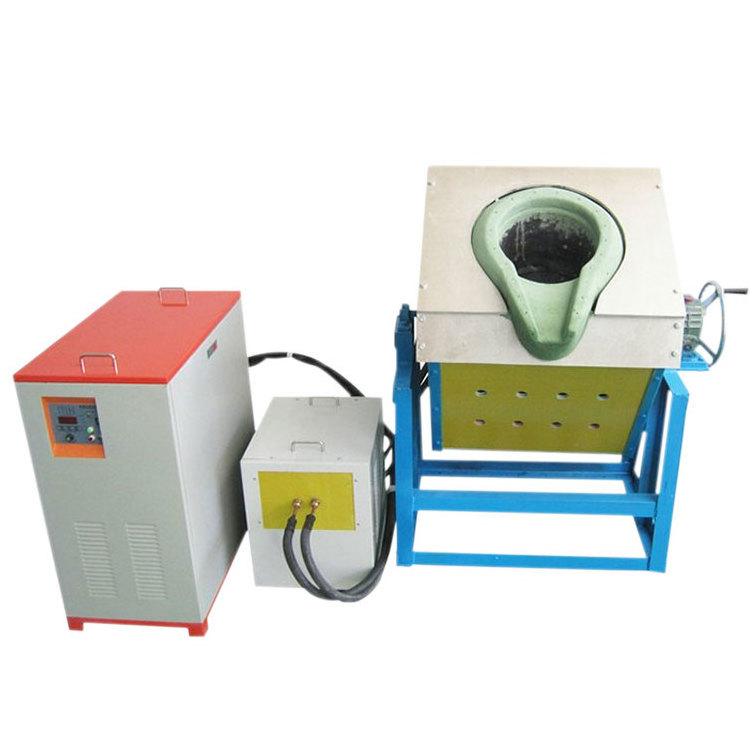

Structure of melting funace
Can be used to melting gold, silver, copper, aluminum etc.
This machine has special requirement for cooling water, please pay attention to this.
