Home desktop plasma air filter purifier ozone generator air purifier

Home desktop plasma air filter purifier ozone generator air purifier

FOB Reference Price: Get Latest Price

≥1 Sets

US $9800

≥10 Sets

US $9750

≥20 Sets

US $9650

≥50 Sets

US $9600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Size:: 840*300*300mm

Power:: 6.5

Productivity:: 1000g/Hour

Weight (KG):: 147 kg

Product Intellectual Property:: Independently invented patented products

Ozone module structure:: 1000g Plate ozone

Input voltage:: 110V/220V/50HZ

Power regulation:: 0-100%

Ozone operating frequency:: 8K - 15K

Ozone concentration:: 160-220mg/L; Customization required above 250 mg/L

Maximum ozone concentration:: 250mg/L

Oxygen Flow Rate:: 6m³/hour

Oxygen pressure:: 0.15Mpa

cooling water:: 5L/min,20-25℃

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Huachenziguang

Weight:: kg

Size:: 840*300*300mm

Power:: 6.5

Productivity:: 1000g/Hour

Weight (KG):: 147 kg

Product Intellectual Property:: Independently invented patented products

Ozone module structure:: 1000g Plate ozone

Input voltage:: 110V/220V/50HZ

Power regulation:: 0-100%

Ozone operating frequency:: 8K - 15K

Ozone concentration:: 160-220mg/L; Customization required above 250 mg/L

Maximum ozone concentration:: 250mg/L

Oxygen Flow Rate:: 6m³/hour

Oxygen pressure:: 0.15Mpa

cooling water:: 5L/min,20-25℃

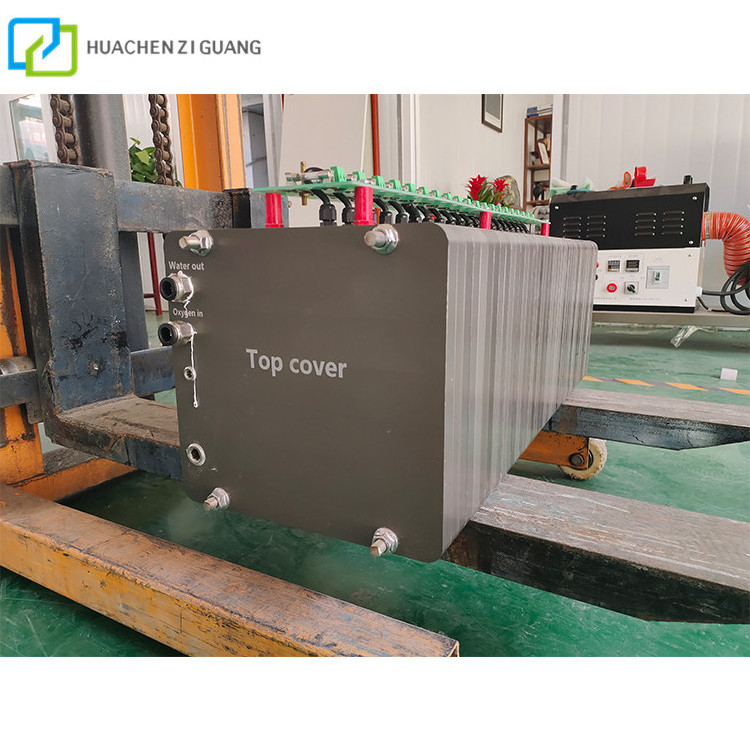

100% invention patented structure, the outer shell is made of aviation aluminum magnesium alloy material, with a machining accuracy error of<0.01mm, a discharge gap of 0.15mm, and a high ozone concentration of 180-300mg/L. The surface of the material is treated with a ceramic film for better corrosion resistance. The internal dielectric material adopts ultra-high density ceramic plate, which has high stability and long service life. Special water and air circuit design can withstand higher working pressure.

The dual channel cooling design of high-voltage electrode and ground electrode has a veryl high cooling rate, and the generated ozone will not be decomposed by heat, resulting inl higher ozone concentration. Currently, our company's plate ozone generator can achieve anl ozone concentration of 100mg/L

1. Huachen Purple Light Invention Patent Product.

2. Discharge gap 0.15mm

3. Rated ozone concentration 180mg/L.

4. Power supply 110V/220V/50HZ.

5. Design life of 10 years.

Product Paramenters

HIGH FREQUENCY

OZONE POWER SUPPLY

1. The working frequency can be between 8K-10K
2. Automatic frequency finding function,automatically adjusting the working frequency.
3. Power regulation 0-100%.
4. Temperature detection protection function.
5. Remote control Interface.
