Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nuocai
-
Voltage:
-
220V/110V
-
Dimensions(L*W*H):
-
135*130*68cm
-
Weight:
-
150 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Ink type:
-
UV Ink
-
Software:
-
FLEXIPrint
-
resolution:
-
1440dpi
-
Print head:
-
Single printhead (180*8 nozzles)
-
Print method:
-
White ink and color ink printing at the same time
-
UV lamp:
-
LED UV lamps(water cooling)
-
ink color:
-
CMYK+W/CMYK LC LM
-
Keyword:
-
Phone Case UV Flatbed Printer
-
Language:
-
English
Quick Details
-
Print Dimension:
-
400mm*600mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nuocai
-
Voltage:
-
220V/110V
-
Dimensions(L*W*H):
-
135*130*68cm
-
Weight:
-
150 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Ink type:
-
UV Ink
-
Software:
-
FLEXIPrint
-
resolution:
-
1440dpi
-
Print head:
-
Single printhead (180*8 nozzles)
-
Print method:
-
White ink and color ink printing at the same time
-
UV lamp:
-
LED UV lamps(water cooling)
-
ink color:
-
CMYK+W/CMYK LC LM
-
Keyword:
-
Phone Case UV Flatbed Printer
-
Language:
-
English

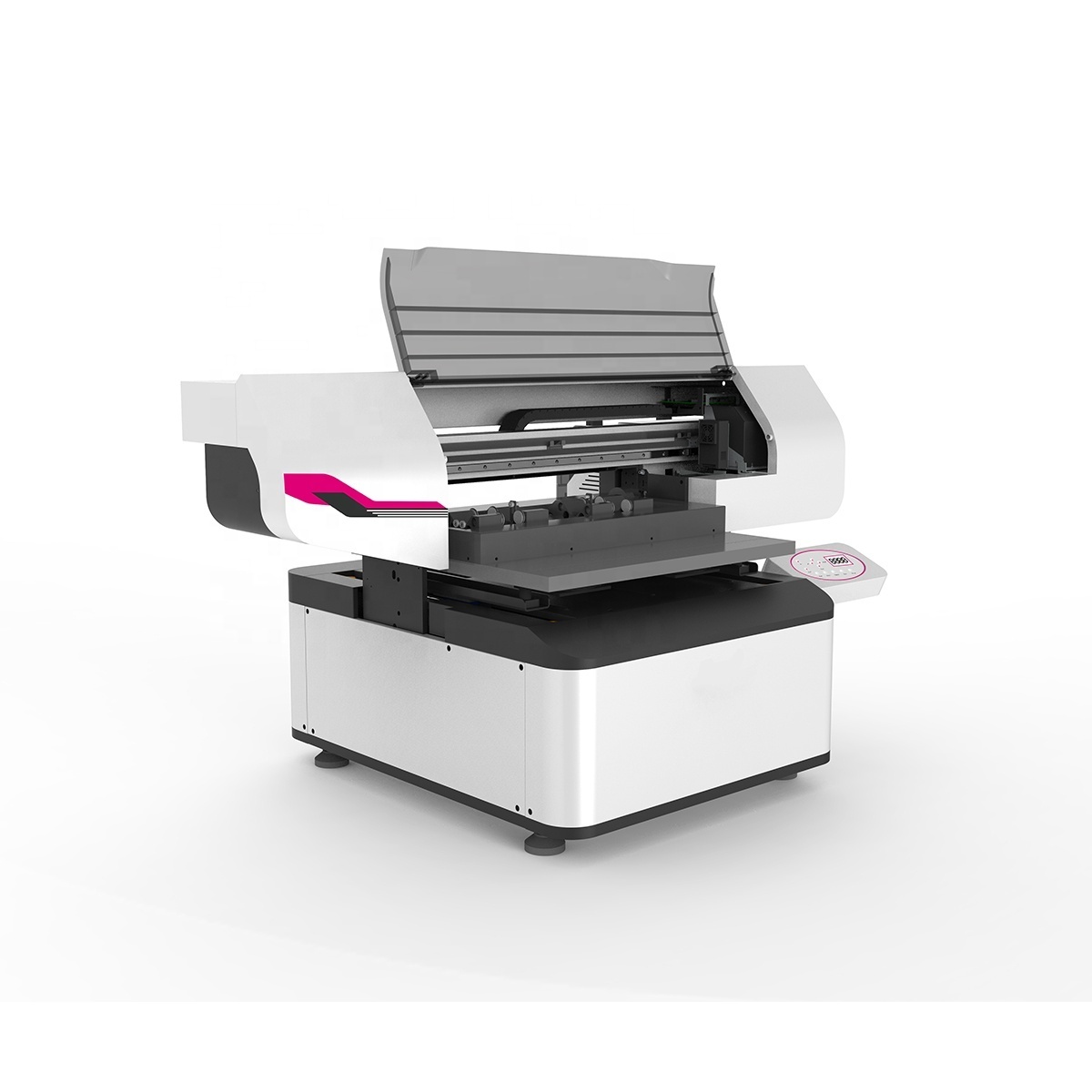

Hot Selling A2 Size KT Board Pen Phone Case Printing Machine a2 UV Flatbed Printer
Hot Selling A2 Size KT Board Pen Phone Case Printing Machine a2 UV Flatbed Printer
KT Board Pen Phone Case Printing Machine a2 UV Flatbed Printer Specifications:
|
Model |
NC-UV 0406 |
|
Nozzle Configuration |
Epson XP600 Print Head |
|
Head Number |
1 pcs |
|
Nozzle Quantity |
6*180 |
|
Nozzle Spraying Strength Range |
2-3mm |
|
Print Head Theoretical Lifespan |
6-12months |
|
Ink Drop Size(pl) |
1.8-9.5-19pl/12.96kHz |
|
Max Injection Frequency(kHz) |
46(Single Drop) |
|
Max Printing Size |
4 00* 6 00mm |
|
Print Height |
0-180mm |
|
Print Version |
Color&White |
|
Print Mode |
CMYK+W / CMYKLcLm |
|
Print Method |
One Way/Bidi |
|
Print Speed |
0.477sqm/h-2.93sqm/h |
|
Max Print Resolution |
1440dpi |
|
Guideline&Drag Chain |
Imported |
|
Y Axis Transmission Method |
Belt |
|
Shading Protective Cover |
Yes |
|
Control Panel Board |
Yes |
|
Plate Board |
Vacuum Table |
|
UV Curing Method |
Air Cooling |
|
Fly Ink Purification Device |
Yes |
|
Ink Volume Alarming Function |
Yes |
|
Ink Sucking Method |
Lifting Capping System/Ink Pump |
|
Ink Stirring Function |
Yes |
|
Infrared Detection Height |
Yes |
|
Auto Clean Function |
Yes |
|
White Ink Volume Adjust |
Yes |
|
Color-White Print Function |
Yes |
|
Data Transmission Interface |
Network Cable |
|
RIP Software |
FlexiPRINT |
|
Power Supply Voltage |
AC 110 / 220V ± 10V 50-60HZ |
|
Image Format |
JPEG,PDF,T i ff,EPS, PNG,AI , PSD, etc. |
|
Operation Environment |
Temperature:20- 28 ℃, Humidity: 35 %- 65 % |
|
Available Ink |
Environmental UV Curing ink |
|
Printer Diameter(L*W*H) |
1390mm*900mm*670mm |
|
Printer Stand Size(L*W*H) |
830mm*720mm*550mm |
|
Packing Size |
1.56m*1.02m*1m |
|
Volume |
1.52CBM |
|
N.W/G.W |
110KG/180KG |
Hot Selling A2 Size KT Board Pen Phone Case Printing Machine a2 UV Flatbed Printer
Printing Media:
The uv flatbed printer can print nearly all flat materials, such as wood, phone case, leather, glass, ceramic, PVC, acrylic, plastic, metals, Cylindrical Objects,etc.
Main Features
1.White ink and color ink print together (white + color / color + white);
2. Can installed with Height Detecting Sensor, to protect print head;
3 Ink cartridge has Ink Level Detecting Sensor, when ink finished there will be alarming;
4. Convenient: controlable air cooling LED UV lamp + smart control panel + print gap electric reader;
5.Printing format 40x60cm A2 Size Phone Case UV Flatbed Printer.
6.CMYK+White/ CMYK+Varnish
7.Max printing resolution 1440dpi.
Packing and Shipping:
|
Delivery |
Within 3-7 working days for production , w e will arrange delivery after received the total payment. |
|
Packing |
Firstly, Packed the flatbed uv printer with plastic sheet for clearing and damp proofing. |
|
Secondly, Then put the uv printer in the plywood case for safety and clashing. |
|
|
Thirdly, Transport the plywood case into the container. |
Our service;
Guarantee:
1.12 months guarantee of the whole machine(except the printhead)
2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge
4.We will provide the UV printer consumable parts at an agency price when you need replacement
5.Machine has been adjusted and tested before delivery
6.Our staff can be sent to your company to install or adjust if necessary
.
Hot Selling A2 Size KT Board Pen Phone Case Printing Machine a2 UV Flatbed Printer
After-sale service:
1. 24 hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 1 years for UV printing machine(without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
Customers Feedback:
Hot Selling A2 Size KT Board Pen Phone Case Printing Machine a2 UV Flatbed Printer
A2 Phone Case UV Printer Certificates:
Contact Us:
Our Factory:
Hot Selling A2 Size KT Board Pen Phone Case Printing Machine a2 UV Flatbed Printer
Zhengzhou ChangRong Machinery Equipment Co.,Ltd was founded in 2006,Located in the center of China Zhengzhou City.Our company is the professional manufacturer of advertising machinery equipment,
In view of 16 years of rich experience in the production of advertising machinery and equipment,
we own
first-class
product quality, first-class service, at the same time competitive prices. Strong R & D design team, and deep corporate culture, so that we have enough confidence to maintain long-term customer cooperation.
Our products are mainly
UV printers,
Inkjet printers,
Digital textile printers,Digital foil stamping
machine
s
,
Laminators,Heat transfer machine,Cutting plotters
and so on. Mainly exported to foreign countries, such as Southeast Asia, the Middle East, Africa, Europe and the Americas, more than 130 countries, our products have been well received by customers and maintain good relations of cooperation. Positive feedback from customers makes our products continue to improve, and always let our products go in the advertising machinery and equipment industry at the forefront.
Our goal is to let customers do not take a step from our company, you can find the best solution. We are convinced that
choosing us means success. Looking forward to working with your as soon as possible
