Quick Details
-
Brand Name:
-
Ewen
-
Model Number:
-
TNS(SVC)-60KVA
-
Product Name:
-
Three Phase Servo Voltage Regulator
-
Rated Power:
-
60KVA
-
Type:
-
Servo Motor Type
-
Display:
-
Digital Meter
-
Input Voltage Range:
-
380V+/-20% (standard)
-
Output Voltage:
-
380V+/-2%
-
Working Frequency:
-
47-63hz
-
Certificates:
-
CE / ISO9001
-
Audible Noise:
-
<70db(1m)
-
Size:
-
550*450*1150mm (for reference)
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Ewen
-
Model Number:
-
TNS(SVC)-60KVA
-
Product Name:
-
Three Phase Servo Voltage Regulator
-
Rated Power:
-
60KVA
-
Type:
-
Servo Motor Type
-
Display:
-
Digital Meter
-
Input Voltage Range:
-
380V+/-20% (standard)
-
Output Voltage:
-
380V+/-2%
-
Working Frequency:
-
47-63hz
-
Certificates:
-
CE / ISO9001
-
Audible Noise:
-
<70db(1m)
-
Size:
-
550*450*1150mm (for reference)
380V Three Phase 60KVA AC Generator Voltage Stabilizer Automatic
Product Specifications
| Product Name | Three Phase Automatic Servo Voltage Regulator |
| Rated Power | 60KVA |
| Type | Servo Motor Type |
| Display | Digital Meter |
| Certificates | CE / ISO9001 |
| Input Voltage | 380V±20% |
| Output Voltage | 380V±2% |
| Output Precision | ±2% |
| Insulation Class | F |
| Protection Grade | IP 20 |
| Cabinet Type | Metallic Type |
| Cabinet Color | RAL 7035 |
| Wiring Terminals | Bus Bar |
| Wiring Position | Bottom of the Cabinet |
| Weight | 160kg for Reference |
Product External Display

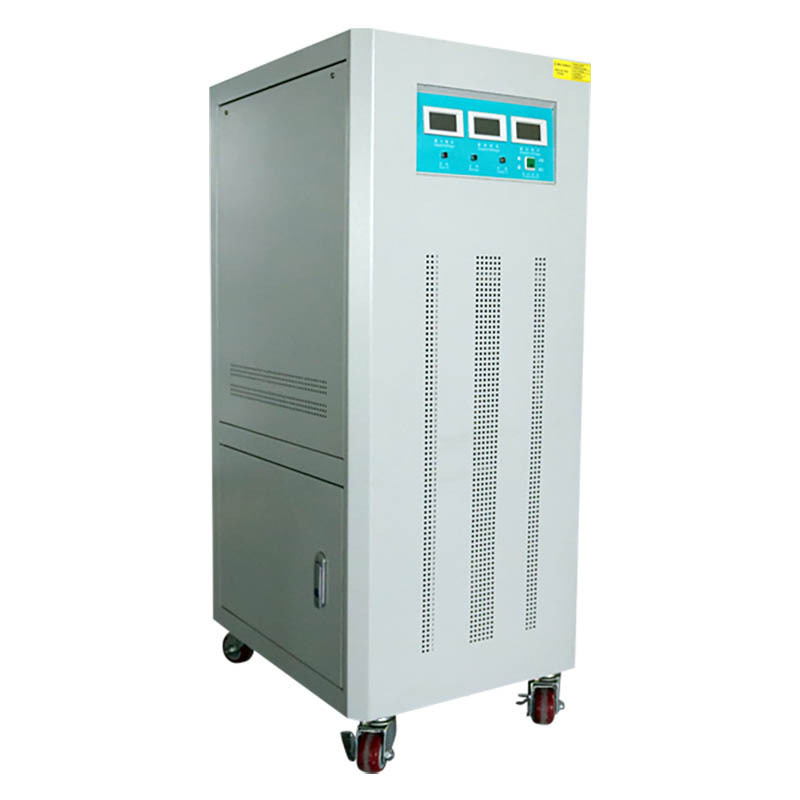

The external design of this three phase voltage regulator. The displaying system, omni-directional wheels, the heat dissipation holes, and the wiring position (the left bottom) are clearly shown on this picture.
The other side of this 60KVA voltage regulator.
The wiring side of this voltage regulator.
One of the cabinet sides of the cabinet.
The back of the 60KVA three phase voltage stabilizer.
Product Features
Digital display: the input and output voltage would be shown on the digital meters, which is very convenient for you to read real-time data to monitor the working status of the voltage regulator.
Copper coil for voltage regulation: copper material facilitates low loss and high electricity conductivenss.
User-friendly omni-directional wheels: this design makes it easier to move the voltage regulator in a more energy-saving way.
High quality carbon brush: 1017 carbon brush is more durable, which prolongs its service time.
Product Details Display
