Quick Details
-
Power input:
-
220V/110V (±10%)
-
Machine core:
-
Semi-automatic
-
Operating Temperature:
-
-20℃-60℃
-
Passing Speed:
-
30 persons/min
-
Control unit:
-
Selenoid
-
Protection level:
-
IP 44
-
Direction:
-
Bi-diretional
-
Warranty:
-
12 Months
-
Control voltage:
-
24V
-
Application:
-
Security Access Control Management
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINOMATIC
-
Model Number:
-
FHT-SA-M1-PLUS
-
Power input:
-
220V/110V (±10%)
-
Machine core:
-
Semi-automatic
-
Operating Temperature:
-
-20℃-60℃
-
Passing Speed:
-
30 persons/min
-
Control unit:
-
Selenoid
-
Protection level:
-
IP 44
-
Direction:
-
Bi-diretional
-
Warranty:
-
12 Months
-
Control voltage:
-
24V
-
Application:
-
Security Access Control Management
Product description
This is a new and upgraded model, which has the following advantages compared to the basic model.
*Main body is electroplated and oxidized, anti-rust, beautiful and durable.
*Mold design vulnerable parts, not easy to wear and have moreanti-rust.
*Solenoids adopt aluminum alloy heat sink, can effectively dissipate heat and prolong its service life.
*Main body is electroplated and oxidized, anti-rust, beautiful and durable.
*Mold design vulnerable parts, not easy to wear and have moreanti-rust.
*Solenoids adopt aluminum alloy heat sink, can effectively dissipate heat and prolong its service life.
Functions & Features

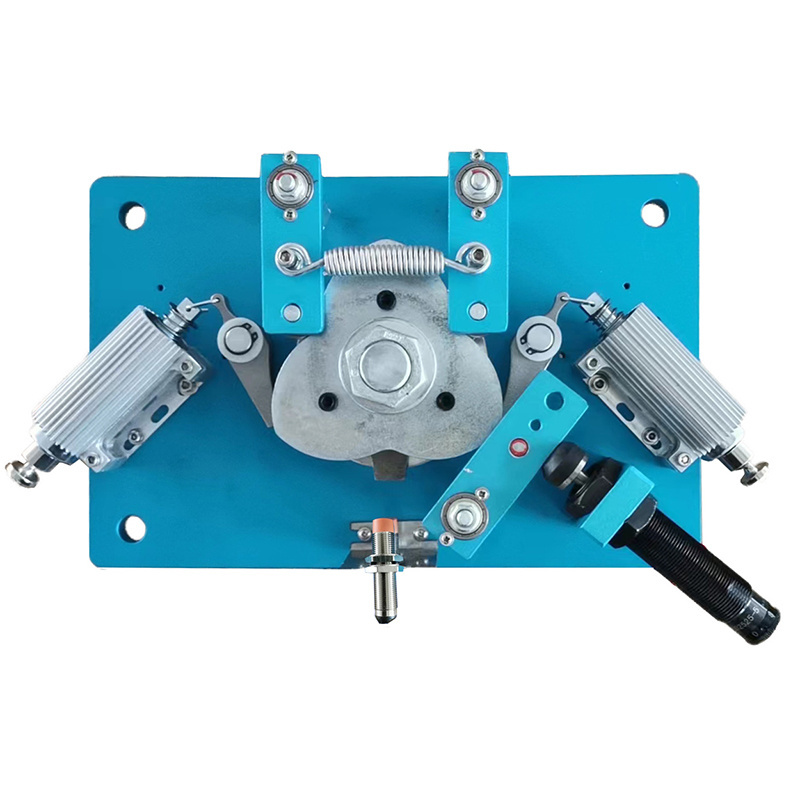

1.The mechanism is equipped with an automatic regulated hydraulic buffer device. There is low noise and impact when running.
2.Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
3.If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate
back to the current idle position.
4.Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
5.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
6.Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
7.Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access
controller needed)
8.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
Product Specs
|
Power input
|
AC220V/110V(±10V),50/60Hz
|
|
Machine core
|
Semi- Automatic
|
|
Operating Temperature
|
-20℃-60℃
|
|
Relative Humidity
|
≤95%, No Condensation
|
|
Passing Speed
|
30 persons/min
|
|
Control device
|
Solenoid
|
|
Control signal
|
Dry contact
|
|
Running life
|
Over 5 Million(Continuous Opening and Closing Operation)
|
|
Protect level
|
IP44
|
Production line
