Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K/4000K/5000K/6000K
-
Color Rendering Index(Ra):
-
Ra>80
-
Product Weight（kg）:
-
6.5
-
Input Voltage(V):
-
DC30-42V
-
Lamp Luminous Flux(lm):
-
100lm/w ±10%, Up to 125lm/w ±10%
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ShineLong
-
Model Number:
-
26B
-
Product name:
-
LED Panel Light
-
Material:
-
High-quality Aluminum + PMMA
-
CRI:
-
>80
-
CCT:
-
3000K/4000K/5000K/6000K
-
DC Input:
-
DC30-42V
-
Waterproof:
-
IP 54
-
IK Rate:
-
I K 06
-
Warranty:
-
5 Years
-
Operating Temperature:
-
-20~+40℃
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100lm/w ±10%,Up to 125lm/w ±10%
-
Application:
-
Office/Hospital/School/Supermarket/Showroom
-
Lamp Body Material:
-
High-quality Aluminum + PMMA
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K/4000K/5000K/6000K
-
Color Rendering Index(Ra):
-
Ra>80
-
Product Weight（kg）:
-
6.5
-
Input Voltage(V):
-
DC30-42V
-
Lamp Luminous Flux(lm):
-
100lm/w ±10%, Up to 125lm/w ±10%
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ShineLong
-
Model Number:
-
26B
-
Product name:
-
LED Panel Light
-
Material:
-
High-quality Aluminum + PMMA
-
CRI:
-
>80
-
CCT:
-
3000K/4000K/5000K/6000K
-
DC Input:
-
DC30-42V
-
Waterproof:
-
IP 54
-
IK Rate:
-
I K 06
-
Warranty:
-
5 Years
-
Operating Temperature:
-
-20~+40℃

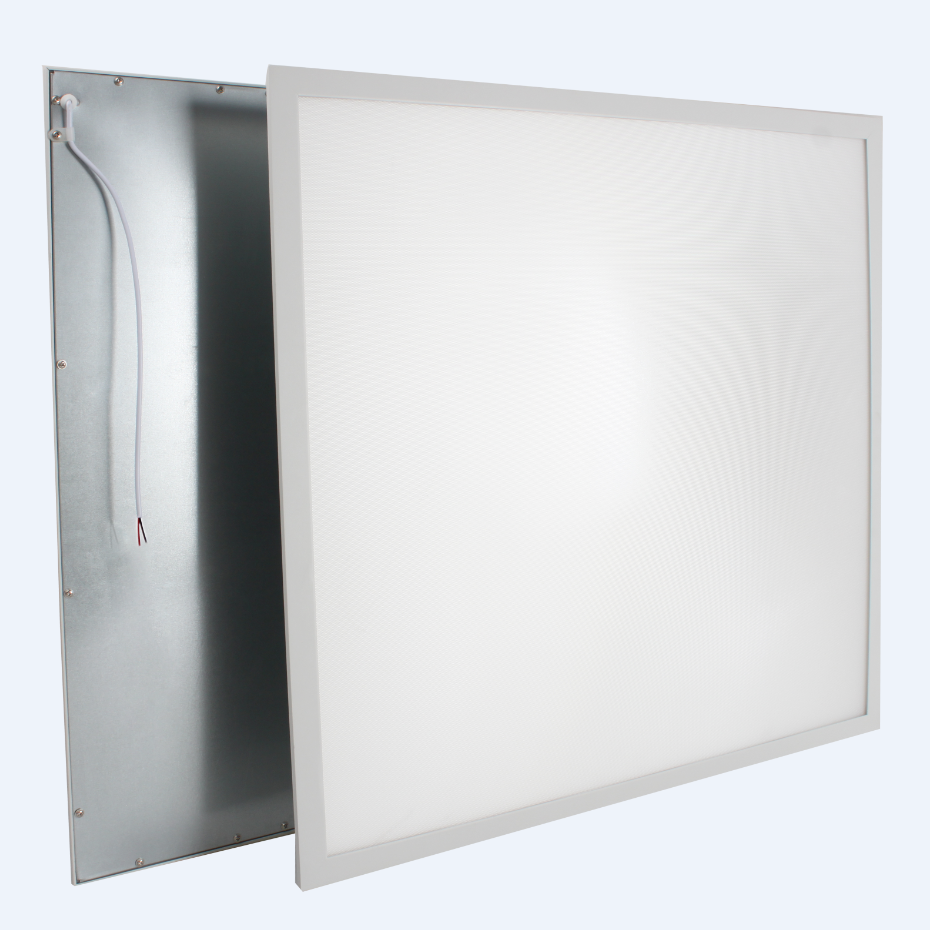

CE, RoHS Certified Indoor LED Panel Lighting 100lm/w-125lm Ultrathin LED Panel Light
Specifications:
| Product Name | LED Panel Light |
| Material | High-quality aluminum + PMMA |
| Efficacy | 100lm/w ±10%,Up to 125lm/w |
| Size | 300*300*7mm,6 00 *600*7mm,300*1200*7mm,600*1200*7mm |
| Input Voltage | DC30-42V |
| Waterproof | IP 54 |
| IK Rate | I K 06 |
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
Features & Advantages:
1. Ultra-thin Slice led panel light, IK06 IP54 approved
2. CE, RoHS Certified
3. Efficacy (IES): 100lm/w ±10%,Up to 125lm/w ±10%
4. Material: High-quality aluminum + PMMA
5. Input Voltage: DC30-42V
6. Support 1-10V dimming,DALI dimming driver
7. High CRI: Ra>80, SDCM<4
8. Ultra narrow frame,Support UGR<19
9. Instant on/off, edge-lit, no dark area, anti-yellowing
10. L80B50 lifespan(Ta=25 ℃): 70,000hrs, Warranty: 5 years
11. CCT: 3000K: 3045±175K, 4000K: 3985±275K, 5000K: 5029±283K, 6000K: 6065±415K
12. Suspending&Ceiling&Surface mounted&Recessed installation
13. Application: Office/Hospital/University/School/Supermarket/Show room/Exhibition hall/Library
Package:
ShineLong LED Panel Light: Inner Box + Carton Box, 6pcs/CTN
Inner Box including: 1 x Panel Light, 1 x PE bag, 2 x EPE, 1 x Installation Manual, accessories.
Shipment:
Custom can choose international express (Fedex/UPS/DHL/TNT), by air or by sea transportation.
Delivery time for samples is 3-7 days, and for bulk order is 25-45 days.
