Quick Details
-
Type:
-
Manual Operation
-
Usage:
-
surface leveling
-
Color:
-
Optional
-
Engine:
-
Gasoline
-
Engine Model:
-
Gx160/270/390
-
Material:
-
Aluminum/alloy steel
-
Single section:
-
1m/2m
-
Name:
-
Vibrating concrete level screed machine
Quick Details
-
Weight (KG):
-
200
-
Place of Origin:
-
China
-
Keywords:
-
concrete screed
-
Type:
-
Manual Operation
-
Usage:
-
surface leveling
-
Color:
-
Optional
-
Engine:
-
Gasoline
-
Engine Model:
-
Gx160/270/390
-
Material:
-
Aluminum/alloy steel
-
Single section:
-
1m/2m
-
Name:
-
Vibrating concrete level screed machine

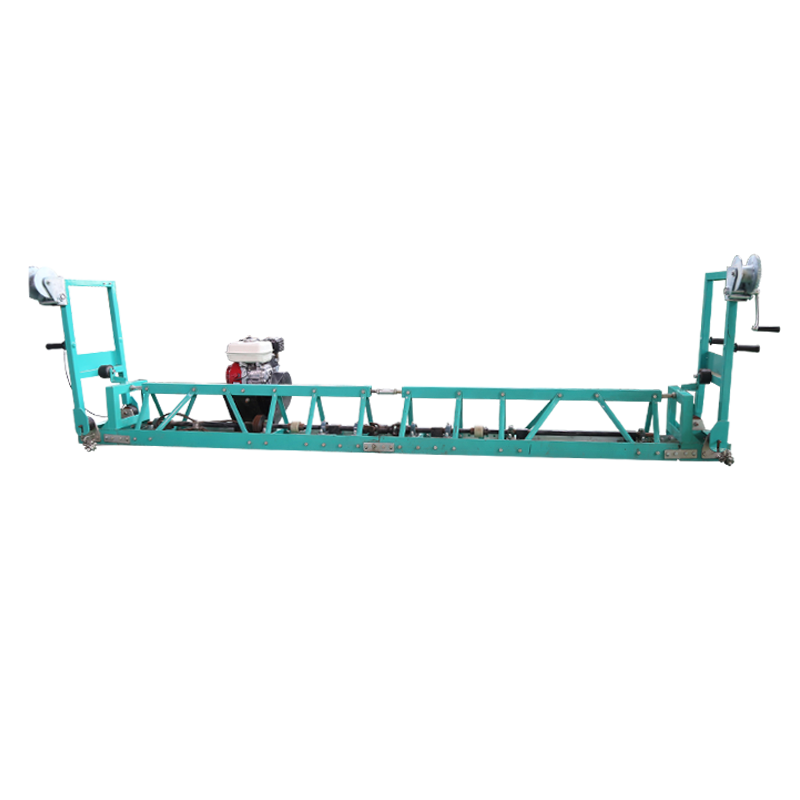

Vibrating concrete level screed machine
Technical parameter for Vibrating concrete level screed machine
| Model | SWL-55 | SWL-90 | SWL-130 |
| Engine Model | HONDA GX160 | HONDA GX270 | HONDA GX390 |
| Power | 5.5HP | 9HP | 13.0HP |
| Type | Gasoline engine, air-cooled 4-stroke, OHV, single cylinder | ||
| Working width | 4-8m | 8-12m | 12-18m |
| Working depth | 260mm Concrete Truss Screed Machine | ||
| Vibration frequency | 70Hz Concrete Truss Screed Machine | ||
| Induced vibration force | 11kN/(≤)2000mm Concrete Truss Screed Machine | ||
| Fuel tank capacity | 3.6L | 6L | 6.5L |
| The amount of fuel consumption | 313g/kWh Concrete Truss Screed Machine | ||
| Dimensions | Concrete Truss Screed Machine | ||
| Standard knot | 1000/2000mm | ||
| 2m linker | 400mm×2000mm | 68kg | |
| 1m single linker | 400mm×1000mm | 35kg | |
| 0.5m single linker | 400mm×250mmX2 | 15kg | |
Product Detail
Concrete pavers screed machine is mostly used to pave vibrating impact concrete surface, bridge concrete surface, large packing slurry and other large of factory concrete surface. This is designed with exact paving system, suitable and perfect for large concrete surfaces, the max working width can be up to 16m or 18m
