Quick Details
-
Weight:
-
1400 KG
-
Marketing Type:
-
Hot Product 2023
-
Drilling Diameter:
-
80-254 mm
-
Mobility:
-
yes
-
Driling diameter:
-
80-254 mm
-
Drilling depth:
-
200m
-
Effective travel:
-
3.4m
-
Crawler walking speed:
-
2.5 km/h
-
Gradeability:
-
35°
-
Dril pipe diameter:
-
76-102 mm
-
Drill pipe length:
-
2 m
-
Slewing speed:
-
100-120 rpm
-
Rotation torque:
-
7000 N.m
-
Rig lifting force:
-
12 T
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hongrun
-
Dimension(L*W*H):
-
2300*1200*2600 mm
-
Weight:
-
1400 KG
-
Marketing Type:
-
Hot Product 2023
-
Drilling Diameter:
-
80-254 mm
-
Mobility:
-
yes
-
Driling diameter:
-
80-254 mm
-
Drilling depth:
-
200m
-
Effective travel:
-
3.4m
-
Crawler walking speed:
-
2.5 km/h
-
Gradeability:
-
35°
-
Dril pipe diameter:
-
76-102 mm
-
Drill pipe length:
-
2 m
-
Slewing speed:
-
100-120 rpm
-
Rotation torque:
-
7000 N.m
-
Rig lifting force:
-
12 T
Note
The listing price is only a deposit price, excluding shipping costs. Please note that if you would like to know the specific price, please contact us or send us an inquiry, and we can provide you with a detailed quotation. Thank you
Product Description
|
Product Name
|

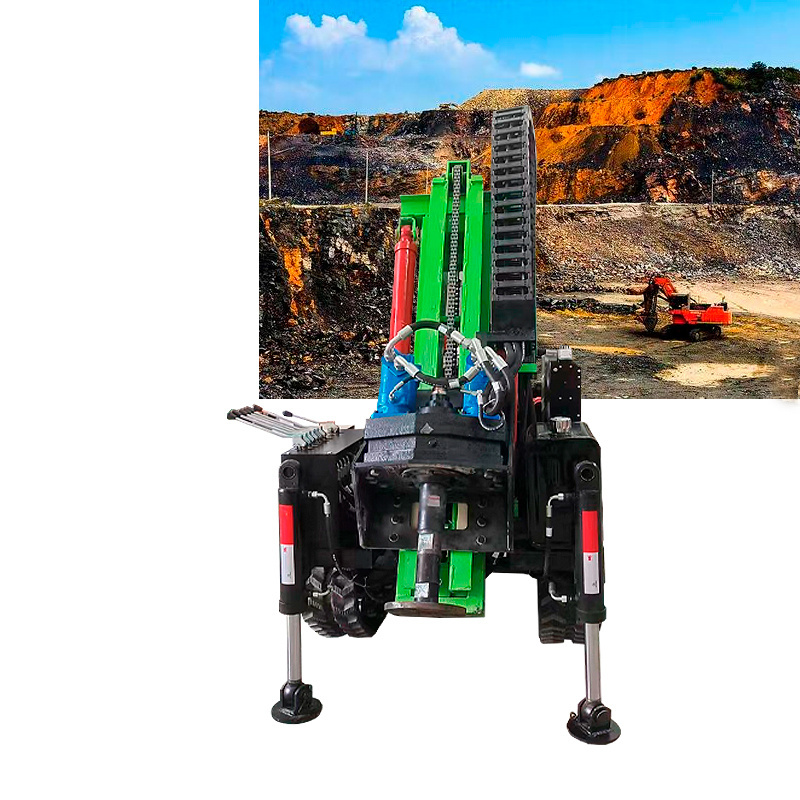

35HP Dual Power Head Downhole Drill Rig
|
|
Driling diameter
|
50-300mm
|
|
Drilling depth
|
130-200m
|
|
Effective travel
|
3.4m
|
|
Crawler walking speed
|
2.5km/h
|
|
Gradeability
|
35°
|
|
Dril pipe diameter
|
76/102 mm
|
|
Drill pipe length
|
2m
|
|
Rotation torque
|
7000N.m
|
|
Rig lifting force
|
10 T
|
|
Diesel engine power
|
35HP dual cylinder turbocharged engine
|
|
Oil pump
|
40/40 dual pump
|
|
Adapt to geology
|
Soil layer, loose overburden, all kinds of rock layers
|
|
Rotary torque
|
3500-4800 N.m
|
|
Working pressure
|
1.2-3.0 mpa
|
|
Air consumption
|
17-31 m³min
|
35HP Dual Power Head Downhole Drill Rig
1. Multi functional down-the-hole drilling rig, can be paired with mud pump or air compressor to complete water drilling or air drilling, suitable for all geological conditions.
2. Equipped with dual power heads, the drilling force is greater and the drilling speed is faster.
3. It can meet the requirements of engineering foundation reinforcement, loose gravel drilling, and connection of various engineering rock information. The drilling rig has higher efficiency, lower failure rate, is more economical and durable, and has high comprehensive cost-effectiveness.
4. Widely used in industrial, agricultural, water conservancy engineering, drilling, monitoring wells and other exploration well projects.
We have many models to choose from and support customization
