This V powder machine adopts high quality 304 stainless steel with fine polishing surface, which has strong corrosion resistance and steady performance so as to improve the processing efficiency.
- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
500L
-
Weight (KG):
-
320 KG
-
Additional Capabilities:
-
Automatic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuanyang
-
Voltage:
-
380V/220v
-
Dimension(L*W*H):
-
1685*800*1850mm
-
Power (kW):
-
2.2 kW
-
Product Name:
-
Dual Cone Powder Mixer
-
Spindle Speed:
-
5-40rpm/min
-
Volume:
-
100L-300L
-
Function:
-
Mixing Raw Material
-
Application scope:
-
To mix different powder together
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Barrel Volume (L):
-
300
-
Max. Loading Volume (L):
-
300 L
-
Range of Spindle Speed(r.p.m):
-
1 - 50 r.p.m
-
Max. Loading Capacity:
-
500L
-
Weight (KG):
-
320 KG
-
Additional Capabilities:
-
Automatic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuanyang
-
Voltage:
-
380V/220v
-
Dimension(L*W*H):
-
1685*800*1850mm
-
Power (kW):
-
2.2 kW
-
Product Name:
-
Dual Cone Powder Mixer
-
Spindle Speed:
-
5-40rpm/min
-
Volume:
-
100L-300L
-
Function:
-
Mixing Raw Material
-
Application scope:
-
To mix different powder together
-
After-sales Service Provided:
-
Video technical support

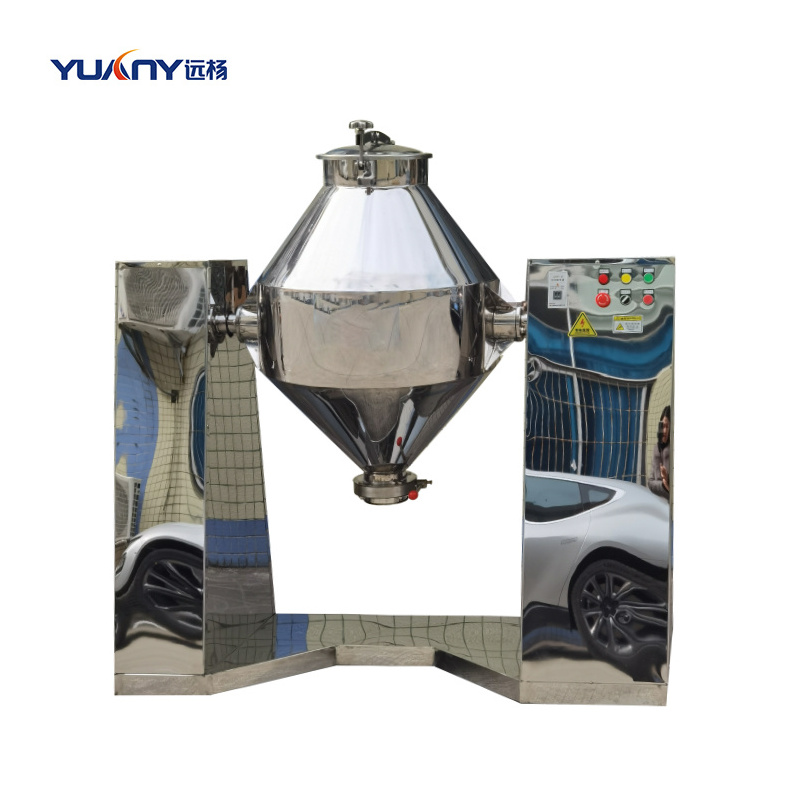

W Type Double Cone Vertical Powder Mixer Machine
Main Features
The series of Yuanyang powder mixer are
used for the uniform mixing of powder,granular and other materials in cosmetic,chemical,food industries and so on
. The machine is simple in structure, easy to operate and clean.
The material-contacting parts are made of stainless steel which meet GMP standards
Operating Principle
A motor and a reducer are installed on the side.
A motor and a reducer are installed on the side.
The motor drives the reducer with a belt, and the reducer drives the V-shaped barrel with a coupling.
The powder in the V-shaped barrel is mixed up and down, back and forth in the barrel.
Cutomization
1: The mixer is made up of stainless steel 304
( if consumer need 316. inform us in advance).
2: The mixer can add a forced stirring inside mix tank .
( if consumer need. inform us in advance) .
3. The mixer can add the liquid spraying system.
( if consumer need. inform us in advance) .
3. The mixer also can add the heating or cooling jacket ( if consumer need. inform us in advance) .
4.:The mixer can make into vacuum condition( if consumer need, inform us in advance).
5:The mixer can add the frequency changer( adjust the rotation speed), (if consumer need, inform us in advance).
6.
Vacuum feeding machine or spiral conveyer can be equipped to achieve automatic feeding.
Real Images
Specification
|
Type
|
Volume
(L)
|
Power
(KW) |
Speed
(r/min) |
Capacity/
Batch(kg)
|
Mixing Time
(min) |
Rotary Height (mm)
|
Weight
(kg)
|
|
YY-200
|
200
|
1.1
|
12
|
40
|
4-8
|
1850
|
280
|
|
YY-300
|
300
|
1.1
|
12
|
60
|
6-10
|
1900
|
320
|
|
YY-500
|
500
|
2.2
|
12
|
100
|
6-10
|
2000
|
650
|
|
YY-1000
|
1000
|
4
|
10
|
200
|
6-10
|
2460
|
850
|
|
YY-1500
|
1500
|
5.5
|
10
|
300
|
6-10
|
2600
|
1100
|
Application
It’s widely used in food, chemical industry to mix dry powder such as milk powder, coffee powder, wheat flour, corn flour, maize flour, rice flour, oats flour, protein powder, cosmetic powder, chili powder, onion powder, spar powder, chicken powder, gourmet powder, egg powder, washing powder, detergent powder, solid drink, dextrose, titanium oxide, powder additive, Moringa powder, agriculture pesticide, dyestuff, and so on.
Product Description
With sealed lid,can achieve vacuum condition
Easy to clean
Can add forced stirring inside tank
Can add heating jacket if needed
The rotary speed is adjustable 0-42rpm
with butterfly discharge
easy to operate manually
