Quick Details
-
Model Number:
-
DX330
-
Accuracy:
-
1nt
-
Respond frequency:
-
Dc
-
Preheating time:
-
15mins
-
Sampling rate:
-
0-300 times/s
-
Communication:
-
Rs-232/usb
-
Certification:
-
IECEE
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
FuJian,China
-
Brand Name:
-
DeXing
-
Model Number:
-
DX330
-
Accuracy:
-
1nt
-
Respond frequency:
-
Dc
-
Preheating time:
-
15mins
-
Sampling rate:
-
0-300 times/s
-
Communication:
-
Rs-232/usb
-
Certification:
-
IECEE
DX-530 fluxgate magnetometer
For Laboratory
Introduction

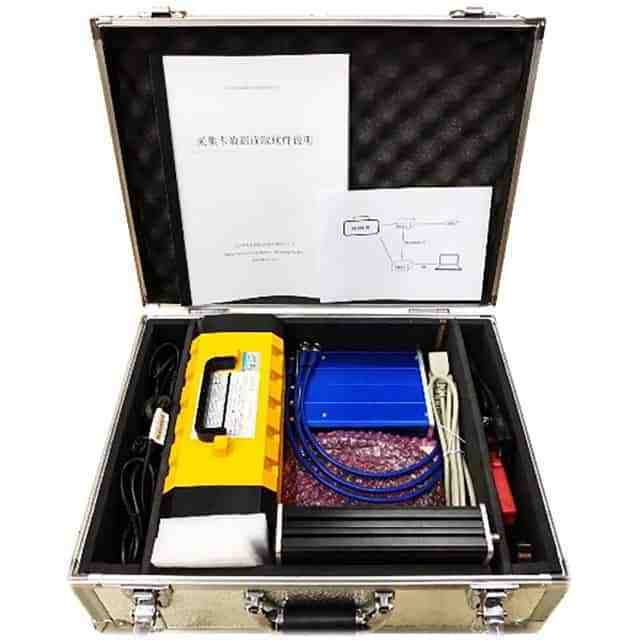

DX-530 fluxgate magnetometers is a kind of instrument which can accurately measure weak static and low frequency vector magnetic field. The DX-530 flux gate meter is equipped with two 220v 50hz power supply interfaces which can supply power to the equipment in the kit. The power supply unit can supply power to the fluxgate and provide the same gate signal output interface. The acquisition unit can collect the fluxgate signal output by the power supply unit. The computer can read and save the data collected by the acquisition unit. The fluxgate probe can measure the data in the measuring range magnetic field, a series of supporting equipment and documents (power adapter of portable computer, power adapter of acquisition card, bnc connecting wire, network cable, software instructions, schematic diagram of line connection, etc.), triangle bracket is used to fix the probe outdoors, data reading software is installed in the computer to read and collect data, so as to facilitate your accurate measurement.
Parameters
|
DX-530
|
|
|
|
Acquisition frequency
|
10-60k hz
|
|
|
Resolution
|
0.1nt
|
|
|
Continuous working time
|
Above 3 hours
|
|
|
Number of data stores
|
Save more than 10w pieces continuously by computer
(depending on computer configuration) |
|
|
Laptop
|
ThinkPad x270
|
|
|
Fluxgate probe
|
Barrington mag-690 (it can be replaced in special use environment such
as high temperature and waterproof) |
|
|
Suitcase size
|
46*19*37cm
|
|
Notes: triangular bracket may affect the measurement results.
Work information
Schematic diagram of line connection
The acquisition unit and the power supply unit are powered by the mobile power supply; the fluxgate probe is connected to the power supply unit through its own 15 pin connection line; the power supply unit is connected to the acquisition unit through three bnc signal lines; the acquisition unit is connected to the computer through the network cable; the computer is connected to the software connection acquisition unit for data reading; the computer can be charged through the mobile power supply when the computer power is insufficient. Through the computer software, the real-time waveform and value can be observed, and the saved data can be viewed, exported, spectrum analysis and other operations.
