Quick Details
-
Rated Lifting Moment:
-
11520
-
Max. Lifting Height:
-
136m
-
Span:
-
9.0mX8.5m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
SANY
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
hydraulic mobile floor crane
-
Capacity- Max. lifting capacity:
-
220t
-
Dimensions- Overall length:
-
15530mm
-
Dimensions- Overall width:
-
3000mm
-
Dimensions- Overall height:
-
4000mm
-
Rated power:
-
390kw/1800r/min
-
Rated torque:
-
2200N*m/1100rpm
-
Traveling- Wheel formula:
-
81km/h
-
Traveling- Approach angle:
-
20°
Quick Details
-
Weight (KG):
-
220000
-
Application:
-
Construction
-
Rated Loading Capacity:
-
350000kg
-
Rated Lifting Moment:
-
11520
-
Max. Lifting Height:
-
136m
-
Span:
-
9.0mX8.5m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
SANY
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
hydraulic mobile floor crane
-
Capacity- Max. lifting capacity:
-
220t
-
Dimensions- Overall length:
-
15530mm
-
Dimensions- Overall width:
-
3000mm
-
Dimensions- Overall height:
-
4000mm
-
Rated power:
-
390kw/1800r/min
-
Rated torque:
-
2200N*m/1100rpm
-
Traveling- Wheel formula:
-
81km/h
-
Traveling- Approach angle:
-
20°

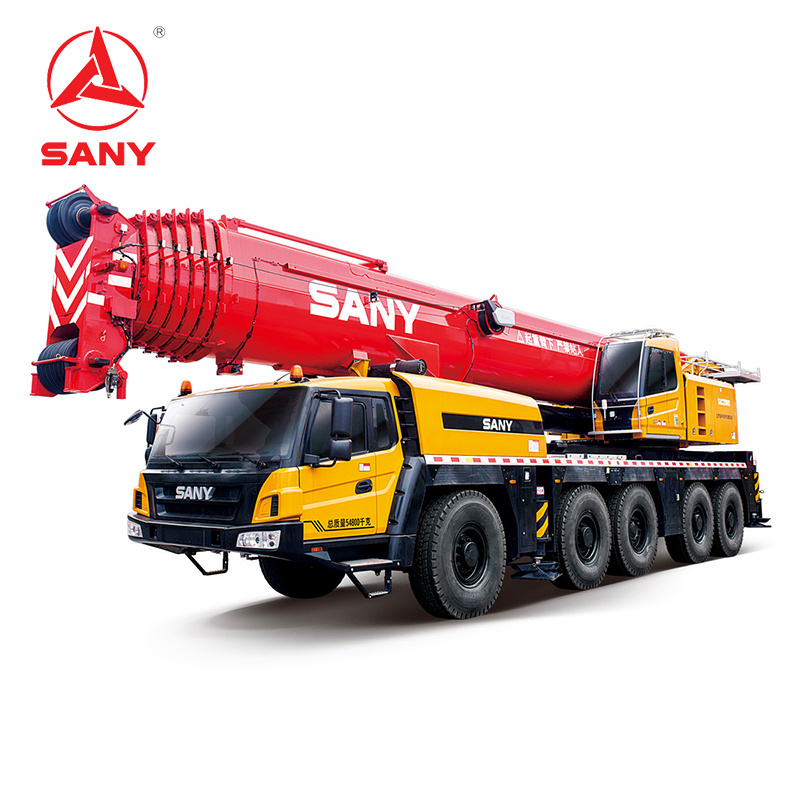

SANY SAC3000S 300Ton Hydraulic Crane of Hydraulic Mobile Floor Crane
Benefits & features
SANY SAC3000S 300 Ton All Terrain Truck Mounted Crane Excellent and stable chassis performance /chassis system
Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance.
Engine has the multimode power output function, which reduces power consumption.
The use of tipping over early-warning technology provides high stability and safety of the overall operation.
SANY SAC3000S 300 Ton All Terrain Truck Mounted Crane Highly efficient, stable, energy-saving and adjustable hydraulic system
Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility.
Unique steering buffer design is adopted to ensure stable braking operation.
SANY SAC3000S 300 Ton All Terrain Truck Mounted Crane Ultra long, super strong and highly sensitive load lifting capacity
Five-section boom of high strength steel structure and optimized U-shaped cross reduces weight significantly with higher safety rates.
Jib mounting angles are 0°, 15°and 30° which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.
SANY SAC3000S 300 Ton All Terrain Truck Mounted Crane Safe, stable, advanced and intelligent electric control system
Self-developed controller SYMC specially for engineering machinery is configured.
The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability.
Timely feedback of data information can achieve the monitoring of the overall working status in real-time.
The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
