Quick Details
-
Weight:
-
11450 kg
-
Product name:
-
Road Sweeper Truck
-
Name:
-
Road Sweeper Machine
-
Key word:
-
Street Washing Machine
-
Type:
-
High Pressure Cleaning Truck
-
Chassis brand:
-
dongfeng
-
Other name:
-
Road Sweeper
-
Usage:
-
ENVIROMENT CLEANING
-
Application:
-
City Road
-
COLOR:
-
Request Customized
-
Engine:
-
156hp
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
dongfeng
-
Dimension(L*W*H):
-
7000*2200*2700
-
Weight:
-
11450 kg
-
Product name:
-
Road Sweeper Truck
-
Name:
-
Road Sweeper Machine
-
Key word:
-
Street Washing Machine
-
Type:
-
High Pressure Cleaning Truck
-
Chassis brand:
-
dongfeng
-
Other name:
-
Road Sweeper
-
Usage:
-
ENVIROMENT CLEANING
-
Application:
-
City Road
-
COLOR:
-
Request Customized
-
Engine:
-
156hp
|
Product Name(mm)
|
Road Sweeper
|
Outline size(mm)
|
7000*2200*2700
|
|
Color
|
White
|
Engine Power(kw)
|
102
|
|
Total Mass(kg)
|
11450
|
Engine displacement(ml)
|
3200
|
|
Rated Mass(kg)
|
4210
|
Vehicle weight
|
11350
|
|
Allowable passenger
|
3
|
Warranty
|
1 years
|
|
Tire specification
|
8.25R20 14PR
|
Tire numbers
|
7 (including 1 spare tire)
|
|
Fuel type
|
Diesel
|
Garbage bin volume(cbm)
|
4 cubic (stainless steel)
|
|
Water Tank Volume
|
5 cubic (stainless steel)
|
Cleaning width (mm)
|
2800-3200
|
|
Cleaning operation speed (km/h)
|
3-15
|
Cleaning operation speed (km/h)
|
15-20
|
|
Maximum cleaning capacity (m2/h)
|
48000
|
Maximum Speed (km/h)
|
98
|
Specifications

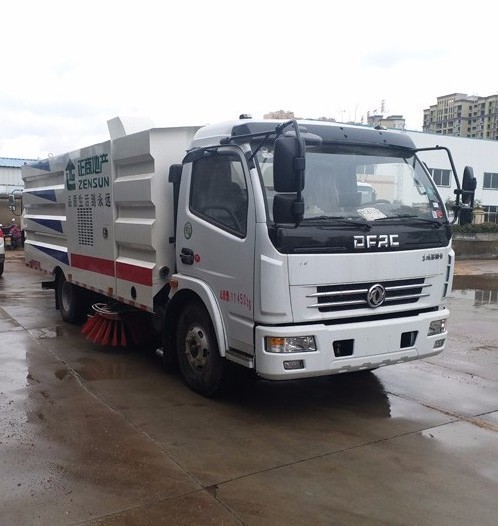

Sweeping vehicle refers to the vehicle that undertakes the cleaning, washing and cleaning of urban or national highway, highway and other roads. The vehicle has two brush discs, a wide suction disc, or four trays, and a rear suction port. Type of road operation vehicles.
The left and right vertical sweeping is a single sweeping disk, which reduces the number of sweeping brushes and the consumption of sweeping brushes, and reduces the use cost. Separate control of left and right vertical scan can realize different operation modes such as left scan, right scan and full scan. The suction width of the wide suction nozzle is 2418 mm, ensuring that the total width of the operation is more than 3.5 mm. Four suction wheels with adjustable height can adjust and ensure the reasonable gap between suction nozzle and road surface. There is a sprinkler rod in the suction nozzle, so as to arrange the high-pressure washing nozzle inside the suction nozzle as much as possible, which not only has a good cleaning effect, but also can minimize the secondary pollution caused by the high-pressure water flow flushing dirt.
The left and right sprinkler rods are installed on the suction nozzle. With the rise and fall of the suction nozzle, the structure is simple and compact, which ensures that the off-site height of the sprinkler rod remains unchanged and achieves the best cleaning effect. Open hydraulic system drives mechanical actions such as left and right vertical sweep lifting, left and right rib rotation, suction nozzle lifting, garbage bin back door opening and closing, garbage bin overturning and resetting.
For stubborn stains on the ground and narrow lanes, high-pressure pipes equipped with cars can be used to wash them.
