Quick Details
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
41000
-
Drive Wheel:
-
6X4
-
After-sales Service Provided:
-
Video technical support
-
Brand Name:
-
HOWO
-
Place of Origin:
-
China
-
Engine Brand:
-
SINOTRUK
-
Cargo Tank Dimension:
-
5600*2300*1800
-
Bucket Capacity:
-
19m3
-
Driving Side:
-
Left Hand & Right Hand
-
Driving Cab Roof:
-
Flat
-
Sunroof:
-
None
-
Seats Material:
-
Leather
-
Capacity (Load):
-
29T
Quick Details
-
Condition:
-
New
-
Horsepower:
-
371hp
-
Emission Standard:
-
Euro II
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
41000
-
Drive Wheel:
-
6X4
-
After-sales Service Provided:
-
Video technical support
-
Brand Name:
-
HOWO
-
Place of Origin:
-
China
-
Engine Brand:
-
SINOTRUK
-
Cargo Tank Dimension:
-
5600*2300*1800
-
Bucket Capacity:
-
19m3
-
Driving Side:
-
Left Hand & Right Hand
-
Driving Cab Roof:
-
Flat
-
Sunroof:
-
None
-
Seats Material:
-
Leather
-
Capacity (Load):
-
29T

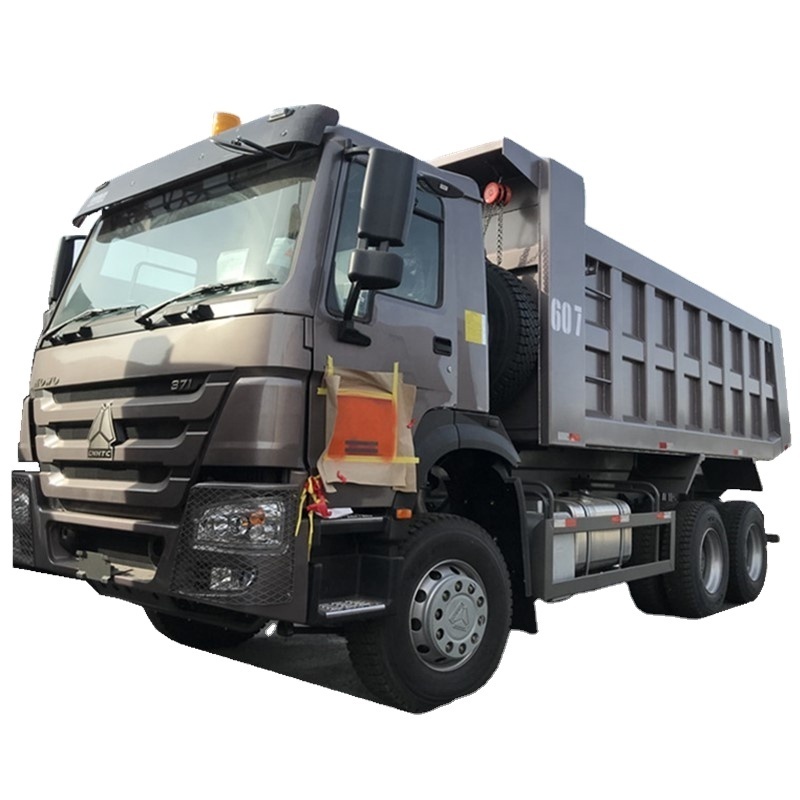

SINOTRUK HOWO Dump Truck
With its reliable and stable structure design, high bearing capacity, excellent engine force, highly stable performance, and its frame forged in construction and mining industries with adverse operating environments, it is widely used for the short-range earthwork transportation tasks for mines and construction projects. It is world widely accepted by users from South East Asia, Middle East, Africa, South America countries. Without any question, HOWO dump truck is NO. 1 option for your project.
|
Model |
ZZ 3 2 57N3847A |
|
|
Cabin |
H OWO Long Cabin , with two seats , one bed, with Air Conditioner |
|
|
Engine |
Make |
S INOTRUK |
|
|
Model |
WD615.47, Euro II emission standard |
|
|
Horse Power (Hp/rpm) |
3 71 /2 2 00 |
|
|
Max.Toruqe(Nm/rpm) |
1 460 /1 3 0 0-1 6 00 |
|
|
Displacement (L) L |
9.726 |
|
|
Type |
DIESEL , 6 -cylinder in-line with water cooling, intercooling and turbo-charging |
|
Transmission |
H W19710 , 10 speeds forward and 2 speed reverse. |
|
|
Front Axle |
H F9(9T) , Steering with double T-cross section beam |
|
|
Driving Axle |
HC16(16T) , Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles Ratio: 5.73 Option: 6.72 ratio: 6 .833 |
|
|
Suspension |
Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer ; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer |
|
|
Steering System |
ZF8118 , H ydraulic steering with power assistance |
|
|
Brake System |
Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake |
|
|
Tire |
1 2 .00 R20 |
|
|
Fuel Tank Capacity (L) |
3 00 L Diesel Tank |
|
|
Electrics |
Operating voltage: 24V, negative grounded Starter: 24V, 5.4Kw Alternator: 3-phase, 28V, 1500W Batteries: 2x12V, 165Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
|
|
Kurb Weight (Kg) |
12,420 |
|
|
Gross Vehicle Weight (kg) |
41,000 |
|
|
Overall Dimension(L*W*H)(mm) |
8545 ×2 4 96 × 3386 |
|
|
Body Dimension(L*W*H)(mm) |
560 0*2 3 00* 150 0 |
|
|
Wheelbase(mm) |
3825+1350 |
|
|
Max. Speed (km/h) |
75 |
|
