Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QYM
-
Model Number:
-
QYM-Chain Link Fence
-
Wire Gauge:
-
2.5mm-5mm
-
Materal::
-
Q195-Q235
-
Mesh:
-
50*50mm
-
Wire thickness::
-
2.5mm
-
Roll length:
-
30 Meters
-
Height::
-
1.8m
-
Surface treatment:
-
Galvanized
-
Main markets:
-
Europe,America,Asia,Afric...
Quick Details
-
Material:
-
Low-Carbon Iron Wire
-
Type:
-
Chain Link Mesh
-
Application:
-
Fence Mesh
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QYM
-
Model Number:
-
QYM-Chain Link Fence
-
Wire Gauge:
-
2.5mm-5mm
-
Materal::
-
Q195-Q235
-
Mesh:
-
50*50mm
-
Wire thickness::
-
2.5mm
-
Roll length:
-
30 Meters
-
Height::
-
1.8m
-
Surface treatment:
-
Galvanized
-
Main markets:
-
Europe,America,Asia,Afric...
QYM-Chain Link fence

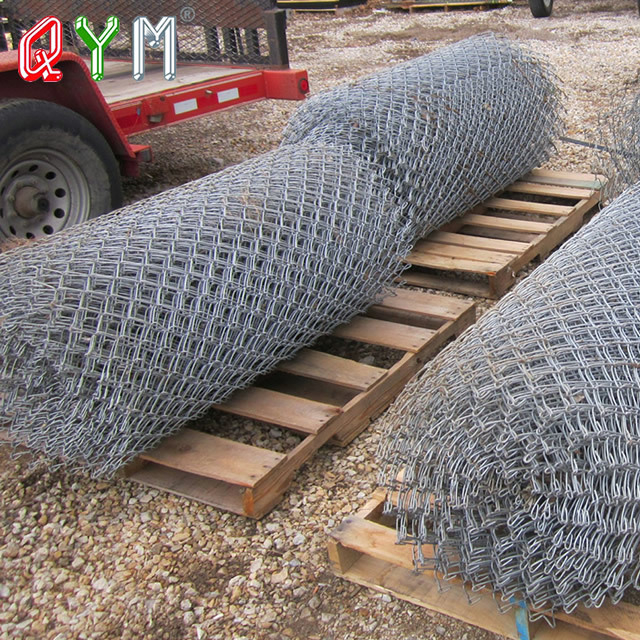

Chain link fence, also called cyclone fences or diamond mesh fence, is made from steel wire fabrics. With variety of wire gauges and mesh size, chain link fence can be designed according to different applications. Moreover, it has the features of low cost,transparency, and easy installation. Chain link mesh rolls normally come with line wire and knuckled edges. Barbed edges are more popular and with higher security.
|
Mesh
|
Wire Thickness
|
Surface Treatment
|
Panel Width
|
Height
|
|
40x40mm
50x50mm
60x60mm
65x65mm
75x75mm
|
2.0mm
-
4.8mm
|
Galvanized and
PVC coated
Or
Hot dipped galvanized
|
10m
15m
18m
20m
25m
30m
|
1200mm
|
|
|
|
|
|
1500mm
|
|
|
|
|
|
1800mm
|
|
|
|
|
|
2000mm
|
|
|
|
|
|
2100mm
|
|
|
|
|
|
2400mm
|
|
|
|
|
|
2500mm
|
|
|
|
|
|
3000mm
|
|
|
|
|
|
3600mm
|
|
Profile
|
Wall Thickness
|
Surface Treatment
|
Length
|
Rain hat
|
|
Φ60
|
1.50mm
-
5.20mm
|
Galvanized and
Electrostatic polyester powder
coated or hot dipped galvanized
|
On the basis of panel height
|
Metal
|
|
Φ75
|
|
|
|
|
Note :
Normally single branch crack or V type crack will be installed at top of the post, barbed wire and razor wire will be fixed at top of the fence to enhance secure class.
|
DIMENSIONS OF GALVANIZED CAGE WIRE
|
|
|
|
|
|
|
|
|||||||
|
Dimension
|
2.00mm
|
2.20mm
|
2.50mm
|
2.70mm
|
3.00mm
|
3.50mm
|
4.00mm
|
|||||||
|
30×30mm
|
-
|
-
|
+
|
+
|
+
|
-
|
-
|
|||||||
|
40×40mm
|
-
|
-
|
+
|
+
|
+
|
+
|
-
|
|||||||
|
50×50mm
|
-
|
+
|
+
|
+
|
+
|
+
|
+
|
|||||||
|
60×60mm
|
-
|
-
|
+
|
+
|
+
|
+
|
+
|
|||||||
|
70×70mm
|
-
|
-
|
+
|
+
|
+
|
+
|
+
|
|||||||
|
75×75mm
|
-
|
-
|
+
|
+
|
+
|
+
|
+
|
|||||||
