Name:
-

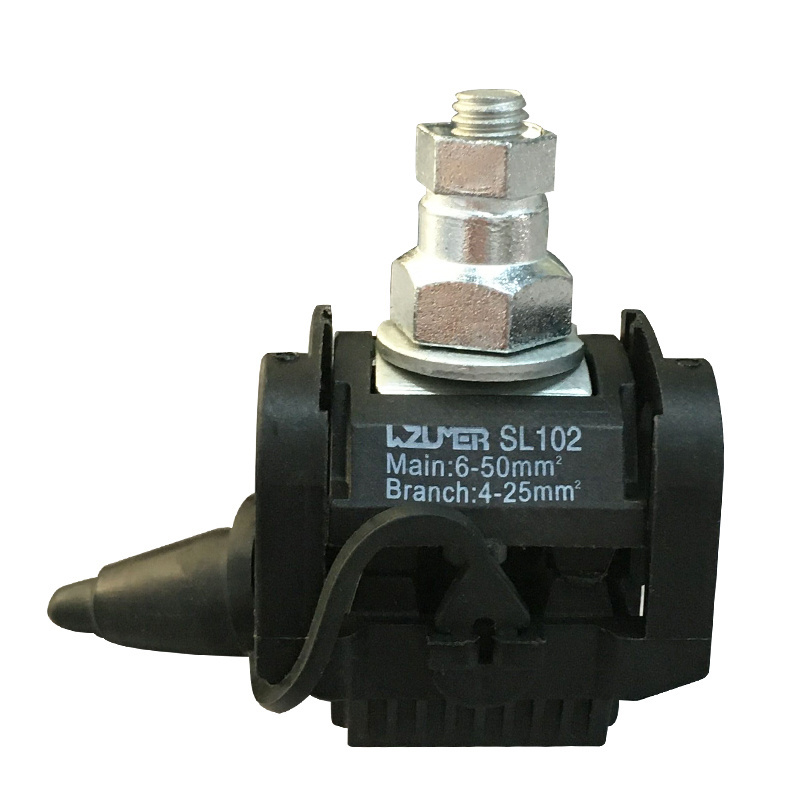

Insulation Piercing Connector
-
Material:
-
copper
-
Connector type:
-
Piercing Connector
-
Color:
-
Black
-
Voltage:
-
1kv
Quick Details
-
Type:
-
Insulation Piercing Connector
-
Application:
-
Power
-
Gender:
-
Female
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WZUMER
-
Model Number:
-
SL102
-
Name:
-
Insulation Piercing Connector
-
Material:
-
copper
-
Connector type:
-
Piercing Connector
-
Color:
-
Black
-
Voltage:
-
1kv
General of 10kv insulation piercing connector (IPC):
1. Piercing connector, simple installation, need not strip the cable coat
2. Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead.
3. Self-seam frame,wetproof,waterproof,and anti-corrosion,extend the using life of insulated lead and connector.
4. Adopted special connecting tablet, apply to joint of Cu(AI) and Cu(AI) or Cu and AI.
5. Small electric connecting resistance, connecting resistance less than 2.5 times of the resistance of branch conductor with the
same length . in accordance with the standard DL/T765.1-2001
6. Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12kV.
7. Arc surface design , apply to connection with the same (differnet) diameter, wide connection scope (0.75mm2-400mm2/td)
Details Images
Products Description
|
Selection table
|
|
|
|
|
|
|
|
|
||||||||
|
1kv Insulation Piercing Connector
|
|
|
|
|
|
|
|
|
||||||||
|
Type
|
Equivalent type
|
Main Line Section
|
Branch Section
(mm²)
|
Norminal Current
(A)
|
Dimensions
(mm)
|
Weight
(g)
|
Piercing Depth
(mm)
|
Bolt
|
||||||||
|
SL756
|
JJC888
|
0.75-6
|
0.75-6
|
41
|
21*27*23
|
10
|
1-1.5
|
1
|
||||||||
|
SL101
|
JJC-1
|
1.5-25
|
1.5-10
|
55
|
21*41*62
|
55
|
1.5-2
|
1
|
||||||||
|
SLEP
|
JJC-2
|
16-95
|
1.5-10
|
55
|
21*41*62
|
55
|
1-2
|
1
|
||||||||
|
SL102
|
JJC-3(A)
|
6-50
|
4-25
|
157
|
42*45*62
|
110
|
2.5-3.5
|
1
|
||||||||
|
SL2-95
|
JJC-3
|
16-95
|
4-35(50)
|
157
|
46*52*87
|
160
|
2.5-3.5
|
1
|
||||||||
|
SL2-150
|
JJC-4
|
50-150
|
6-35(50)
|
157
|
46*52*87
|
162
|
2.5-3.5
|
1
|
||||||||
|
SL3-95
|
JJC-5
|
25-95
|
25-95
|
214
|
50*61*100
|
198
|
3-4
|
1
|
||||||||
|
SL3-120
|
JJC-5-1
|
16-120
|
16-120
|
214
|
50*61*100
|
198
|
3-4
|
1
|
||||||||
|
SL4-150
|
JJC-6
|
(35)50-150
|
(35)50-150
|
316
|
50*61*100
|
280
|
3-4
|
1
|
||||||||
|
SL6
|
JJC-7
|
120-140
|
25-120
|
276
|
52*68*100
|
360
|
3-4
|
1
|
||||||||
|
SL7
|
JJC-7-1
|
150-240
|
10-25
|
102
|
52*68*100
|
336
|
3-4
|
1
|
||||||||
|
SL240
|
JJC-8
|
95-240
|
95-240
|
425
|
83*130*130
|
1020
|
4-5
|
2
|
||||||||
|
SL300
|
|
300
|
25-95/95-240
|
425
|
83*130*130
|
1040
|
4.5-5.5
|
2
|
||||||||
|
SL400
|
|
400
|
25-95/95-240
|
425
|
83*130*130
|
1050
|
5-6
|
2
|
||||||||
|
