Quick Details
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
China
-
Brand Name:
-
Liteharbor
-
Product name:
-
Ceiling LED Panel Light
-
LED Light Product Name:
-
Surface Mounted LED Disk Light
-
LED Disk Light Size:
-
6 Inch
-
LED Disk Light Finish:
-
White/Black/Silver
-
LED Disk Light PF:
-
> 0.9
-
LED Disk Light CCT:
-
2700K to 6000K
-
Certification:
-
ETL
-
Feature:
-
CCT Selectable
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Application:
-
Indoor Lighting
-
Lamp Body Material:
-
Plastic plates
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
China
-
Brand Name:
-
Liteharbor
-
Product name:
-
Ceiling LED Panel Light
-
LED Light Product Name:
-
Surface Mounted LED Disk Light
-
LED Disk Light Size:
-
6 Inch
-
LED Disk Light Finish:
-
White/Black/Silver
-
LED Disk Light PF:
-
> 0.9
-
LED Disk Light CCT:
-
2700K to 6000K
-
Certification:
-
ETL
-
Feature:
-
CCT Selectable

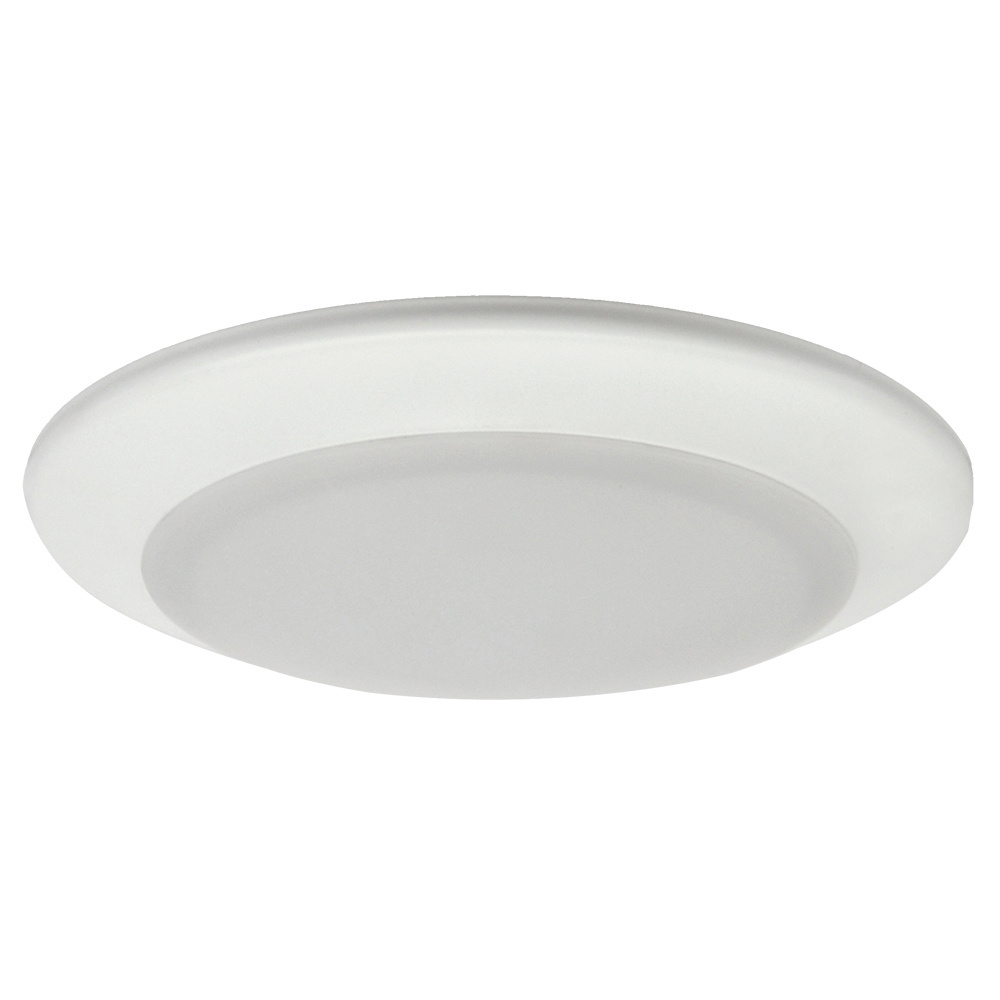

120v 14w 1200lm 6inch White Round Flat Led Light Panel Ceiling Surface Mounted LED Disk Light
Description
LED Disk Light
Modern Style Designed Low Profile Ceiling Lighting Fixture
Surface Mounted Flush Mounting or Recessed Mount, Easy to Install
LED Source
High Quality & Solution
Die Cast Aluminum Body Material, Stronger High Quality than those plastic ones, Better Anti-Rust than those steel ones
PC Lens Plastic Cover, Lighter than glass one, Not Fragile, easy to maintain.
Friendly to Ceiling, No Harm. Aluminum Body and PC Lens decided it is much lighter than other metal ones wirh glass cover.
Not Fragile, easy to maintain, Good for your storage and transportation, save your cost and reduce the risk of cargo damage.
DATA
| Item | Conventional | Available |
| Voltage | 120V |
120V or Customized |
| Watts | 14W | 15W or Customized |
| Lumens | 1200lm | 1250lm or Customized |
| Dimming | Dimmable | TRIAC, 0-10V, confirm with our factory |
| CCT | 3000K Warm White | 2700K-6000K, Customized |
| Finish | White | White or Customized |
| Shape | LED Disk Light (Round Dome) | Round |
| Size | 6inch | 6inch, 5inch, 4inch, Customized |
Specification
Surface Mounted LED Disk Light
Appearance: Disk LED Light
Installation: Surface Mounted
light source: LED
Wattage: 15W
LED quantity: 36pcs
Light source lumens: : 1250
Fixture lumens:: 1050
Cover: Translucent white PC Opal Diffuser
Driver: screw driver
Warranty: Two year limited warranty
- 120V LED disk light provides surface mount light for most construction. It fits most 4 inch junction boxes and can replace 5 inch and 6 inch recessed can lights to eliminate baffles. And it it suitable for use in dry, damp locations indoor/outdoor enclosed applications
- This fixture can be surface mounted or recessed mounted.
Steps for surface mounting
- Before installation, please set two screws in the junction box and do not drive screws to the end of junction box. Plug the white wire from the junction box to the driver white wire connector and plug the black wire to the black wire connector of the driver. Then attach the disk light to the junction box. Plug the grounding wire to the ground connector of the driver. Then use screw driver to drive the screw to the end and make the disk light tightly fix on the junction box. Finally twist diffuser on the disk light metal enclosure and lock the diffuser in place.
Steps for Recessed mounting
- Make sure to release E26 lamp base inside can to be replaced by UL listed E26 base adapter and find white and black plug from E26 base adapter. To use wire plug to connect white socket of the LED driver. And connect driver grounding wire in the can grounding screw.
- Then squeeze the springs of LED disk light to be inserted into the can and it can be done one by one fro both sides. To make sure to hook them on the disk light should be pushed on to the surface of the can to make sure that the disk light is attached to the ceiling surface. And then twist the diffuser, which should be locked in the disk metal enclosure and keep the diffuser in place of the disk light surface.
Technical Specifications
- 120V 60Hz AC operation
- 15W 36pcs LED chips
- Light source lumens: 1250; Fixture lumens: 1050
- Translucent white PC Opal Diffuser
- Two mounting screws
- screw driver sold separately
- Two year limited warranty
