Quick Details
-
Voltage:
-
Own power supply
-
Count Mode:
-
Addition count
-
Count Range:
-
1~999999/99999999
-
Count Speed:
-
10 time/s, 200 time/s
-
Iput:
-
Contact signal,the signal level
-
Reset Method:
-
Terminal reset,panel reset
-
Temperature:
-
-5℃~45℃
-
Storage Temperature:
-
-30℃~75℃
-
Installation:
-
Panel type
-
Dimensions:
-
24*48*50mm
Quick Details
-
Brand Name:
-
Manhua
-
Place of Origin:
-
China
-
Model Number:
-
DHC3J
-
Voltage:
-
Own power supply
-
Count Mode:
-
Addition count
-
Count Range:
-
1~999999/99999999
-
Count Speed:
-
10 time/s, 200 time/s
-
Iput:
-
Contact signal,the signal level
-
Reset Method:
-
Terminal reset,panel reset
-
Temperature:
-
-5℃~45℃
-
Storage Temperature:
-
-30℃~75℃
-
Installation:
-
Panel type
-
Dimensions:
-
24*48*50mm

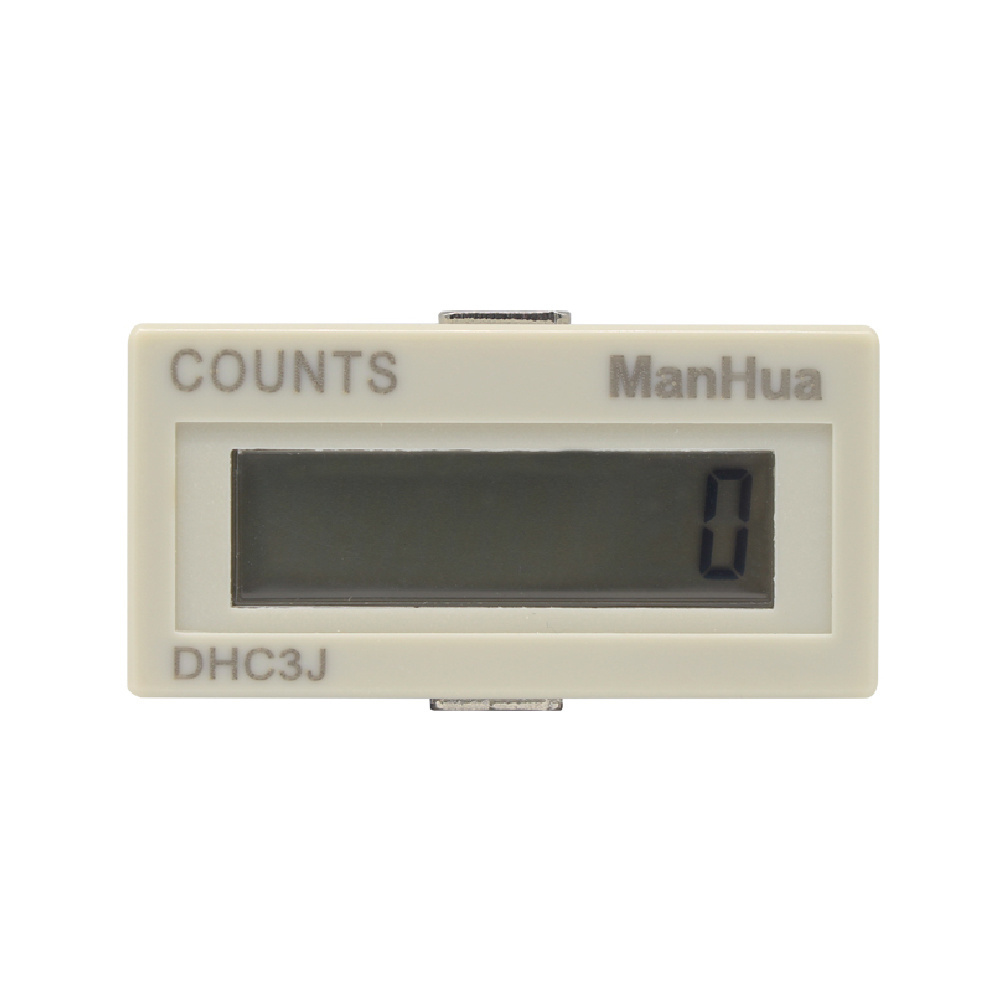

New Products 2016 Innovative Product Digital people Counter
Features
Super anti-interference, high reliability
Standard international dimensions L*W(48*24mm)
Digital filter technology, accurate counter.
Count range ,up to 999999
Specifications
|
Power supply |
Internal lithium battery, lifetime: 5 years |
Operation temperature |
-5℃—45℃ |
|
Count range |
1-999999 |
Storage temperature |
-20℃—70℃ |
|
Count speed |
Low:10times/sec(MAX) High:200times/sec(MAX) |
Reset method |
Panel reset Terminal reset reset time≥0.05sec |
|
Count type |
(1).contact count (2).voltage count |
Installation |
Panel type |
|
Counting error |
≤1 |
Hole size |
45.5mm*22.5mm |
Electric Data
|
Insulation resistance |
100MΩ(DC500V)
|
Withstand voltage |
AC2000V, 50/60hz, 1 min |
|
Anti-interference |
EFT GB/T17626-4 |
Lash |
Shock resistance;30G,X,Y,Z each three times |
|
Anti-interference |
ESD GB/T17626-3 |
Lash |
Action error:10G, Y,Z each three times |
|
Vibration |
Anti-vibration:10-55Hz,( period 1 min) amplitude 0.75mm,X,Y,Z direction each one hour |
||
|
Vibration |
Action error: Anti-vivration:10-55Hz,(period 1 minutes) amplitude 0.75mm,X,Y,Z direction each 10 minutes |
||
Connection Diagram
