Quick Details
-
Brand Name:
-
REACH
-
Model Number:
-
RH-598
-
Warranty:
-
12 Months
-
Max.wheel weight:
-
1600kg
-
Max.wheel width:
-
1050mm
-
Rim diameter:
-
14" - 42"
-
Power:
-
220V/400V/50/60HZ/1P/3P optional
-
Bead breaker force:
-
3300kg
-
Max.Torque:
-
5265N.m
-
Operation control voltage:
-
24v
-
Noise Level:
-
≤70db
-
Temperature:
-
0℃-40℃
Quick Details
-
Motor Power:
-
2.2kw
-
Power Supply:
-
220V/400V/50/60HZ/1P/3P
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
REACH
-
Model Number:
-
RH-598
-
Warranty:
-
12 Months
-
Max.wheel weight:
-
1600kg
-
Max.wheel width:
-
1050mm
-
Rim diameter:
-
14" - 42"
-
Power:
-
220V/400V/50/60HZ/1P/3P optional
-
Bead breaker force:
-
3300kg
-
Max.Torque:
-
5265N.m
-
Operation control voltage:
-
24v
-
Noise Level:
-
≤70db
-
Temperature:
-
0℃-40℃
Product Description
Model : RH-598
Features

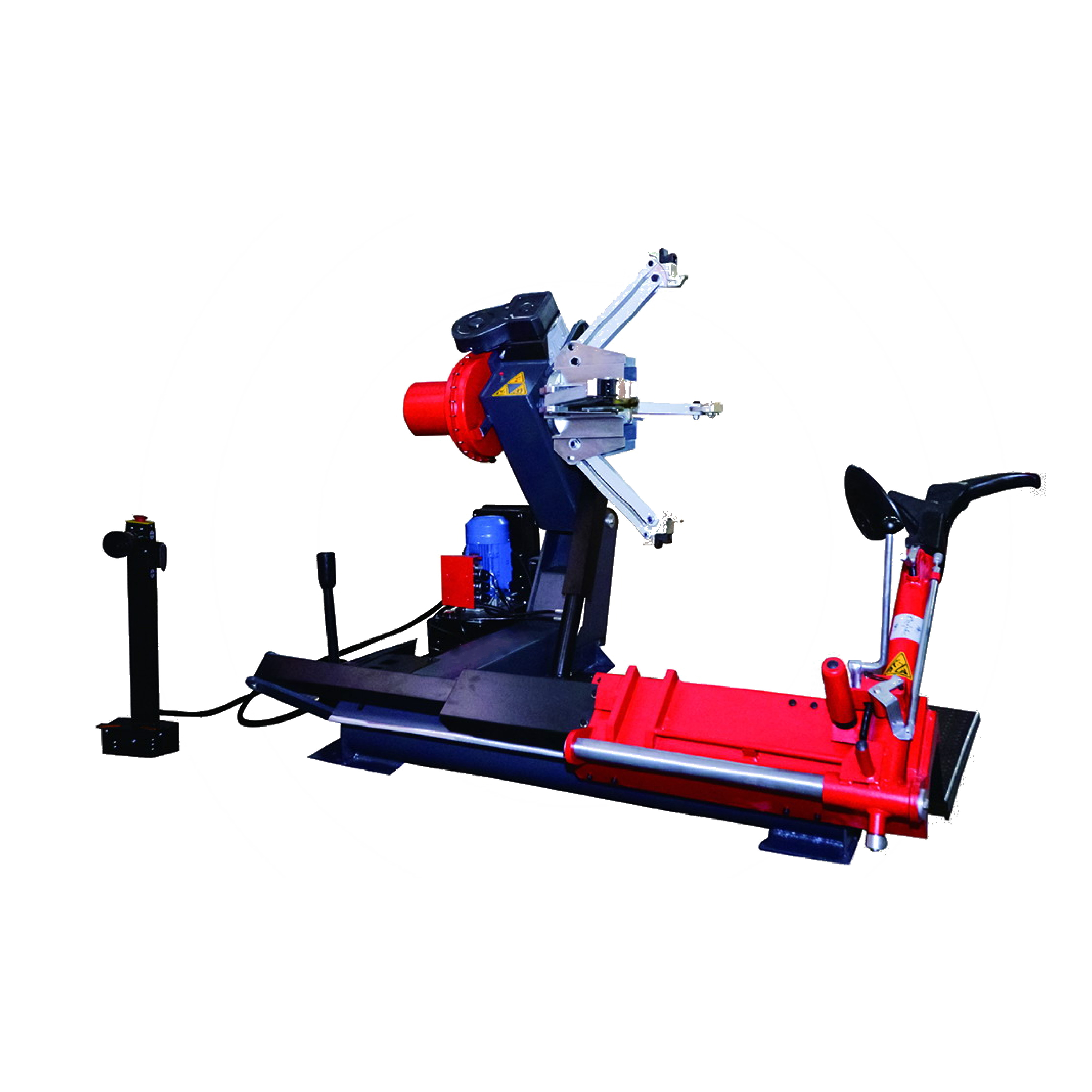

. Semi-automatic universal Truck tyre changer RH-598 for industrial,agricultural and earthmoving wheels.
. Rim capacity 14"-42".
. Italian pump.
Specification
| Operation control voltage: |
24v |
|
Power supply : |
220/400V 50/60Hz 1P/3P Optional |
|
Rim diameter: |
14"-42" |
|
Max.wheel weight : |
1600kg |
| Max.wheel width: |
1050mm |
|
Max.tyre diameter: |
2300mm |
|
Hydraulic pump motor: |
2.2kw 380v-3ph(220v optional) |
|
Gearbox motor: |
2.2kw 380v-3ph(220v optional) |
|
Bead breaker force: |
3300kg |
|
Max.Torque: |
5265N.m |
|
Machine weight approx: |
758kg |
|
Overall dimension approx: |
2500x2000mm |
|
Outside dimension : |
2130mm*1850mm*1050mm |
