- Product Details
- {{item.text}}
Quick Details
-
Features:
-
254nm ultraviolet light, 365nm reference light
-
Mounting Type:
-
Immersion
-
Description:
-
COD, TOC, BOC, TSS, Turbidity, Temperature, UV254 COD/TOC Online Analyzer
-
Model Number:
-
BX-UV254-online
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
BX-TECH
-
Theory:
-
Double beam absorbance method
-
Output:
-
RS485
-
Product Name:
-
Wireless iot UV254 COD/TOC BOD TSS Online Sensor
-
Certificate:
-
ISO 9001
-
Usage:
-
Water quality online monitoring
-
LOGO:
-
Accept customized logo
-
MOQ:
-
1PC
-
Probe size (D*L):
-
Probe size (D*L)
-
Cable Length:
-
10m (can be customized)
-
Measuring Parameters:
-
CODCr, TOC, turbidity and temperature. BOD and CODMn can be converted
-
Measuring Principle:
-
Double beam absorbance method: 254nm, 365nm reference light
-
Power Supply:
-
12V DC ±5%
Quick Details
-
Type:
-
Water quality sensor
-
Use:
-
Water quality monitoring
-
Series:
-
Reagent Free
-
Features:
-
254nm ultraviolet light, 365nm reference light
-
Mounting Type:
-
Immersion
-
Description:
-
COD, TOC, BOC, TSS, Turbidity, Temperature, UV254 COD/TOC Online Analyzer
-
Model Number:
-
BX-UV254-online
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
BX-TECH
-
Theory:
-
Double beam absorbance method
-
Output:
-
RS485
-
Product Name:
-
Wireless iot UV254 COD/TOC BOD TSS Online Sensor
-
Certificate:
-
ISO 9001
-
Usage:
-
Water quality online monitoring
-
LOGO:
-
Accept customized logo
-
MOQ:
-
1PC
-
Probe size (D*L):
-
Probe size (D*L)
-
Cable Length:
-
10m (can be customized)
-
Measuring Parameters:
-
CODCr, TOC, turbidity and temperature. BOD and CODMn can be converted
-
Measuring Principle:
-
Double beam absorbance method: 254nm, 365nm reference light
-
Power Supply:
-
12V DC ±5%
Product Overview

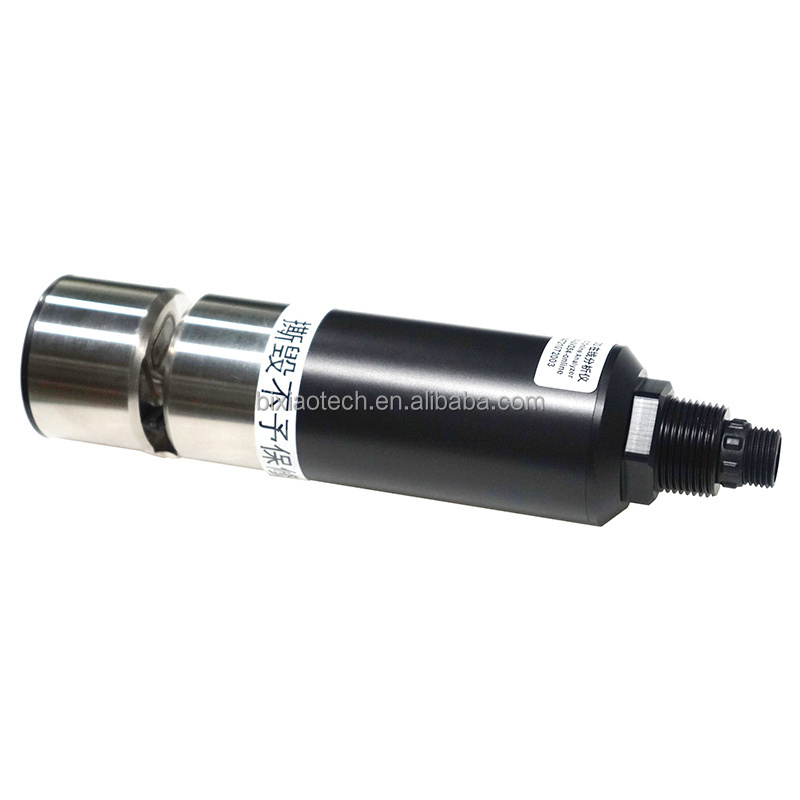

Water Quality UV254 COD/TOC BOD TSS Online Sensor
organic pollutants in the water can be measured by measuring the extent to which these organics absorb UV light at
254nm. The UV254 COD/TOC online analyzer adopts two light sources, one is 254nm ultraviolet light, the other is 365nm reference light, which can automatically compensate the optical path attenuation and the influence of turbidity, so as to achieve more stable and reliable measurement value.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
||
|
1
|
Measuring Principle
|
Dual beam absorbance method (UV254)
|
|
|
||
|
2
|
Measuring Range
|
CODCr: 0-500 mg/L; TOC: 0-250 mg/L; Turbidity: 0-500NTU; Water Temperature: 0 to 50℃
|
|
|
||
|
3
|
Measuring Accuracy
|
CODCr: < 5%; TOC: < 5%; Turbidity:＜3%; Water Temperature: 0.2℃
|
|
|
||
|
4
|
Resolution
|
CODCr: 0.01 mg/L; TOC: 0.1 mg/L; Turbidity: 0.2NTU; Water Temperature: 0.1 ℃
|
|
|
||
|
5
|
Measuring Parameters
|
CODCr(mg/L); TOC (mg/L); Turbidity (NTU); Water temperature (oC). BOD,CODMn,etc, can be converted.
|
|
|
||
|
6
|
Cleaning System
|
Automatic cleaning with cleaning brush (standard)
|
|
|
||
|
7
|
Protection Grade
|
IP68, Maximum water depth in10m.
|
|
|
||
|
8
|
Cable length
|
5 or 10 meters
|
|
|
||
|
9
|
Highest Bearing Pressure
|
1 bar
|
|
|
||
|
10
|
Overall Dimensions
|
214 mm × φ50 mm
|
|
|
||
|
11
|
Probe Weight
|
665g
|
|
|
||
|
12
|
Shell Material
|
POM and 316L
|
|
|
||
|
13
|
Power Supply Voltage
|
12±5% VDC, Electric current:＜50mA (not while cleaning).
|
|
|
||
|
14
|
Communication Mode
|
RS485, Modbus protocol
|
|
|
||
DETAIL IMAGES
