Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
CPE
-
Brand Name:
-
HUASIFEI
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
5G Outdoor Router
-
Antenna:
-
Internal
-
Chipset:
-
MT7621AT+MT7603
-
Memory:
-
16M ROM+128M RAM
-
Power:
-
POE:48V,802.11af
-
Frequency bands:
-
2.4Ghz-2.5Ghz
-
Interface:
-
1 * 10/100/1000M Auto MDI/MDIX RJ45 LAN port 1 * SIM Card Socket
-
Support:
-
IP67 outdoor waterproof
-
Network:
-
5G+4G LTE
-
Keywords:
-
5G Modem Wifi Router
Quick Details
-
Max. LAN Data Rate:
-
1750Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G & 5G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
CPE
-
Brand Name:
-
HUASIFEI
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
5G Outdoor Router
-
Antenna:
-
Internal
-
Chipset:
-
MT7621AT+MT7603
-
Memory:
-
16M ROM+128M RAM
-
Power:
-
POE:48V,802.11af
-
Frequency bands:
-
2.4Ghz-2.5Ghz
-
Interface:
-
1 * 10/100/1000M Auto MDI/MDIX RJ45 LAN port 1 * SIM Card Socket
-
Support:
-
IP67 outdoor waterproof
-
Network:
-
5G+4G LTE
-
Keywords:
-
5G Modem Wifi Router

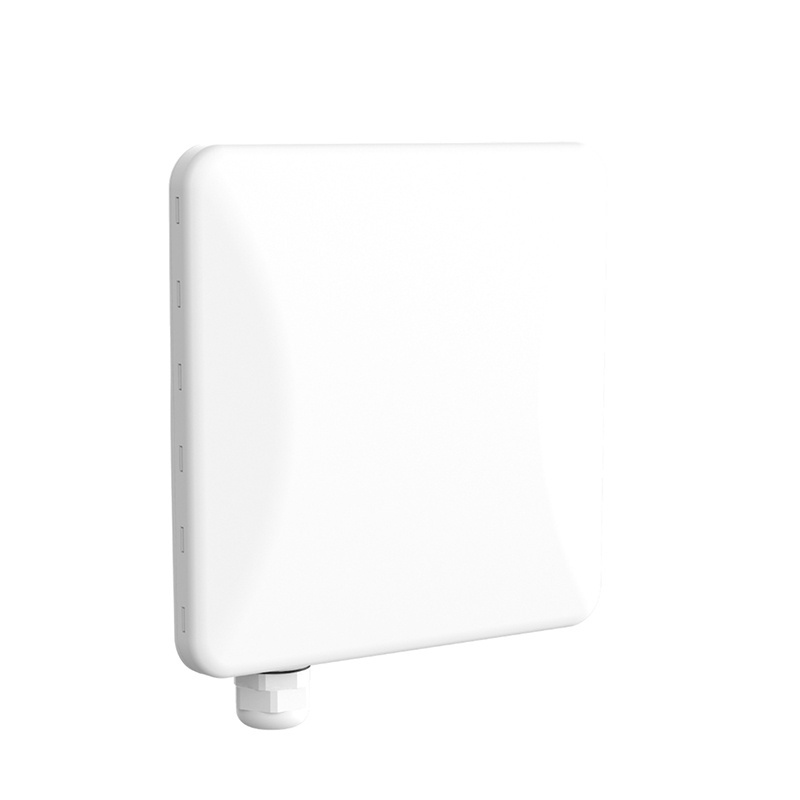

5G Outdoor Router
Single chip supports TDD NR / FDD NR / fdd-lte / tdd-lte / TD-SCDMA / WCDMA / GSM
Support sub-6ghz, N78 / n41 / N79 / N1 / n28, n77 / N3 / N8 / N20 and other global mainstream bands
It supports vonr technology and volte in 5g SA mode
5G Module
Frequency:
FDD-NR :n1,n28
FDD-NR :n41,n78,n79
FDD-LTE :Band 1,2,3,4,5,7,8,
FDD-LTE:Band 34,38,39,40,41
WCDMA:Band 1,2,5,8
|
H ardware |
||
|
CPU |
MTK MT7621AT |
|
|
Radio Chipset |
MTK MT7612 + MTK MT7603 |
|
|
Memory |
16M ROM+128M RAM |
|
|
Antenna |
Undetermined |
|
|
Interface |
1 * 10/100/1000M Auto MDI/MDIX RJ45 LAN port
|
|
|
Button |
1 * Reset |
|
|
LED |
1 *LAN ,1*2.4G,1*5.8G, 1*4G,1*Power,1*Internet |
|
|
Power |
POE:24V,802.11af |
|
|
RF parameter |
||
|
Wireless Data Rate |
1167Mbps:2.4G(2T2R) 300Mbps+5G(2T2R) 867Mbps |
|
|
Frequency |
2.412 ~ 2.472 GHz 5.15 ~ 5.35 GHz ,5.725 ~ 5.825 GHz |
|
|
Wireless Standard |
IEEE 802.11 a/b/g/n/ac |
|
|
17dBm_802.11g_54Mbps (MAX)17dBm_802.11a_54Mbps(MAX) |
||
|
RX sensitivity |
11n : -70dBm@10% PER
11a : -72dBm@10% PER
|
|
|
Software |
||
|
Basic |
Operation Mode |
Router ,AP,WISP,Repeater |
|
ISP |
3G/4/5G ,WAN |
|
|
DHCP |
DHCP sever ,Relay,Client List |
|
|
Vrtual Server |
Port Forwarding ,DMZ,UPnP |
|
|
Firewalls |
IP/ MAC/URL Filter ,Remote Control |
|
|
DDNS |
Support |
|
|
QoS |
IP/MAC |
|
|
Static Route |
Support |
|
|
LOG |
Support |
|
|
Others |
QIG |
Support |
|
Network Switch |
Support |
|
|
Network Detection |
Support |
|
|
5G Module |
||
|
Frequency |
FDD-NR :n1,n28 |
|
|
FDD-NR :n41,n78,n79 |
||
|
FDD-LTE :Band 1,2,3,4,5,7,8, |
||
|
FDD-LTE:Band 34,38,39,40,41 |
||
|
WCDMA:Band 1,2,5,8 |
||
|
Data Rate |
NR Sub6 SA: 1.7Gbps/250 Mbps (DL/UL) |
|
|
NR Sub6 EN-DC: 1.8Gbps/200 Mbps (DL/UL) |
||
|
WCDMA: 42Mbps/11 Mbps (DL/UL |
||
|
LTE: 600Mbps/150 Mbps (DL/UL) |
||
