82152 AZ 15 psi Economic Digital Manometer features:
* Portable digital gauge/differential pressure meter
* 99 points manual memories with review function
* Hold function, Maximum / Minimum, Low battery indicator
* Display pressure change from baseline
* Over-range indication with error messages
* Blue backlight function for dark area
* Auto power off disablement
* 11 units for selection (metric, imperial)
* Accumulative time shows in recording period
* PC interface available for real time download
* 2 size metal lug available: 4 mm & 8 mm
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
AZ82152
-
Name:
-
Lino 82152 Digital Differential manometer Pressure Meter Tester
-
psi Range (Resolution):
-
±15.000 (0.001)
-
Accuracy (10~30℃):
-
±1.0% of full scale
-
Response Time:
-
0.5 second
-
Compensated Temperature Range:
-
10~30℃
-
LCD Size:
-
54(L) * 32.5(W) mm
-
Operating Temperature:
-
0~50℃
-
Operating RH%:
-
Humidity <80%
-
Battery:
-
6 PCS AAA batteries
Quick Details
-
Warranty:
-
1Y
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Lino
-
Model Number:
-
AZ82152
-
Name:
-
Lino 82152 Digital Differential manometer Pressure Meter Tester
-
psi Range (Resolution):
-
±15.000 (0.001)
-
Accuracy (10~30℃):
-
±1.0% of full scale
-
Response Time:
-
0.5 second
-
Compensated Temperature Range:
-
10~30℃
-
LCD Size:
-
54(L) * 32.5(W) mm
-
Operating Temperature:
-
0~50℃
-
Operating RH%:
-
Humidity <80%
-
Battery:
-
6 PCS AAA batteries
Product Description
Lino

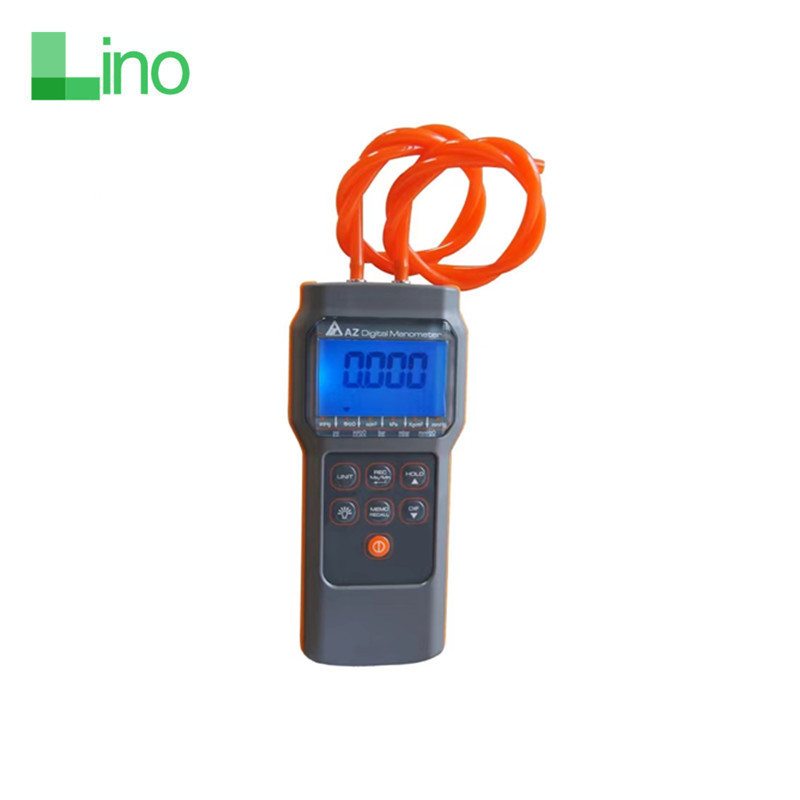

AZ82152 Digital Manometer can be operated by the batteries, which could be help user to measure the air differential pressure easily. The LCD of this manometer is divided into two distinct section, the large Primary screen would show the air pressure value, and the small bottom screens would show the relative clock.
Lino AZ82152
Differential Pressure Meter could measure the gauge pressure with reference to ambient pressure or differential pressure between pressures. It is the ideal tool for HVAC/R technicians measuring pressure level, medical equipment, computer peripherals and pneumatic controls.
There are 11 pressure units could be selected for imperial and metric with 82152 AZ Gauge Pressure Meter, including the psi, kPa, mmHg, Kg/cm2, mbar(hpa), bar, inH2O, mmH2O, inHg, ftH2O and Oz/inch2, which could be applied for Pharmaceutical, Chemical/Petrochemical, Food and Power Industry.
Features
Features
Specification
|
Model
|
82152
|
|
psi Range (Resolution)
|
±15.000 (0.001)
|
|
kPa Range (Resolution)
|
±103.42 (0.01)
|
|
mmHg Range (Resolution)
|
±775.7 (0.1)
|
|
Kg/cm2 Range (Resolution)
|
±1.055 (0.001)
|
|
mbar (hpa) Range (Resolution)
|
±1034.2 (0.1)
|
|
bar Range (Resolution)
|
±1.034 (0.001)
|
|
inH2O Range (Resolution)
|
±415.20 (0.01)
|
|
mmH2O Range (Resolution)
|
±10546 (1)
|
|
inHg Range (Resolution)
|
±30.5 (0.001)
|
|
ftH2O Range (Resolution)
|
±34.6 (0.001)
|
|
oz/inch2 Range (Resolution)
|
±240.00 (0.01)
|
|
Accuracy (10~30℃)
|
±1.0% of full scale
|
|
Response Time
|
0.5 second
|
|
Compensated Temperature Range
|
10~30℃
|
|
LCD Size
|
54(L) * 32.5(W) mm
|
|
Operating Temperature
|
0~50℃
|
|
Operating RH%
|
Humidity ＜80%
|
|
Storage Temperature
|
-20~50℃
|
|
Storage RH%
|
Humidity ＜90%
|
|
Meter Size
|
169(L) * 78.3(W) * 34.4(H) mm
|
|
Weight
|
~200g
|
|
Battery
|
6 PCS AAA batteries
|
|
Standard Package
|
Meter, Battery, Manual,
Connection Hose, Hard Carry Case |
