Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-

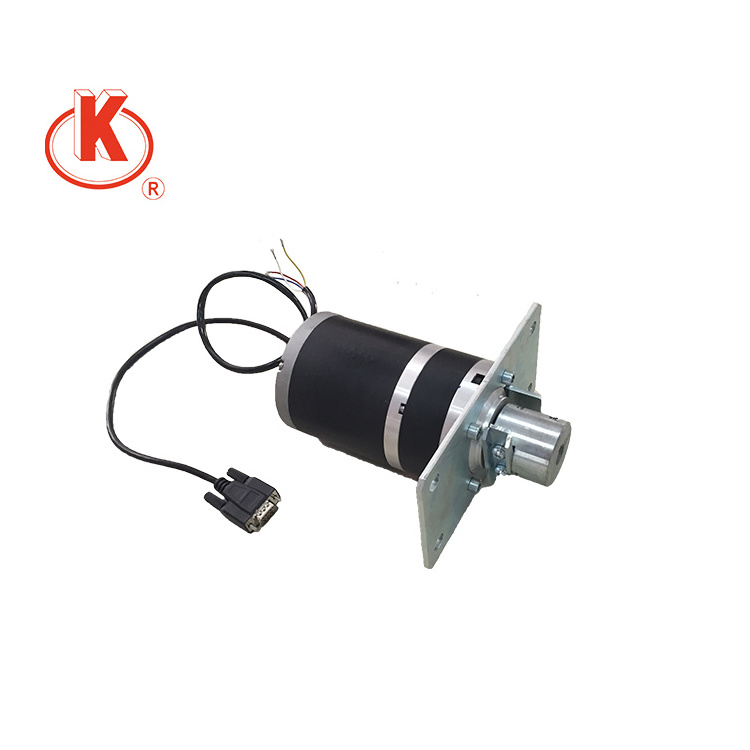

SOK Motor- Durable low speed high Torque dc Gear Motor
-
Model Number:
-
90TYJ060D8-2G6T01- Durable low speed high Torque dc Gear Motor
-
Voltage(V):
-
48V
-
Output Power:
-
24W, 24W
-
Torque:
-
15N.m
-
low speed high Torque dc Gear Motor:
-
48V 90mm Durable Low Speed High Torque DC Gear Motor
-
Rated Voltage:
-
48VDC ± 10%
-
Rated Current:
-
2.0A
-
Max.Speed:
-
30r/min
-
Output Torque:
-
15N.m
-
Drive:
-
DC Servo Drive
-
Insulation Class:
-
F
-
Protection Grade:
-
IP42
-
Weight:
-
3.4kg
Quick Details
-
Speed(RPM):
-
30rpm
-
Continuous Current(A):
-
2.0A
-
Efficiency:
-
Other
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SOK Motor- Durable low speed high Torque dc Gear Motor
-
Model Number:
-
90TYJ060D8-2G6T01- Durable low speed high Torque dc Gear Motor
-
Voltage(V):
-
48V
-
Output Power:
-
24W, 24W
-
Torque:
-
15N.m
-
low speed high Torque dc Gear Motor:
-
48V 90mm Durable Low Speed High Torque DC Gear Motor
-
Rated Voltage:
-
48VDC ± 10%
-
Rated Current:
-
2.0A
-
Max.Speed:
-
30r/min
-
Output Torque:
-
15N.m
-
Drive:
-
DC Servo Drive
-
Insulation Class:
-
F
-
Protection Grade:
-
IP42
-
Weight:
-
3.4kg
Product Application of Durable low speed high Torque dc Gear Motor
The motor consists of a PM synchronous motor and high reliable planetary gear box. It features compact construction, constant speed, and high torque. The motor has certain holding torque, if they are excited by DC power, they will produce high holding torque.
There is an incremental optical encoder installed at rotor, and driving by a servo controller. The motor can be positioned accurately, speed controller and auto programmed.
This motor is mainly used at industry automation, electric valve, packing, printing and medical application. And it also can be used at intelligent barrier gate mechanism as drive control motor.
Application of Durable low speed high Torque dc Gear Motor
1) Industry Automation
2) Electric Valve Actuators
3) Packaging&Printing Machine
4) Textile and Medical Machinery
5) Intelligent Swing/wing Gates Mechanism as drive control motor
Electric motor parameter of Durable low speed high Torque dc Gear Motor
Note:
The typical specifications below are just for your reference. Motors' voltage ,frequency, speed ,torque and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.
Ambient condition of Durable low speed high Torque dc Gear Motor
2.Relative humidity:≤90%；
3.Atmospheric pressure :55KPa（4000m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact: 150m/s 2
Dimension of Durable low speed high Torque dc Gear Motor
