WD-6H320C  Automatic A3 size Adhesive sticker paper Slitting machine
WD-6H320C  Automatic A3 size Adhesive sticker paper Slitting machine
WD-6H320C  Automatic A3 size Adhesive sticker paper Slitting machine
WD-6H320C  Automatic A3 size Adhesive sticker paper Slitting machine
WD-6H320C  Automatic A3 size Adhesive sticker paper Slitting machine
WD-6H320C  Automatic A3 size Adhesive sticker paper Slitting machine
WD-6H320C  Automatic A3 size Adhesive sticker paper Slitting machine
WD-6H320C  Automatic A3 size Adhesive sticker paper Slitting machine

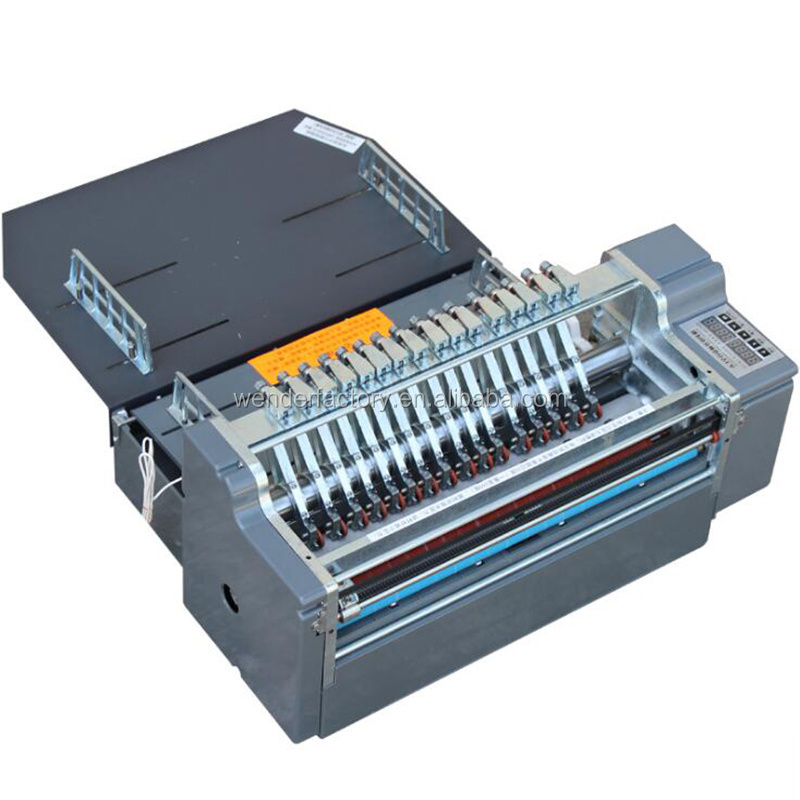

WD-6H320C Automatic A3 size Adhesive sticker paper Slitting machine

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1200
≥50 Pieces
US $1000
≥100 Pieces
US $900
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
COLORDOWELL
Voltage:
220V/110V, AC220V /110V
Dimension(L*W*H):
600*420*220mm
Weight:
19 kg, 19kg
PLC Brand:
other
Product name:
paper Slitting machine
Model:
WD-6H320C
Cutting width:
120-320mm
Cutting Length:
250-500mm
Min cutting width:
15mm
Min cutting length:
10mm
speed:
11000 times/h
Power:
50W

Quick Details

Type:
Paper Cutting Machine
Production Capacity:
Other
Max. workable width:
Other
Place of Origin:
Zhejiang, China
Brand Name:
COLORDOWELL
Voltage:
220V/110V, AC220V /110V
Dimension(L*W*H):
600*420*220mm
Weight:
19 kg, 19kg
PLC Brand:
other
Product name:
paper Slitting machine
Model:
WD-6H320C
Cutting width:
120-320mm
Cutting Length:
250-500mm
Min cutting width:
15mm
Min cutting length:
10mm
speed:
11000 times/h
Power:
50W

Material :
Suitable for cutting all kinds of adhesive paper, such as ordinary adhesive paper, transparent adhesive paper, coated adhesive paper, dumb silver adhesive paper, etc.

Technical Parameters
Model
WD-18Y

WD-18M

WD-6H320C
WD-6H320
Paper width
199-212mm
120-320mm
Paper length
260-320mm
250-500mm
Registration method
firmware
electric eye
firmware
Min horizontal knife cut size
10mm
5mm
10mm
Horizontal knife type
tungsten steel square blade
round blade
Horizontal knife speed
11000times/h
11000times/h
Vertical knife type
tungsten steel square blade(can be used double sides)
Min vertical knife cut size
15mm
No. of vertical blades
11pcs
16pcs
Cutting Material
wide range of self-adhesive including transparent, dumb silver sticker, laminated, kraft paper, etc.
ordinary adhesive
Dimension size
400*300*180mm
600*420*300mm
N.W./G.W.
7.8kg/9kg
18kg/20kg
Packing Size
500*400*260mm
570*420*300mm
Working Voltage
110V-220V/50HZ-60HZ
