Quick Details
-
Lamp Luminous Flux(lm):
-
960
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Gravre
-
Model Number:
-
LF-RO170-A
-
Product name:
-

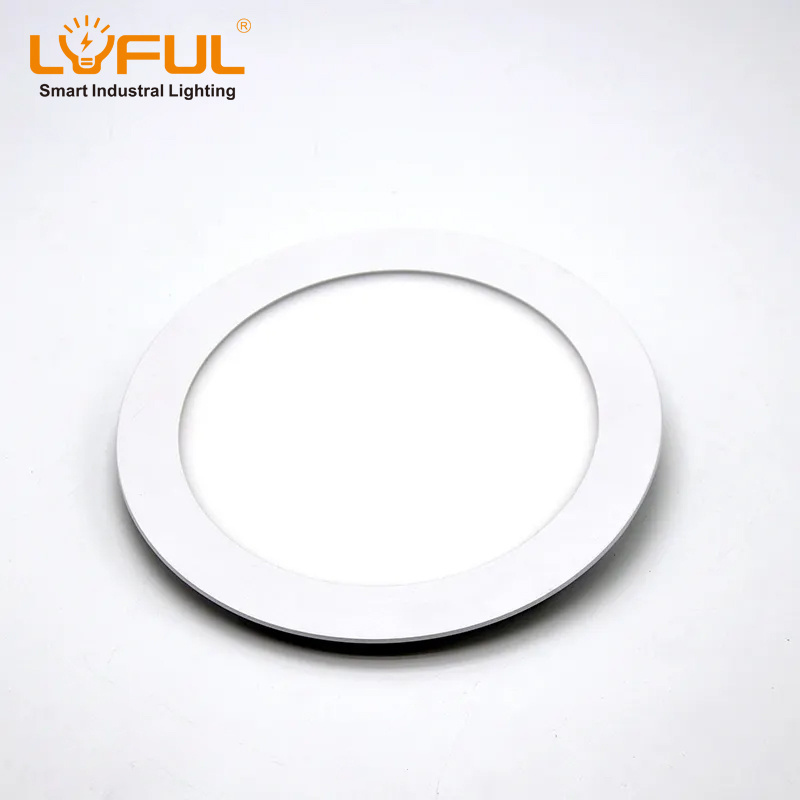

Ultra-Thin Recessed Ceiling LED Panel Light
-
Application:
-
School, hospital, indoor, home, shopping mall
-
Shape:
-
Round Shape
-
Power:
-
3/4/6/9/12/15/18/24W
-
Installation:
-
Ceiling Mounted
-
Color:
-
Warm White(2800-3500K)nature White(4000-5000K)cool White(5000-6000K)
-
Power Factor:
-
0.6/0.9
-
Size:
-
diameter 170mm , Cut-out 155mm
-
LED Light Source:
-
SMD2835
-
Warranty(Years):
-
2
Quick Details
-
Lamp Body Material:
-
Aluminum
-
Warranty(Year):
-
2-Year
-
Input Voltage(V):
-
AC85-265V
-
Lamp Luminous Flux(lm):
-
960
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Gravre
-
Model Number:
-
LF-RO170-A
-
Product name:
-
Ultra-Thin Recessed Ceiling LED Panel Light
-
Application:
-
School, hospital, indoor, home, shopping mall
-
Shape:
-
Round Shape
-
Power:
-
3/4/6/9/12/15/18/24W
-
Installation:
-
Ceiling Mounted
-
Color:
-
Warm White(2800-3500K)nature White(4000-5000K)cool White(5000-6000K)
-
Power Factor:
-
0.6/0.9
-
Size:
-
diameter 170mm , Cut-out 155mm
-
LED Light Source:
-
SMD2835
-
Warranty(Years):
-
2
Wall Mounted 12W 18W 24W Ultra-Thin Recessed Ceiling LED Panel Light
Product Description
| Item NO | LF-RO170-A |
| Wattage | 12W |
| Light source | SMD2835/3000-6500K |
| Lamp Luminous Efficiency(lm/w) | 80LM/W |
| Lamp Luminous Flux(lm) | 960LM |
| Color Temperature(CCT) | 3000-6500K |
| CRI (Ra>) | 80 |
| Input Voltage(V) | AC85-265V 50HZ/60HZ |
| LED Light Source | SMD2835 |
| Working Temperature(℃) | —20~40℃ |
| IP Ratin | IP20 |
| Size | Ø170MM |
| PF | >0.6 |
| Warranty(Years) | 2 years |
| Model | Power |
Size(mm) |
Opening(mm) | LED/PCS | Qty | Packing size(cm) | N.W/kg | G.W/kg |
| LF-RO85-A | 3W | Ø85 | Ø73 | 2835/15 | 100 | 56.5*32*33 | 0.08 | 0.1 |
| LF-RO105-A | 4W | Ø105 | Ø93 | 2835/20 | 100 | 56.5*32*33 | 0.12 | 0.16 |
| LF-RO120-A | 6W | Ø120 | Ø105 | 2835/30 | 40 | 37.5*32*28.5 | 0.14 | 0.17 |
| LF-RO145-A | 9W | Ø145 | Ø132 | 2835/45 | 40 | 31.5*32*40 | 0.19 | 0.24 |
| LF-RO170-A | 12W | Ø170 | Ø155 | 2835/60 | 40 | 44.5*32*39 | 0.26 | 0.31 |
| LF-RO200-A | 15W | Ø200 | Ø183 | 2835/75 | 20 | 25*32*43 | 0.4 | 0.48 |
| LF-RO225-A | 18W | Ø225 | Ø205 | 2835/90 | 20 | 27.5*32*48 | 0.44 | 0.52 |
| LF-RO300-A | 24W | Ø300 | Ø285 | 2835/120 | 20 | 35.5*32*64 | 0.74 | 0.86 |
