- Product Details
- {{item.text}}
Quick Details
-
Table Size:
-
2.3*1.15*1.1 m
-
Overall Dimensions:
-
2.45*1.18*2.5 m
-
Weight:
-
2750 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Self-propelled Wheelchair mobile hydraulic scissors lift platform
-
Keywords:
-
Mobile Scissor Platform Lift
-
Application:
-
Aerial Construction Work
-
Load capacity:
-
230kg
-
Color:
-
Customer Requirements
-
Key words:
-
Lift Platform Manlift
-
Lifting height:
-
6.5 m
-
Feature:
-
Easy Operation
-
Control methods:
-
Ground Control+platform Control
-
Delivery time:
-
within 10 days
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Power:
-
2.2kw
-
Table Size:
-
2.3*1.15*1.1 m
-
Overall Dimensions:
-
2.45*1.18*2.5 m
-
Weight:
-
2750 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Self-propelled Wheelchair mobile hydraulic scissors lift platform
-
Keywords:
-
Mobile Scissor Platform Lift
-
Application:
-
Aerial Construction Work
-
Load capacity:
-
230kg
-
Color:
-
Customer Requirements
-
Key words:
-
Lift Platform Manlift
-
Lifting height:
-
6.5 m
-
Feature:
-
Easy Operation
-
Control methods:
-
Ground Control+platform Control
-
Delivery time:
-
within 10 days

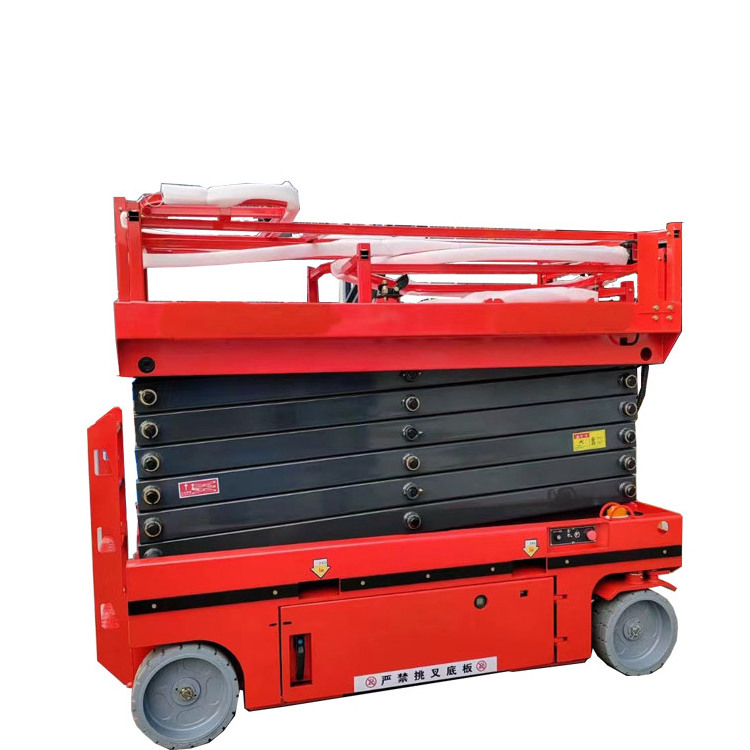

Self-propelled Wheelchair mobile hydraulic scissors lift platform for sale
Products Description
1. The operator of the lifting platform vehicle must start the lifting platform vehicle in accordance with the maintenance
regulations of the mechanical equipment after performing various checks and maintenance, and should check the working scope of the lifting platform vehicle before work to remove obstacles that hinder the turning and walking of the lifting platform vehicle.
2, the operator on the working platform should wear a safety belt, when working in the live area, the car body should be grounded according to the regulations, the lifting platform car climbing operation should be commanded by the person in charge, the person in charge should contact the lifting platform car operator in accordance with the GB5082 standard signal. The signal must be clear and accurate. Only when the personnel on and off the platform car are stable can they get off the platform car.
3, according to the stipulated load weight, it is strictly prohibited to overload operation.
4. Clean the debris around the lifting platform car and inform the nearby personnel to pay attention to safety.
5. Please clean up the debris of the lifting platform car in time after it is used, and the way is rusty. The legs can be lifted
to avoid tire damage.
6. The operator is strictly prohibited from drinking, fatigue, and concentrating on the work of the lifting platform car.
7, the use of lifting platform vehicles must be configured with specially trained, qualified, certified professional operators.
8, up and down platform vehicle operation personnel to tie safety belts, check the surrounding working environment.
9, the support is an important preparation for the operation of the lifting platform car, should choose the flat ground, such as the foundation is soft or undulating, must be used after the sleeper cushion, can be carried out.
10, lifting platform car should generally start the lower arm, the middle arm, and finally the upper arm. During the rotation
operation of the lifting platform car, the lower arm must be lifted to a certain height before the rotation can be carried out,
and the rotation should be slow, while paying attention to whether the distance between the shear arm and the platform to the equipment meets the safety needs.
regulations of the mechanical equipment after performing various checks and maintenance, and should check the working scope of the lifting platform vehicle before work to remove obstacles that hinder the turning and walking of the lifting platform vehicle.
2, the operator on the working platform should wear a safety belt, when working in the live area, the car body should be grounded according to the regulations, the lifting platform car climbing operation should be commanded by the person in charge, the person in charge should contact the lifting platform car operator in accordance with the GB5082 standard signal. The signal must be clear and accurate. Only when the personnel on and off the platform car are stable can they get off the platform car.
3, according to the stipulated load weight, it is strictly prohibited to overload operation.
4. Clean the debris around the lifting platform car and inform the nearby personnel to pay attention to safety.
5. Please clean up the debris of the lifting platform car in time after it is used, and the way is rusty. The legs can be lifted
to avoid tire damage.
6. The operator is strictly prohibited from drinking, fatigue, and concentrating on the work of the lifting platform car.
7, the use of lifting platform vehicles must be configured with specially trained, qualified, certified professional operators.
8, up and down platform vehicle operation personnel to tie safety belts, check the surrounding working environment.
9, the support is an important preparation for the operation of the lifting platform car, should choose the flat ground, such as the foundation is soft or undulating, must be used after the sleeper cushion, can be carried out.
10, lifting platform car should generally start the lower arm, the middle arm, and finally the upper arm. During the rotation
operation of the lifting platform car, the lower arm must be lifted to a certain height before the rotation can be carried out,
and the rotation should be slow, while paying attention to whether the distance between the shear arm and the platform to the equipment meets the safety needs.
Detailed Showing
Product Paramenters
|
Specification
and model
|
Maximum platform height（m）
|
Maximum working height（m）
|
Power
（kw）
|
Table siz（m）
|
Overall dimension
（m）
|
Load（kg)
|
Machine weight
(kg) |
|
SJZG-4.5（4.5米）
|
4.5m
|
6.5m
|
1.2kw
|
1.35*0.7
|
1.54*0.76*1.79
|
230
|
990
|
|
SJZG-06
|
5.8m
|
7.8m
|
3.3kw
|
1.67*0.74*1.1
|
1.85*0.76*2.2
|
230
|
1540
|
|
SJZG-08（窄8米）
|
7.8m
|
9.8m
|
3.3kw
|
2.3*0.81*1.1
|
2.45*0.85*2.3
|
230
|
2150
|
|
SJZG-08
|
8m
|
11m
|
3.3kw
|
2.3*1.15*1.1
|
2.45*1.18*2.4
|
500
|
2150
|
|
SJZG-10
|
9.8m
|
11.8m
|
3.3kw
|
2.3*1.15*1.1
|
2.45*1.18*2.5
|
320
|
2750
|
|
SJZG-12
|
11.8m
|
13.8m
|
4.5kw
|
2.3*1.15*1.1
|
2.45*1.18*2.6
|
320
|
2950
|
|
SJZG-14
|
13.8m
|
15.8
|
4.5kw
|
2.65*1.37*1.1
|
2.87*1.39*2.3
|
230
|
3980
|
|
SJZG-4.5LD(4.5m small track）
|
4.5m
|
6.5m
|
1.2kw
|
1.23*0.65
|
1.34*0.79*2.08
|
230
|
1540
|
|
SJZG-12LD(track)
|
11.8m
|
13.8m
|
4.5kw
|
2.3*1.2*1.1
|
2.8*1.6*2.7
|
500
|
3700
|
Product packaging
FAQ
1. who are we?
We are based in Jining, China, start from 2001,sell to Eastern Europe(50.00%),Southeast Asia(15.00%),Southern Europe(5.00%),Western Europe(5.00%),Mid East(5.00%),Africa(5.00%),South America(5.00%),North America(5.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
forklift,loader,excavator ,
Elevator, lifting platform and so on.
4. why should you buy from us not from other suppliers?
modern enterprise with professional R&D, manufacturing and sales various high-quality wheel loader,forklift,
electric storage truck, airport traction equipment , fast building unit, retrofitting vehicle and all kinds of engineering
machinery.
electric storage truck, airport traction equipment , fast building unit, retrofitting vehicle and all kinds of engineering
machinery.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery； Accepted Payment Currency:USD,EUR,JPY,CNY; Accepted Payment Type: T/T,L/C,D/P D/A; Language Spoken:English,Chinese
