Quick Details
-
Voltage:
-
380V
-
Power:
-
150W
-
Weight:
-
300
-
Dimension(L*W*H):
-
900x550x1200MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
YSV-3A
-
Dimension:
-
990x550x1200 mm
-
Blades size:
-
dia125mm x3
-
Blades material:
-
Imported high speed steel
-
Cutiing board thickness:
-
1-3 thickness
-
Cutting board length:
-
MAX 500mm
-
Cutting speed:
-
300mm/s
-
Cutting boards width:
-
Max 400mm
-
working pressure:
-
0.5-0.8MPa
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUSH
-
Voltage:
-
380V
-
Power:
-
150W
-
Weight:
-
300
-
Dimension(L*W*H):
-
900x550x1200MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
YSV-3A
-
Dimension:
-
990x550x1200 mm
-
Blades size:
-
dia125mm x3
-
Blades material:
-
Imported high speed steel
-
Cutiing board thickness:
-
1-3 thickness
-
Cutting board length:
-
MAX 500mm
-
Cutting speed:
-
300mm/s
-
Cutting boards width:
-
Max 400mm
-
working pressure:
-
0.5-0.8MPa

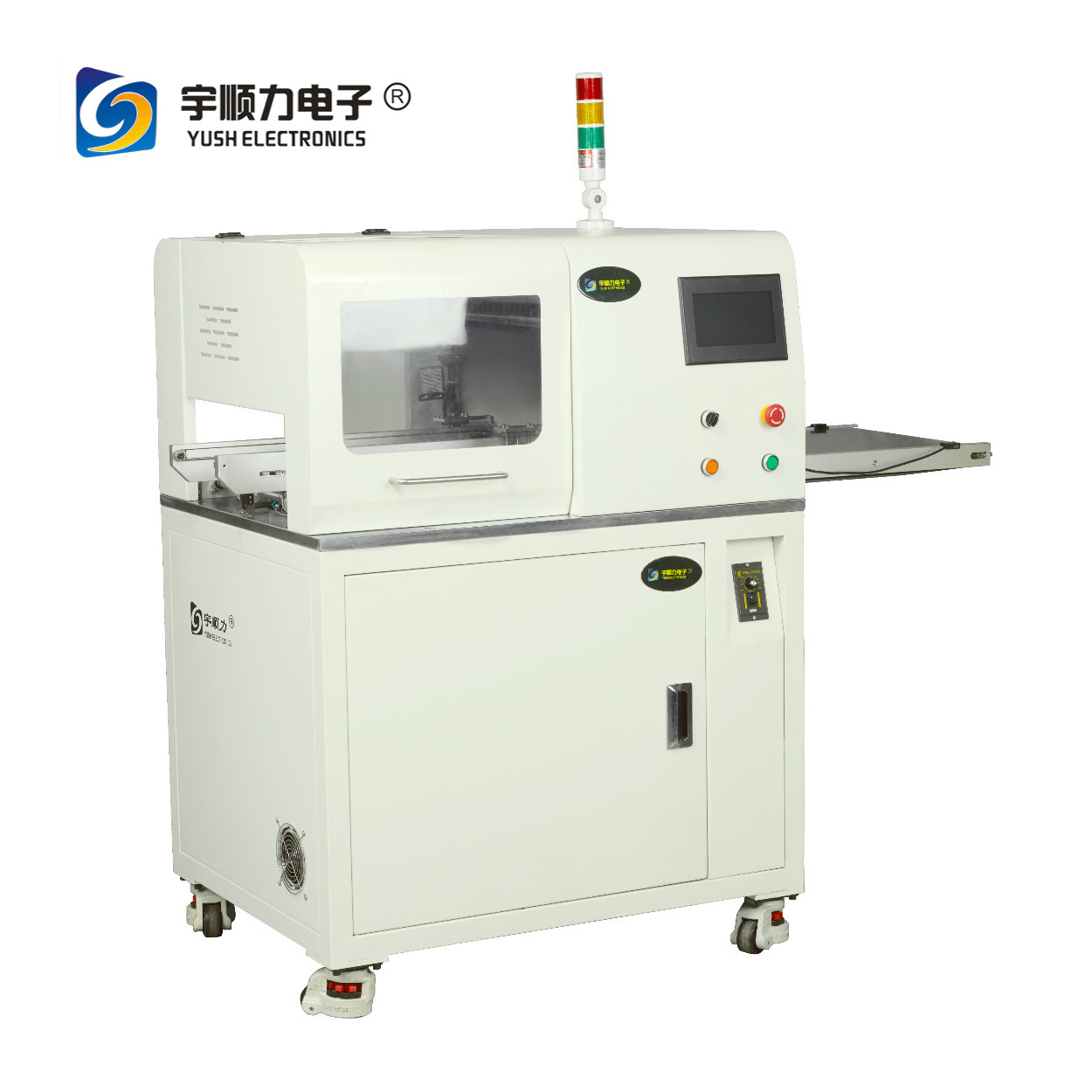

Product description: YSV-3A is a fully automatic round blades moving depneling machine that can be connected to the loader and unloader machines to achieve unmanned operation. Not only is it convenient to install, but it is also simple to operate. It saves more employees, saves time and effort. Small footprint, saving operating time.
Features:
1. High positioning accuracy.
2. The cutting board stress is small.
3. Infrared light curtain induction, high safety performance.
4. Automatic feeding board, cutting board, more efficient.
5. The machine can be connected to the upper and lower board machine, more labor.
| Model | YSV-3A |
| Name | PCB Automatic pcb depaneling machine |
| Machine size L/W/H | 990×550×1250mm |
| Blades size | Round knife diameter125mm×3mm Straight knife400mm×43.5mm×6mm |
| Blades Material | Imported high speed steel |
| Blades Brand | YUSH |
| Cutting boards thickness | One-third thickness |
| Cutting board length | 1mm-500mm |
| Cutting speed | 300mm/s |
| Cutting Board width | 1mm-400mm |
| Working pressure | 0.5-0.8mpa |
| Operating Voltage | 220V/110V Options |
| Equipment power |
150W |
| Machine weight | 300kg |
