Quick Details
-
Brand Name:
-
CHONGHONG
-
Product name:
-
Type Slag Scraper
-
Excavating Width(mm):
-
≥4200
-
Coverage(mm):
-
≥1600
-
Excavating Height (mm):
-
1800-2700
-
Excavating Depth(mm):
-
≥450
-
Uninstall Height(mm):
-
1200-1600(Can be raised)
-
Maximum discharge height:
-
1100(variable)
-
Uninstall Distance (mm):
-
1600(Can be extended or shortened)
-
Max.rotation angle(°):
-
±50
-
Overall dimension(L*W*H)(mm):
-
5600*1650*1700
Quick Details
-
Weight (KG):
-
5800
-
Marketing Type:
-
Easy operation
-
Place of Origin:
-
China
-
Brand Name:
-
CHONGHONG
-
Product name:
-
Type Slag Scraper
-
Excavating Width(mm):
-
≥4200
-
Coverage(mm):
-
≥1600
-
Excavating Height (mm):
-
1800-2700
-
Excavating Depth(mm):
-
≥450
-
Uninstall Height(mm):
-
1200-1600(Can be raised)
-
Maximum discharge height:
-
1100(variable)
-
Uninstall Distance (mm):
-
1600(Can be extended or shortened)
-
Max.rotation angle(°):
-
±50
-
Overall dimension(L*W*H)(mm):
-
5600*1650*1700
Products Description

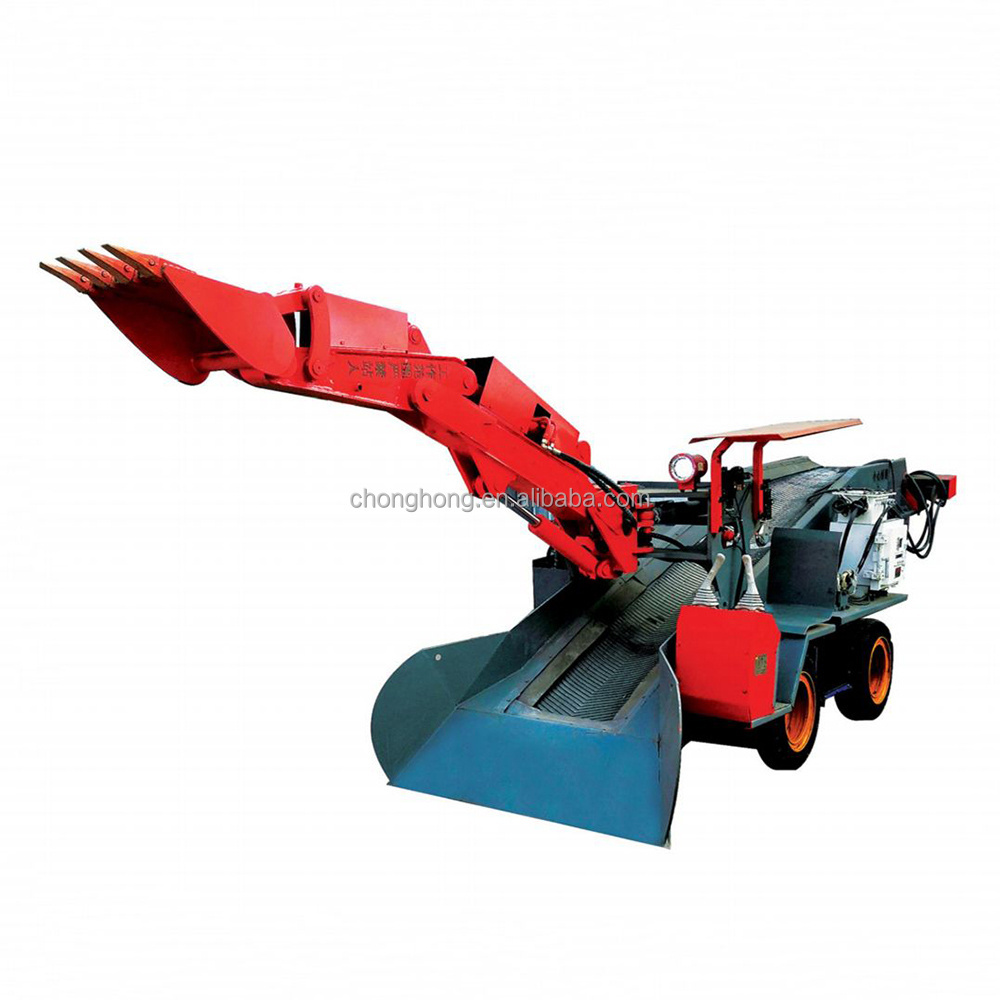

Tire Conveyor Belt Type Slag Scraper (60LS)
Type:60LS
Excavating Width(mm):≥4200
Coverage(mm):≥1600
Excavating Height (mm):1800-2700
Excavating Depth(mm):≥450
Uninstall Height(mm):1200-1600(Can be raised)
Maximum discharge height:1100(variable)
Uninstall Distance (mm):1600(Can be extended or shortened)
Max.rotation angle(°):±50
Weight(T):5.8
Overall dimension(L*W*H)(mm):5600*1650*1700
Loading Capacity(m³/h):≈60
Min.turning radius (mm):4600
Gradient(°):≤10(Hard ground)
Traveling Speed(m/min): tall:4.5 low:2.0
Ground clearance(mm):200
Nominal working pressure(MPa):20
Motor Power(kw):18.5/22
Max.materials by size(L*W*H)(mm):810*580*420
Applicable section(W*H)(m):1.8*1.8
Type:80LS
Excavating Width(mm):≥4800
Coverage(mm):≥1850
Excavating Height (mm):≥2800
Excavating Depth(mm):≥800
Uninstall Height(mm):1350-1650(Can be raised)
Maximum discharge height:1100(variable)
Uninstall Distance (mm):1600(Can be extended or shortened)
Max.rotation angle(°):±50
Weight(T):7.2
Overall dimension(L*W*H)(mm):6000*1700*1800
Loading Capacity(m³/h):≈80
Min.turning radius (mm):5000
Gradient(°):≤10(Hard ground)
Traveling Speed(m/min): tall:4.5 low:2.0
Ground clearance(mm):260
Nominal working pressure(MPa):20
Motor Power(kw):22/30
Max.materials by size(L*W*H)(mm):810*580*500
Applicable section(W*H)(m):2.2*2.2
