Quick Details
-
Model Number:
-
TT150H
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Electric Screen
-
Size:
-
150"
-
Application:
-
Business Presentation,Hotel,Education,Exhibition,Party,Concert
-
View angle:
-
160 degree
-
Gain:
-
1.0-1.1
-
Warranty:
-
1Year
-
Viewing Area(Cm):
-
331X186
-
Frame material:
-
steel
-
Main application:
-
Cinema&Education&Business presentations&Cinema
-
Certificates:
-
ROHS&CE
Quick Details
-
Style:
-
Electric
-
Portable:
-
Yes
-
Brand Name:
-
ZC
-
Model Number:
-
TT150H
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Electric Screen
-
Size:
-
150"
-
Application:
-
Business Presentation,Hotel,Education,Exhibition,Party,Concert
-
View angle:
-
160 degree
-
Gain:
-
1.0-1.1
-
Warranty:
-
1Year
-
Viewing Area(Cm):
-
331X186
-
Frame material:
-
steel
-
Main application:
-
Cinema&Education&Business presentations&Cinema
-
Certificates:
-
ROHS&CE
Product Description

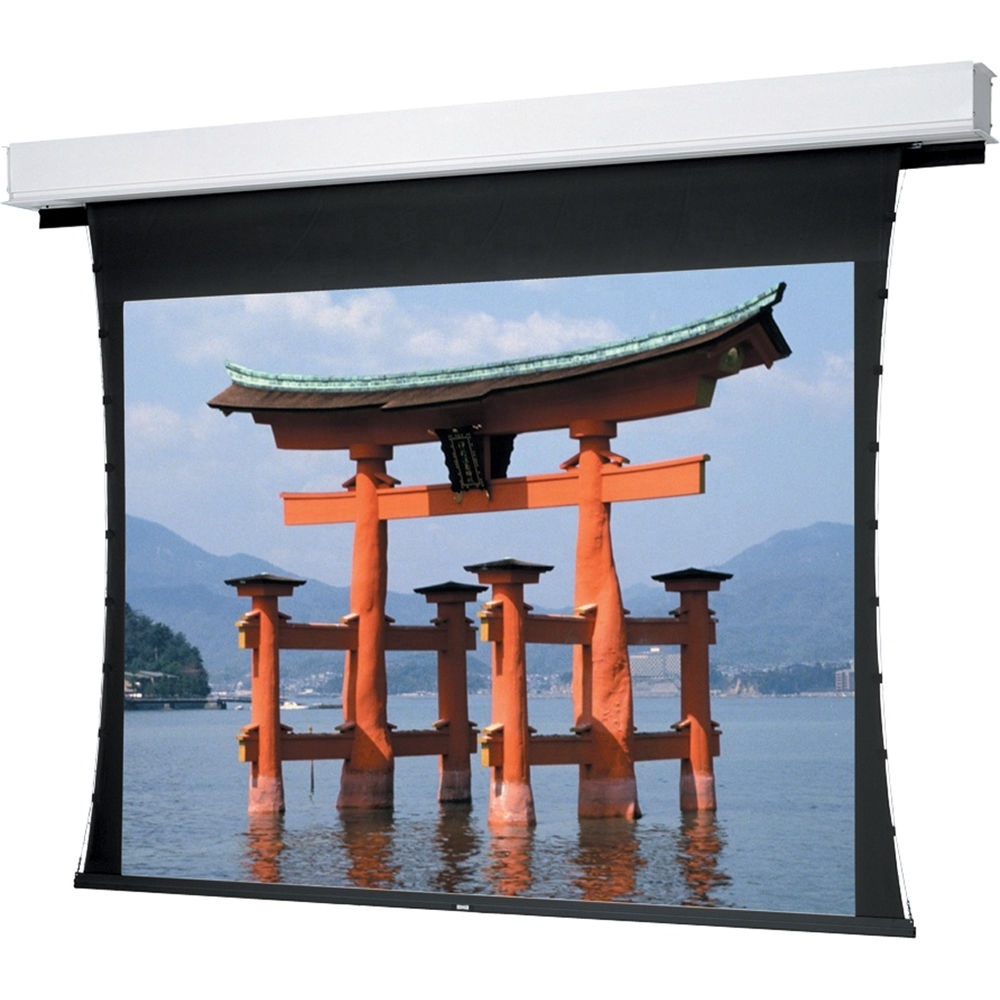

Motorized Tab-Tensioned Screens are perfect for home theater or high level entertainment and business centers. Tensioned screen is one of our best selling screen specially designed tension feature for prefect viewing angle throughout the entire screening process. Its side tensioned system ensures the perfect flat surface. The screen is widely used in home cinema, hotels, business centers, meeting rooms, entertainment centers etc。
Features
＊ Elastic auto tighten system can completely balance the surface tension of every screen lattice, making the screen viewing area as smooth as the mirror surface and avoid “V” shape
＊ High quality aluminum housing, unique design for your modern household
＊ Use HD flexible screen fabric to ensure the screen to be best flat surface
＊ Silent heavy-duty Tubular motor to ensure the screen stable and long using life, low noise keeps silent in the room
＊ Ease of installation, tracking wall mounted or ceiling hanged installation way
＊ Standard with Remote Controller , the whole screen and the application height are preset by the remote. The effective control range can be up to 25 meters, with a combination of up, down and stop press can conduct all movement of the screen.
Fabrics Available
Screen parameters
|
Model No.
|
Size
|
Format
|
View Area(mm)
|
|
drop black border
|
Length of casing
|
packing size
|
Weight
|
|
|
|
|
|
(W)
|
(H)
|
|
|
|
|
|
|
|
Inch
|
|
Unit: mm
|
|
Unit: mm
|
Unit: mm
|
Unit: mm
|
Unit: Kgs
|
|
|
TTV84
|
84
|
4:3
|
1710
|
1280
|
400
|
2005
|
2135x21x16
|
18.00
|
|
|
TTV92
|
92
|
|
1870
|
1400
|
400
|
2165
|
2295x21x16
|
22.00
|
|
|
TTV100
|
100
|
|
2030
|
1520
|
400
|
2325
|
2455x21x16
|
24.00
|
|
|
TTV120
|
120
|
|
2440
|
1830
|
400
|
2735
|
2865x21x16
|
26.00
|
|
|
TTV150
|
150
|
|
3050
|
2290
|
400
|
3345
|
3475x21x16
|
34.00
|
|
|
TTH84
|
84
|
16:9
|
1860
|
1050
|
750
|
2155
|
2285x21x16
|
18.00
|
|
|
TTH92
|
92
|
|
2040
|
1150
|
750
|
2335
|
2465x21x16
|
23.00
|
|
|
TTH100
|
100
|
|
2210
|
1240
|
750
|
2505
|
2635x21x16
|
25.00
|
|
|
TTH106
|
106
|
|
2350
|
1320
|
750
|
2645
|
2775x21x16
|
26.00
|
|
|
TTH120
|
120
|
|
2660
|
1500
|
650
|
2955
|
3085x21x16
|
28.00
|
|
|
TTH133
|
133
|
|
2950
|
1660
|
600
|
3245
|
3375x21x16
|
32.00
|
|
|
TTH135
|
135
|
|
2990
|
1680
|
600
|
3285
|
3415x21x16
|
34.00
|
|
|
TTH150
|
150
|
|
3320
|
1870
|
450
|
3615
|
3745x21x16
|
35.00
|
|
|
TTW100
|
100
|
2.35:1
|
2340
|
1000
|
750
|
2635
|
2765x21x16
|
24.00
|
|
|
TTW106
|
106
|
|
2480
|
1060
|
750
|
2775
|
2905x21x16
|
26.00
|
|
|
TTW120
|
120
|
|
2810
|
1200
|
750
|
3105
|
3235x21x16
|
28.00
|
|
|
TTW133
|
133
|
|
3110
|
1320
|
750
|
3405
|
3535x21x16
|
33.00
|
|
|
TTW135
|
135
|
|
3160
|
1350
|
750
|
3455
|
3585x21x16
|
34.00
|
|
|
TTW150
|
150
|
|
3510
|
1490
|
750
|
3805
|
3935x21x16
|
36.00
|
|
Tab-Tensioned Motorized Mesh screen
Ta-tensioned Motorized screen
Main Applications
Home Cinema、Digital Cinema、
Business presentations
、Entertainment venues etc
Installations
Multifunctional Tracking Mounting Bracket (Wall mounted and ceiling hanged)
These brackets have the ability to be wall mounted or ceiling hanged. The floating L-bracket design allows for horizontal adjustment and therefore the brackets can be fixed at any preferred point on the screen casing. Tightening screens ensure the screen remains locked and secure.
