Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
uluru
-
Model Number:
-
Y18
-
internal battery:
-
50mah for optional
-
Speed precision:
-
0.1 m/s
-
Band GSM:
-
850 MHz / 900 MHz / 1800 MHz / 1900 MHz
-
Appearance size:
-
74*32*13mm
-
Channel:
-
20
-
GSM MODULE:
-
mtk
-
Color:
-
Black
-
voltage:
-
9-90v
-
gps chipset:
-
gps+bd
Quick Details
-
Positioning Mode:
-
GSM, GPS, GPRS, LBS, AGPS, Beidou, GLONASS, Real-Time Positioning, Emergency Positioning, Power Saving Mode
-
Function:
-
Voice Monitor, street view, ACC Detection, Over-Speed Warning, Wheel Path Playback, Geofence
-
Data Storage:
-
Other, Cloud Storage
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
uluru
-
Model Number:
-
Y18
-
internal battery:
-
50mah for optional
-
Speed precision:
-
0.1 m/s
-
Band GSM:
-
850 MHz / 900 MHz / 1800 MHz / 1900 MHz
-
Appearance size:
-
74*32*13mm
-
Channel:
-
20
-
GSM MODULE:
-
mtk
-
Color:
-
Black
-
voltage:
-
9-90v
-
gps chipset:
-
gps+bd
Product Features:
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:9-90V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
Function Extension:
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Environment for use :
1.Limited working temperature:-20°C~80°C
2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.
6.Battery: 70MAh battery
Basic Specifications:
| Working Voltage: | 12VDC/24VDC |
| Standby Current | <3mA |
| Work current : | <120mA |
| GPS positioning accuracy | 15M |
| GSM positioning accuracy | 100M |
| GPS Frequency | 1575MHz |
| GSM Frequency : | 850/900/1800/1900MHz |
| Hot/warm/cold start time : | <3S,<1S,<60S |
| Dimensions (mm) : | 74*32*13mm |
| Weight : | 30g |
Connect Cable Optional
1) 2pins cable
Power supply only

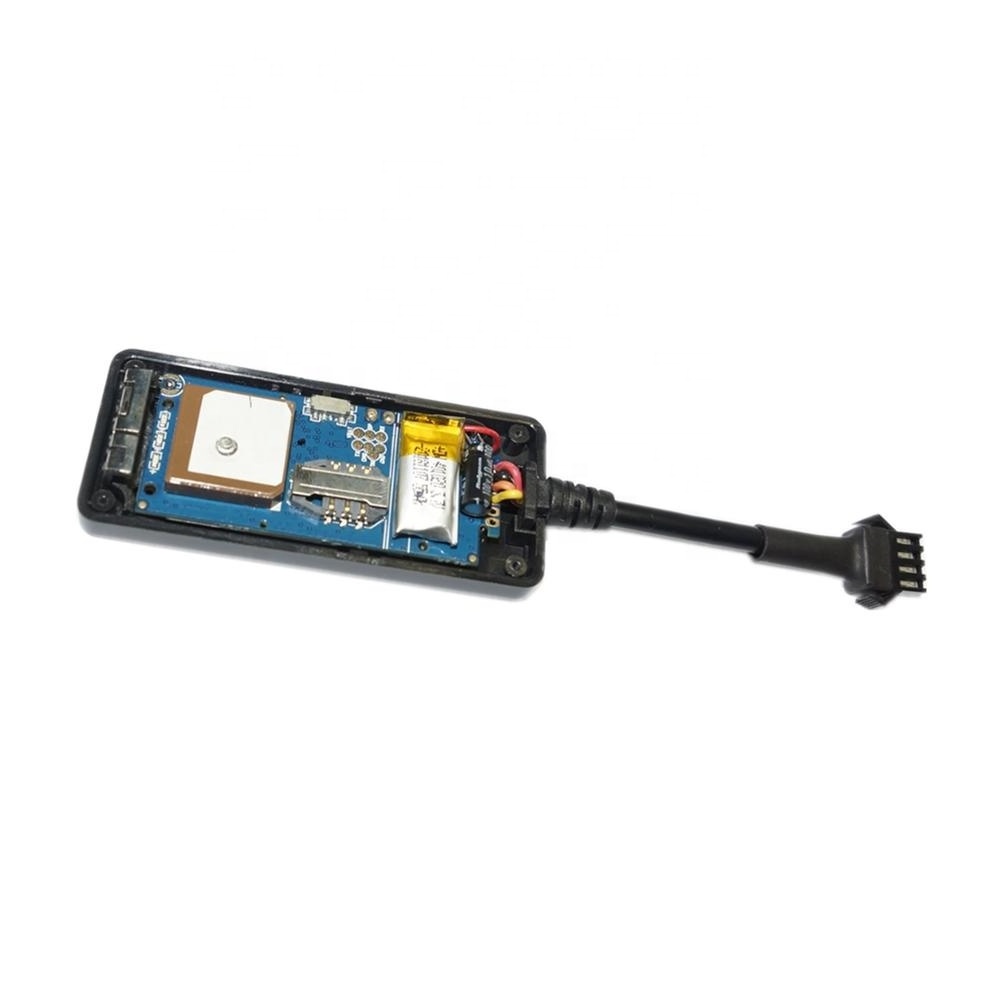

2) 4pins cable (Picture showed is 4 pin cable)
Connect Power cable, relay, ACC
Shenzhen Xiyuan Electronic Technology Co., Ltd is a Solution Provider of GPS Tracking System, have strong engineering team and ODM experience, can develop products in every potential form ,For lots of overseas companies make the Customized product which from Russia, UK ,USA ,Malaysia and so on. Customized color, logo and box accepted.
