Quick Details
-
Machinery Test Report:
-
provided
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hebei Runfeng
-
Dimension(L*W*H):
-
516*1632mm
-
Weight:
-
117
-
Product name:
-
Cryogenic Liquid Storage Tank
-
Storage Medium:
-
LNG/LN2/LO2/LAR/LCO2
-
Material:
-
Stainless Steel
-
Usage:
-
Store Liquid
-
National standard:
-
ASME,EAC,CE,ISO9001
-
MOQ:
-
1 Set
-
Advantage:
-
Flexible
-
Standard:
-
GB150 ASME
Quick Details
-
Capacity:
-
210L, 210L/0.21(m3)
-
Max Working Pressure(MPa):
-
3.45 MPa
-
Video outgoing-inspection:
-
provided
-
Machinery Test Report:
-
provided
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hebei Runfeng
-
Dimension(L*W*H):
-
516*1632mm
-
Weight:
-
117
-
Product name:
-
Cryogenic Liquid Storage Tank
-
Storage Medium:
-
LNG/LN2/LO2/LAR/LCO2
-
Material:
-
Stainless Steel
-
Usage:
-
Store Liquid
-
National standard:
-
ASME,EAC,CE,ISO9001
-
MOQ:
-
1 Set
-
Advantage:
-
Flexible
-
Standard:
-
GB150 ASME
Certifications
Product Description

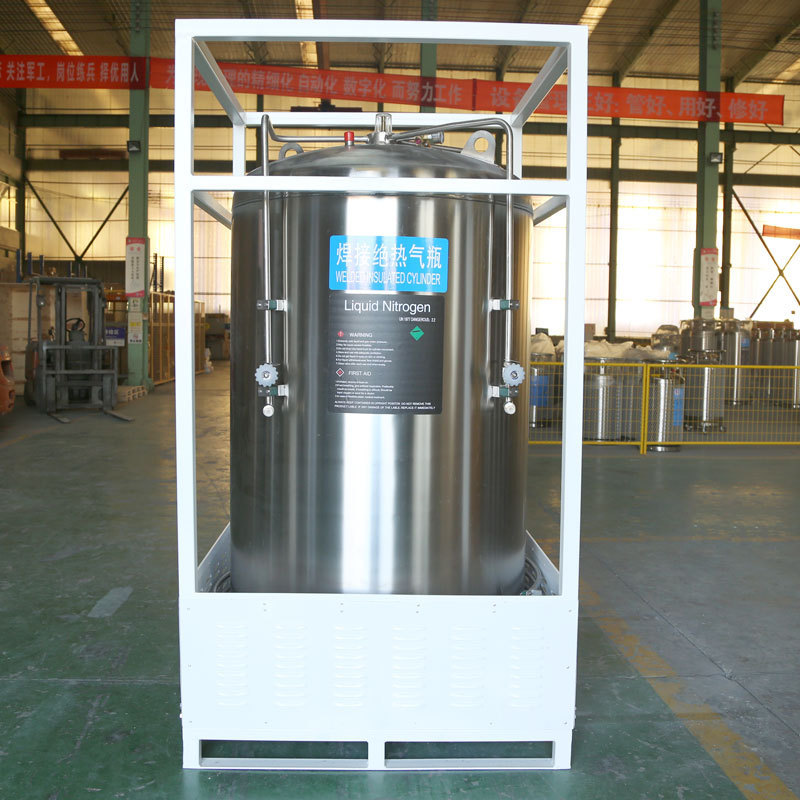

The DPL series containers are high performance vacuum insulated, it is designed to store and transport cryogenic liquid oxygen,nitrogen or argon. Containers can be used for over road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications in a long holding time, with self-Pressure built gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h. if you require a greater vaporizing volume, we can provide an external vaporizer.
What't the advantage of Dewai bottle?
1、The weight of the gas cylinder is about 116Kg, and the total weight after being filled with liquid gas is about 300Kg, while the total weight of the compressed gas in 30 cylinders with the same amount of gas is nearly 2000 Kg. Therefore, the auxiliary cost of transportation and manual handling can be greatly reduced.
1、The weight of the gas cylinder is about 116Kg, and the total weight after being filled with liquid gas is about 300Kg, while the total weight of the compressed gas in 30 cylinders with the same amount of gas is nearly 2000 Kg. Therefore, the auxiliary cost of transportation and manual handling can be greatly reduced.
With automatic pressurization control, saving circuit, built-in vaporizer, pressure and liquid level indicating device, high integration.
2、The storage pressure is low, and the multi-level safety protection device is installed, which has better safety and simple and reliable operation.
3、Large storage capacity, the gas storage capacity of a cylinder is equivalent to nearly 30 cylinders of cylinder gas (oxygen,nitrogen). Therefore, the storage space can be reduced, and the bottle changing operation can be reduced. 195L Dewar manufacturers can improve work efficiency. For centralized gas supply in pipelines, bus investment can be reduced.
2、The storage pressure is low, and the multi-level safety protection device is installed, which has better safety and simple and reliable operation.
3、Large storage capacity, the gas storage capacity of a cylinder is equivalent to nearly 30 cylinders of cylinder gas (oxygen,nitrogen). Therefore, the storage space can be reduced, and the bottle changing operation can be reduced. 195L Dewar manufacturers can improve work efficiency. For centralized gas supply in pipelines, bus investment can be reduced.
Applications:
1.to fill liquid oxygen for medical use, as an equipment for providing LO2;
2.to fill oxygen for the cutting, welding, and heating of metal in industry;
3.to fill liquid argon for argon-arc welding and other protection occasion of argon;
4.to fill liquid nitrogen for the protective use by high nitrogen, and the field of food, pharmaceutical, biotech, super conduction etc.
1.to fill liquid oxygen for medical use, as an equipment for providing LO2;
2.to fill oxygen for the cutting, welding, and heating of metal in industry;
3.to fill liquid argon for argon-arc welding and other protection occasion of argon;
4.to fill liquid nitrogen for the protective use by high nitrogen, and the field of food, pharmaceutical, biotech, super conduction etc.
|
Product Model
|
|
DPL-100
|
DPL-175
|
DPL-195
|
DPL-210
|
DPL-410
|
DPL-450
|
|
||
|
Diameter*Height(mm)
|
|
454*1247
|
508*1500
|
508*1620
|
508*1707
|
750*850*1770
|
750*850*1900
|
|
||
|
Working Pressure(MPa)
|
|
1.33
|
1.42.01
2.88 |
1.42.01
2.88 |
1.42.01
2.88 |
1.43.17
|
1.43.17
|
|
||
|
Pressure Relief Valve(MPa)
|
|
1.59
|
1.592.41
3.45 |
1.592.41
3.45 |
1.592.41
3.45 |
1.593.45
|
1.593.45
|
|
||
|
Inner Container Bursting Disc(MPa)
|
|
2.60
|
2.603.62
5.17 |
2.603.62
5.17 |
2.603.62
5.17 |
2.605.70
|
2.605.7
|
|
||
|
Maximum Liquid Capacity(L)
|
|
100
|
175
|
195
|
210
|
410
|
450
|
|
||
|
Usable Liquid Capacity(L)
|
|
95
|
166
|
185
|
197
|
389
|
427
|
|
||
|
Normal Evaporation Rate ((LN2))
|
|
≤2.1%
|
≤2.1%
|
≤2.1%
|
≤2.1%
|
≤1.8%
|
≤1.8%
|
|
||
|
Tare Weight(Kg)
|
|
70
|
110
|
117
|
123
|
282
|
289
|
|
||
|
The Filling Quality |
Oxygen(kg)
|
100
|
172
|
191
|
205
|
443
|
487
|
|
||
|
|
Nitrogen(Kg)
|
73
|
121
|
135
|
145
|
315
|
346
|
|
||
|
|
Argon(Kg)
|
127
|
208
|
233
|
250
|
548
|
602
|
|
||
|
|
Natural Gas (Kg)
|
----
|
70.1
|
76
|
86.3
|
161
|
176
|
|
||
|
|
CO2(Kg) High Pressure only
|
----
|
138
|
154
|
164
|
325
|
357
|
|
||
|
|
N2O(Kg) High Pressure only
|
----
|
191
|
213
|
227
|
448
|
492
|
|
||
Packing & Delivery
For packing: We can packing it according to customer requirements.
For shipment: We have agent forwarder, can help customers find
best freight cost, and we suggest customers do business by CIF.
best freight cost, and we suggest customers do business by CIF.
