Quick Details
-
Mold Height(mm):
-
250 - 400
-
Ejector Stroke(mm):
-
35 mm
-
Ejector Force(kN):
-
1.3 kN
-
Theoretical Shot Volume(cm³):
-
40 cm³
-
Injection Rate (g/s):
-
40 g/s
-
Injection Weight (g):
-
48 g
-
Screw Speed (rpm):
-
10 - 200
-
Screw diameter (mm):
-
25 mm
-
Screw L/D Ratio:
-
21
-
Weight (KG):
-
800 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
340 mm
-
Model Number:
-
JT-250ST
-
Brand Name:
-
jietai
-
Power (kW):
-
2 kW
-
Product name:
-

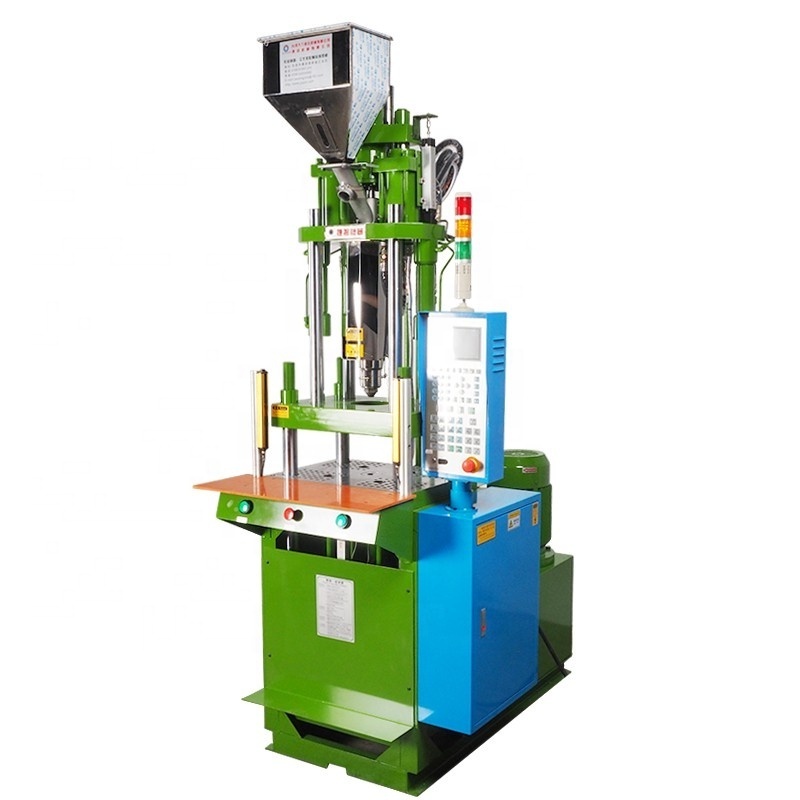

Vertical injection molding machine
-
Keyword:
-
Plastic Machinery Equipment
-
Function:
-
Plstic Injection Molding Machinery
-
Application:
-
Inserting Plastic Products
-
Motor:
-
Servo Energy Saving
-
Machine weight:
-
0.85 T
-
Raw material:
-
PP PE PVC ABS EVA........
-
Space between Tie Bar:
-
440*340mm
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
350 mm
-
Distance between Tie Bars(Height)(mm):
-
300 mm
-
Plasticizing Capacity(g/s):
-
40
-
Mold Height(mm):
-
250 - 400
-
Ejector Stroke(mm):
-
35 mm
-
Ejector Force(kN):
-
1.3 kN
-
Theoretical Shot Volume(cm³):
-
40 cm³
-
Injection Rate (g/s):
-
40 g/s
-
Injection Weight (g):
-
48 g
-
Screw Speed (rpm):
-
10 - 200
-
Screw diameter (mm):
-
25 mm
-
Screw L/D Ratio:
-
21
-
Weight (KG):
-
800 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
340 mm
-
Model Number:
-
JT-250ST
-
Brand Name:
-
jietai
-
Power (kW):
-
2 kW
-
Product name:
-
Vertical injection molding machine
-
Keyword:
-
Plastic Machinery Equipment
-
Function:
-
Plstic Injection Molding Machinery
-
Application:
-
Inserting Plastic Products
-
Motor:
-
Servo Energy Saving
-
Machine weight:
-
0.85 T
-
Raw material:
-
PP PE PVC ABS EVA........
-
Space between Tie Bar:
-
440*340mm
Main Features:
1) Straight screw ejected assembly.
2) Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of die.
5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Can be installed a single mold or double shuttle table.
Specification of Vertical Pvc Plastic Injection Molding Machine :
| MODEL | UNIT | JY-160S2 | |
| INJECTION UNIT | Screw Diameter | mm | ø 26- ø 28 |
| Theoretical Injection Volume | cm³ | 61.5-71.4 | |
| Injection Weight(PS) | g(oz) | 58(2.05)-67.5 (2.38) | |
| Max.Injection Pressure | Mpa(kgf/cm²) | 115.7(1180)-99.7 (1017) | |
| Injection Rate | cm³/s | 44-51.08 | |
| Injection Speed | mm/s | 83 | |
| Injection Stroke | mm | 116 | |
| Screw Speed Rotation | r.p.m | 0-170 | |
| NO.of Temperaturecontrol | 3 | ||
| Nozzle Out From Platens | mm | ≥25 | |
| CLAMPINGUNIT | Clamping Force | KN(tf) | 147(15) |
| Clamping Stroke | mm | 185 | |
| Min.Mold Thickness | mm | 25/75 | |
| Max.Opening | mm | 210/260 | |
| (L*W)Distance Between Tie Bars | mm | 270 | |
| (L*W)Max.MouldSize | mm | 250*200 | |
| (L*W)Platen Size | mm | 250*250 | |
| Ejector Distance | mm | 25 | |
| Ejector Force | KN(tf) | 12.7(1.3) | |
| OTHERS | Oli Tank Capacity | L | 68 |
| Electric Power | KW(HP) | 2.2(3)-6P | |
| Heater Power | KW | 2.2 | |
| Machine Dimensions | L*W*H | 1.14*0.85*2.05M | |
| Machine Weight | tf | 0.6 |
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,usb cable,etc.
More Application:
1.We will arrabge to manufacture the machine the second day after your confirmation.
2.Before shipment,we will check and test the machine carefully.
3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.
| Packaging | |
| Dimensions | 1.24*0.95*2.25m |
| Weight | 0.67kg |
