Quick Details
-
Model Number:
-
JWD-U001
-
Product name:
-
Automatic wire feeding machine
-
Applicable wire type:
-
wire coil, single core/multi-core cable roll
-
Voltage:
-
AC110V/220V 50/60HZ
-
Speed:
-
10 level
-
Motor:
-
750W
-
Spool diameter:
-
500mm
-
Wire size:
-
< 15mm, wire reel: 550mm
-
Weight capacity:
-
50kg
-
Dimension:
-
110*56*118cm
-
Packing:
-
wooden case for wire sender machine
Quick Details
-
Use:
-
Multifunctional
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Better Tech
-
Model Number:
-
JWD-U001
-
Product name:
-
Automatic wire feeding machine
-
Applicable wire type:
-
wire coil, single core/multi-core cable roll
-
Voltage:
-
AC110V/220V 50/60HZ
-
Speed:
-
10 level
-
Motor:
-
750W
-
Spool diameter:
-
500mm
-
Wire size:
-
< 15mm, wire reel: 550mm
-
Weight capacity:
-
50kg
-
Dimension:
-
110*56*118cm
-
Packing:
-
wooden case for wire sender machine
Product Information

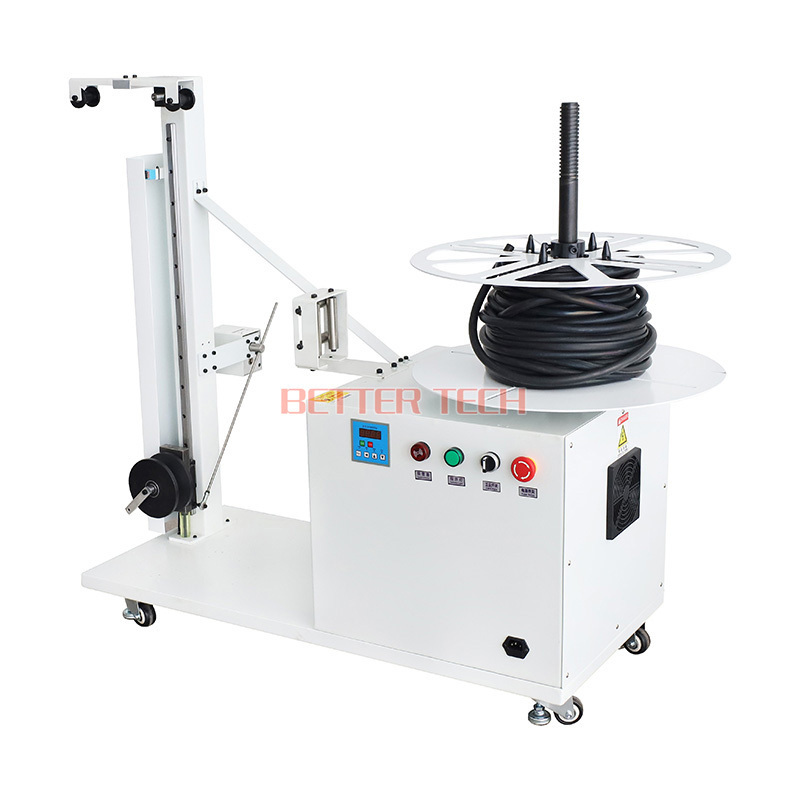

The infinitely variable wire feeding system is very suitable for co-working with wire processing machines such as automatic
crimping machines, cable cutting and stripping machines, wire soldering machines and much more. Features: 1. Infinitely variable
speed, no need to adjust feeding speed manually.
2.Speed: 4 meters/second
3.Automatic induction with brake, constant speed of the guide rail, no resistance.
4.Low noise, and the reel can be adjusted according to the wire diameter.
crimping machines, cable cutting and stripping machines, wire soldering machines and much more. Features: 1. Infinitely variable
speed, no need to adjust feeding speed manually.
2.Speed: 4 meters/second
3.Automatic induction with brake, constant speed of the guide rail, no resistance.
4.Low noise, and the reel can be adjusted according to the wire diameter.
|
Product Model
|
JWD-U001
|
|
Voltage
|
AC110C/220V 50/60HZ
|
|
Applicable wire type
|
wire coil, single core/multi-core cable roll
|
|
Weight capacity
|
50 KG
|
|
Speed
|
10 level
|
|
Spool diameter
|
500mm
|
|
Wire size
|
≤15mm
|
|
Dimension
|
110*56*118cm
|
|
Weight
|
146kg
|
