- Product Details
- {{item.text}}
Quick Details
-
Name:
-
Two stage liquor filter machine
-
Application:
-
Liquor, wine, beet etc filtration, home use
-
Capacity:
-
50-150L/h
-
Usage:
-
Home use, commercial use
-
Filtration level:
-
2 stage
-
First filtration stage:
-
PP cottom filter element
-
Second filtration stage:
-
0.1 mincron fine filter element
-
Power:
-
80W
-
Working pressure:
-
<0.4Mpa
-
Accessories:
-
Include pressure gauge, pipes etc.
Quick Details
-
Weight (KG):
-
5
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shuangfa
-
Name:
-
Two stage liquor filter machine
-
Application:
-
Liquor, wine, beet etc filtration, home use
-
Capacity:
-
50-150L/h
-
Usage:
-
Home use, commercial use
-
Filtration level:
-
2 stage
-
First filtration stage:
-
PP cottom filter element
-
Second filtration stage:
-
0.1 mincron fine filter element
-
Power:
-
80W
-
Working pressure:
-
<0.4Mpa
-
Accessories:
-
Include pressure gauge, pipes etc.

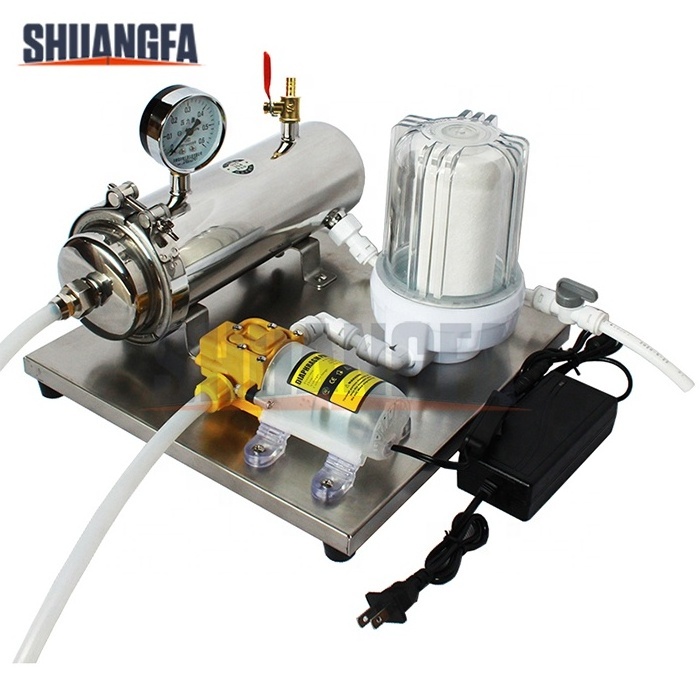

Home Use Liquor Filter Machine, Best Price Membrane Wine Filter Machine
Technical Parameter of Home Use Liquor Filter Machine, Best Price Small Membrane Wine Filter Machine:
| Model | M10-4 | M10-3 | M10-2 | M5-2 |
| Capacity(kg/h) | 200-250 | 200-250 | 200-250 | 50-100 |
| Filtration level | 4 | 3 | 2 | 2 |
| Voltage | 220V 50Hz single phase | 220V 50Hz single phase | 220V 50Hz single phase | 220V 50Hz single phase |
| Power(W) | 80 | 80 | 80 | 80 |
Features of Home Use Liquor Filter Machine, Best Price Small Membrane Wine Filter Machine:
1, Multistage filtration, first stage is PP cotton filter element, second stage is fine filter element, the filtration effect is good, can be 0.1micron filtration accuracy.
2, Strong and durable stainless steel base
The base adopts automatic stainless steel forming technology, thickening rigid solid durable, fine drawing and polishing process, beautiful and durable surface.
3, Quick interface for inlet and outlet, Silicone inlet and outlet pipe, Food grade material 8*12cm.
4, With Pressure gauge, The normal working pressure is within 0-0.4Mpa, If the pressure exceeds 0.4 or the filtering speed becomes slow, it indicates that the filter element has been blocked, and the filter element should be replaced in time.
5, The wine inlet is equipped with SS304 filter head and 500 mesh filter bag to effectively protect the service life of PP cotton and microporous membrane.
6, There have the Filter screen, which Effectively protect the service life of PP cotton and microporous membrane.
7, 12V power adapter, safer to use.
8, Food grade booster pump, Pure copper motor, large flow.
Filter element installation position:
Pls Contact Us For More Information And Quotation!
