Quick Details
-
inputs:
-
IP
-
output:
-
IP
-
IP output:
-
HTTP, UDP (SPTS), HLS and RTMP, SRT
-
IP anti- jitter function:
-
support
-
applation:
-
hotel iptv solution
-
product name:
-
IPTV Gateway and IPTV server
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Huafan
-
Model Number:
-
iStreamer
-
inputs:
-
IP
-
output:
-
IP
-
IP output:
-
HTTP, UDP (SPTS), HLS and RTMP, SRT
-
IP anti- jitter function:
-
support
-
applation:
-
hotel iptv solution
-
product name:
-
IPTV Gateway and IPTV server

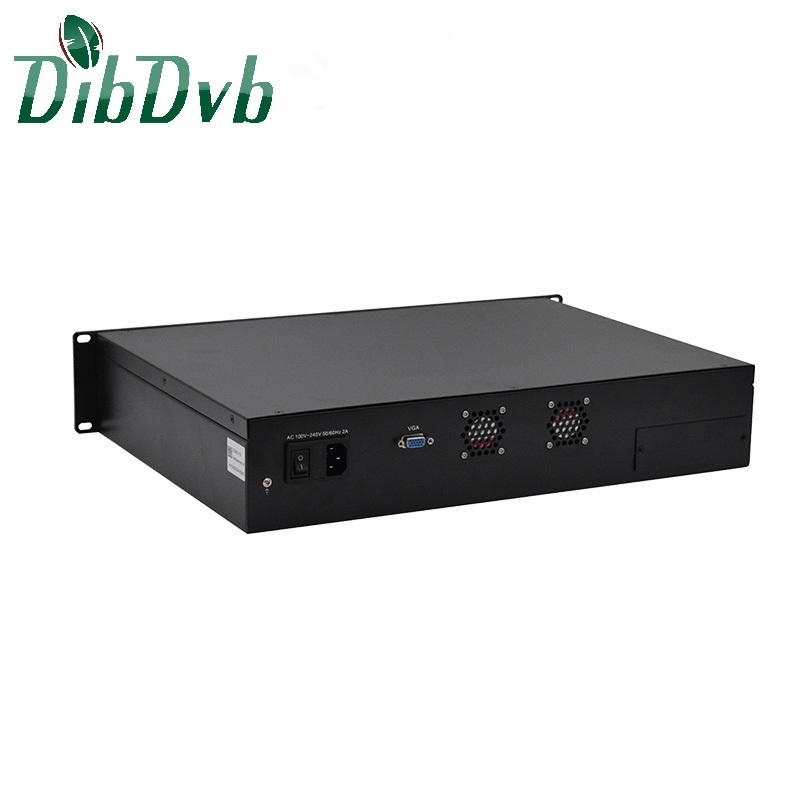

iStreamer is a powerful, yet low power consumption IPTV Gateway Server which combined with IP Gateway and IPTV server in one unit.
It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, SRT, HLS and RTMP protocol. The platform can integrate IPTV system and users can upload VOD source on it with huge memory.
- IPTV Gateway + IPTV server in one device
- Manage gateway and IPTV server separately
- First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP, SRT
- Data CH1~CH9 ports: IP in over HTTP, UDP (SPTS), RTP(SPTS), RTSP, RTMP and HLS, SRT; IP out over HTTP, SRT, HLS and RTMP (Unicast)
- SRT input mode support Caller and Rendezvous; SRT output mode support Listener, Caller and Rendezvous
- Adding scrolling caption, welcome words, pictures, advertisement, video, music in main interface
- IPTV Functions: Live channel, VOD, Hotel intro, Dining, Hotel service, Scenery intro, APPS...
- IP anti- jitter function
- support IP address detection function, it allows the use of company IP detection tools to detect gateway IP addresses
- UDP/RTP input support MPTS (bitrate ≤30M)/SPTS
- TS files uploading through Web management
- Downloading HUAFAN IPTV APK directly from this device
- Support program playing with APK downloaded android STB and TV
Protocol conversion
TECHNICAL SPECIFICATIONS
Input
CH1 ~ CH9(1000M): IP input over HTTP, UDP(SPTS/MPTS),
RTP(SPTS/MPTS), RTSP, SRT, RTMP (over UDP, payload: mpeg TS) and HLS
TS files uploading through Web management
IP Output
Data port (1000M) over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)
DATA CH 1-9(1000M) ports IP out over HTTP/HLS/RTMP (Unicast), SRT
SYSTEM
|
iStreamer -S |
iStreamer -M |
i Streamer -I |
i Streamer - S I |
|
|
Memory |
4G |
4G |
8G |
8G |
|
CPU |
1037 |
I5 |
I 7 |
I3 |
|
Solid-State Disk(SSD) |
120G |
120G |
120G |
120G ( SATA ) |
|
Mechanical Hard Disk |
4T |
4T |
4T |
/ |
|
Ethernet Interface |
8*Gigabit Ethernet port |
8*Gigabit Ethernet port |
8*Gigabit Ethernet port and 1*SFP+ |
8*Gigabit Ethernet port and 1*SFP+ |
Channel switching time: HTTP (1-3s), HLS (0.4-0.7s)
IPTV System Function : Live channel, VOD, Hotel introduction, Dining, Hotel service, APPS, scenery introduction, etc
(the STB/Android TV installed HUAFAN IPTV APK)
IPTV system main interface scrolling caption, welcome words, pictures, advertisement, video , music, etc
(the STB/Android TV installed HUAFAN IPTV APK)
Play programs with APK downloaded android STB and TV
Management : web-based NMS
maximum : 80 HD/SD programs Bitrate 2Mbps each programs
HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization
Environment
Power Supply : AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
Dimension : 482.6mm×328mm×88mm (W*L*H)
Operating temperature : 0 ~45℃
Storage temperature : -20 ~ 80℃
Humidity : 10 ~ 90% non-condensed
Test data for reference
|
Model |
iStreamer-S |
iStreamer-M |
iStreamer- S I |
iStreamer-I |
|
|
size |
2U |
2U |
2U |
2U |
|
|
Number of network ports |
8 |
8 |
8 |
8 |
|
|
SFP+ |
× |
× |
√ |
√ |
|
|
software |
Live+IPTV |
Live+IPTV |
Live+IPTV |
Live+IPTV |
|
|
Load capacity |
I nput channel |
SD (4M) 40 CHS |
HD (8M) 40 CHS |
HD (8M) 50 CHS |
HD (8M) 60 CHS |
|
|
Load terminal |
100 |
150 |
400 |
600 |
|
VOD capacity |
Within 50 |
Within 50 |
Within 50 |
Within 50 |
|
