Quick Details
-
Weight (KG):
-
200 kg
-
Product name:
-
Dual double mast aluminum lift
-
Max platform height:
-
6m, 8m, 9m, 10m, 12m
-
Max working height:
-
8m, 10m, 11m, 12m, 14m
-
Loading capacity:
-
200kg
-
Platform size:
-
1.3*0.62M, 1.52*0.62M
-
Overall size:
-
1.54*1.99m, 1.76*1.99m
-
Weight:
-
630kg, 680kg, 730kg, 800kg, 830kg
-
Color:
-
Red, or customized
-
MOQ:
-
1 Set
-
Motor power:
-
1.5KW
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLIFT
-
Weight (KG):
-
200 kg
-
Product name:
-
Dual double mast aluminum lift
-
Max platform height:
-
6m, 8m, 9m, 10m, 12m
-
Max working height:
-
8m, 10m, 11m, 12m, 14m
-
Loading capacity:
-
200kg
-
Platform size:
-
1.3*0.62M, 1.52*0.62M
-
Overall size:
-
1.54*1.99m, 1.76*1.99m
-
Weight:
-
630kg, 680kg, 730kg, 800kg, 830kg
-
Color:
-
Red, or customized
-
MOQ:
-
1 Set
-
Motor power:
-
1.5KW

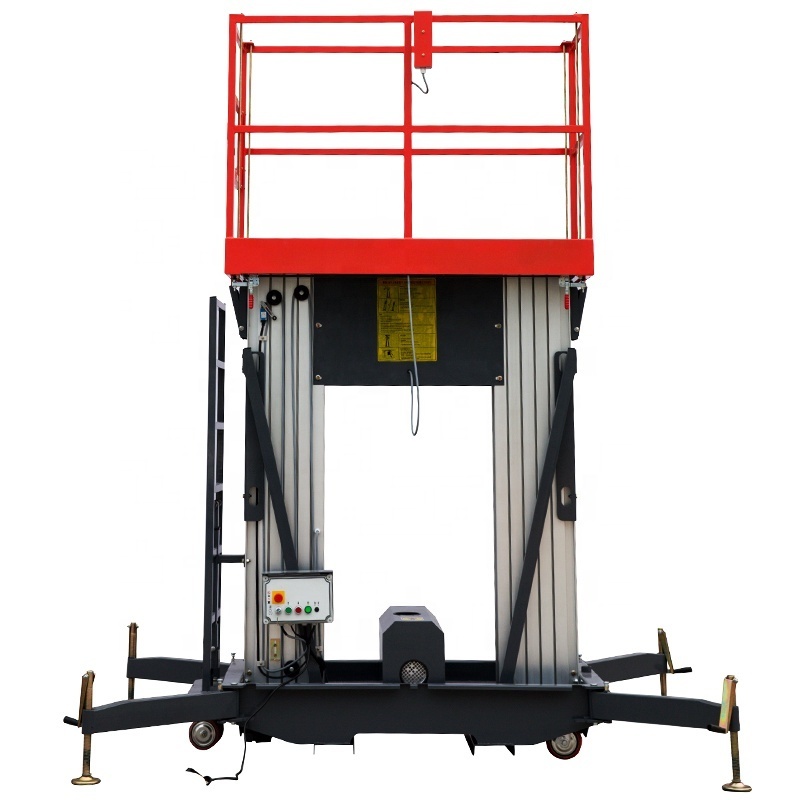

6M 8M 9M 10M 12M Standard Hydraulic Vertical Dual Double Mast Aluminum Work Platform Lift
Blift Brand Dual Vertical Mast Aluminum Lift
is famous for its light weight and high lift. It is made of aluminum alloy
, s
o the weight of the product is very light. Operator can move it around easily.
There are 2 up-down control panels, one is on side of the body and the other is on platform. It's simple structure make it much easier to operate, extremely low failure rate has gained customers' good grace.
Dual Masts Aluminum Lift Platform
is developed from Single Mast Aluminum Lift Platform. Compared with single mast aluminum lift platform, dual mast lift platform load capacity is 200kg,
lifting height from 6m to 14m.
It is widely used in supermarket
, mall,
factory, hotel, restaurant, station, theatre, exhibition hall, indoors and outdoors maintenance.
Moving by man manu
a
lly.
Lifting by AC(without battery) power or DC(with battery) power
AC: Voltage as per your local standard.
DC: Battery supply power.
|
Model No. |
DPL-6 |
DPL-8 |
DPL-9 |
DPL-10 |
DPL-12 |
|
|
Max.Platform Height |
6m |
8m |
9m |
10m |
12m |
|
|
Max Working Height |
8m |
10m |
11m |
12m |
14m |
|
|
Load Capacity |
200kg |
200kg |
200kg |
200kg |
200kg |
|
|
Platform Size |
1.3*0.62m |
1.3*0.62m |
1.3*0.62m |
1.52*0.62m |
1.52*0.62m |
|
|
Occupants |
One person |
|||||
|
Outrigger coverage |
1.77*1.82m |
1.77*1.82m |
1.77*1.82m |
2.1*2m |
2.1*2m |
|
|
Overall size |
1.54*1*1.99m |
1.54*1*1.99m |
1.54*1*1.99m |
1.76*1*1.99m |
1.76*1*1.99m |
|
|
Net Weight |
630kg |
680kg |
730kg |
800kg |
830kg |
|
|
Motor power |
1.5kw |
1.5kw |
1.5kw |
1.5kw |
1.5kw |
|
|
Options |
Battery |
2*12V/100AH |
||||
|
Motor |
2.2KW |
|||||
|
Charger |
12V/15A |
|||||
