Quick Details
-
Model Number:
-
Floating oil seal
-
Product name:
-
Floating oil seal
-
Certificate:
-
ISO9001:2015
-
Application:
-
bucket seal, hydraulic cylinder
-
Standard or Nonstandard:
-
Standard size or custom size
-
Brand:
-
DLSEALS
-
Material:
-
NBR, PU , PTFE,
-
Color:
-
Black,White,Blue
-
Hardness:
-
70-90 Shores
-
MOQ:
-
10 set
-
Package:
-
PP bag, Carton
Quick Details
-
Size:
-
Standard size or custom size
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DLSEALS
-
Model Number:
-
Floating oil seal
-
Product name:
-
Floating oil seal
-
Certificate:
-
ISO9001:2015
-
Application:
-
bucket seal, hydraulic cylinder
-
Standard or Nonstandard:
-
Standard size or custom size
-
Brand:
-
DLSEALS
-
Material:
-
NBR, PU , PTFE,
-
Color:
-
Black,White,Blue
-
Hardness:
-
70-90 Shores
-
MOQ:
-
10 set
-
Package:
-
PP bag, Carton

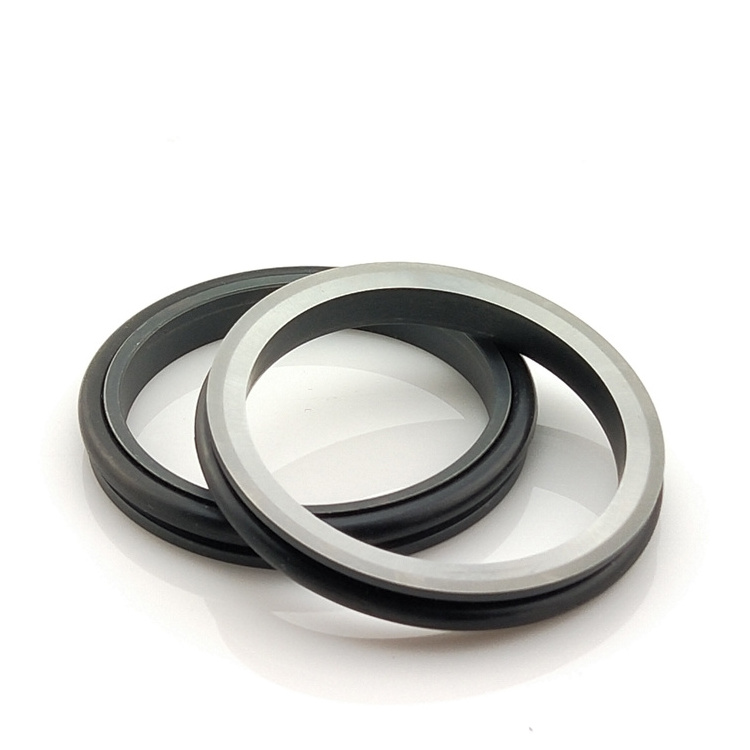

Manufacturer wholesale cheap mechanical floating oil seal for excavator machinery
Product Description
Floating oil seal is a kind of metal mechanical seals, initially used to replace the bulldozer chassis of rubber oil seal, the original use of rubber oil seal because of the sediment corrosion, wear and soaking, the damaged very fast, and the floating oil seal is designed for such bad working conditions and a compact structure of the mechanical seal device, to prevent oil leakage and prevent the external pollution such as soil body into device, floating oil seal structure is simple, wear-resisting, resistance to vibration, pollution, channeling, impact and oscillation, work stable and reliable service life is long, maintance now has been widely used in all kinds of engineering machinery and mining machinery.This kind of oil seal is also called double cone oil seal,permanent seal or metal end seal.
The sealing principle of floating oil seal is as follows: two floating rings are deformed by axial compression of o-ring seal to produce the compression force on the sealing face of floating ring.With the uniform wear of the sealing surface, the elastic energy stored by the o-ring is gradually released, thus playing the role of axial compensation.The sealing surface can keep good fit in the set time, the general sealing life is above 4000h.
The sealing principle of floating oil seal is as follows: two floating rings are deformed by axial compression of o-ring seal to produce the compression force on the sealing face of floating ring.With the uniform wear of the sealing surface, the elastic energy stored by the o-ring is gradually released, thus playing the role of axial compensation.The sealing surface can keep good fit in the set time, the general sealing life is above 4000h.
|
Serive range
|
|
|
|
Temperature
|
-25~+180℃
|
|
|
Pressure
|
40MPA
|
|
|
Medium
|
Hydraulic oil
|
|
|
Material
|
NBR+METAL
|
|
|
Application
|
Drum, gear reduction, wheel tractor, classifier, shovel, cultivator, trencher and grader;Cross-country truck, hydraulic excavator,
conveyor, concrete mixer, mining equipment, crushing machinery, etc |
|
Specification
|
item
|
value
|
|
Size
|
Standard size or custom size
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
DLSEALS
|
|
Model Number
|
Floating oil seal
|
|
Product name
|
Floating oil seal
|
|
Certificate
|
ISO9001:2015
|
|
Application
|
bucket seal, hydraulic cylinder
|
|
Standard or Nonstandard
|
Standard size or custom size
|
|
Brand
|
DLSEALS
|
|
Material
|
NBR, PU , PTFE,
|
|
Color
|
Black,White,Blue
|
|
Hardness
|
70-90 Shores
|
|
MOQ
|
10 set
|
|
Package
|
PP bag, Carton
|
Products Description
|
DLSEALS Different Type Oil Seal
|
|
|
|
|
||||
|
Type
|
Material
|
Lip
|
Spring
|
Feature
|
||||
|
TC
|
NBR & FKM
|
Double Lips
|
Single
|
Metal Coverd Rubber
|
||||
|
TB
|
NBR
|
Double Lips
|
Single
|
Metal Case
|
||||
|
TA
|
NBR
|
Double Lips
|
Single
|
Metal Case
|
||||
|
SC
|
NBR & FKM
|
Single
|
Single
|
Double Metal Shell
|
||||
|
SB
|
NBR
|
Single
|
Single
|
Metal Case
|
||||
|
SA
|
NBR
|
Single
|
Single
|
Double Metal Shell
|
||||
|
DC
|
NBR
|
Double Lips
|
Double
|
Double Springs
|
||||
|
VC
|
NBR & FKM
|
Single
|
Without
|
Metal Coverd Rubber
|
||||
|
VB
|
NBR
|
Single
|
Without
|
Metal Case
|
||||
|
TCV
|
NBR
|
Double Lips
|
Single
|
High Pressure
|
||||
|
TCN
|
NBR
|
Double Lips
|
Single
|
High Pressure
|
||||
|
PTFE
|
PTFE
|
Single & Double Lips
|
Without
|
Stainless steel
|
||||
|
HTCL
|
NBR & FKM
|
Double Lips
|
Single
|
Inside thread L
|
||||
|
HTCR
|
NBR & FKM
|
Double Lips
|
Single
|
Inside thread R
|
||||
|
DLSEALS provides various types of oil seals for industrial, automotive, motorcycle and other machinery, OEM and custom are available!
|
|
|
|
|
||||
|
MATERIAL
|
TEMP
|
ADANTAGES
|
LIMITATION
|
|
||||
|
Nitrile Rubbrt
(NBR)
|
-40~125℃
|
Good oil and fuel resistance
High tensile strength
Low swelling in water
|
Poor weather and ozine resistance
Poor resistance against polar lkuids
Poor resistance against clhydrocarbon
Poor resistance against aromatic fluids
|
|
||||
|
Fluorinated Rubber
(FKM)
|
-20~250℃
|
The resistance against oil and fuels is better than other types
The only highly elastic rubber whice is resistance to aromatci
and chlornated hydrocarbons
Exccllcent hcat resistance
Exccllcent weather and ozonc resistance
Exccllcent acid resistance
Low swelling in water
|
Limited tensile and tear strength Limited wear resistance High compression set in hot water Poor resistance to polaric solvents |
|
||||
|
Polyacrylate Rubber
(ACM)
|
-25~150℃
|
Good oil and fuels resistance
Good weater and ozone resistance
|
Not usable in contact with water and water solutions
Limited cold flexibility Limited tensile strength and tear resistance Poor wear reisistance Poor resistance against polar and aromatic and chlorinared hydrocarhons |
|
||||
|
Silicone Rubber
(VQM)
|
-60~225℃
|
Best heat resistance of all rubber types
Excellent low temp resistance of all rubber types
Excellent weather and ozone resistance
|
Poor tensile and tear strength
Poor wear resistance Sensitive to hydrolysis Poor resistance against aromatic oils and oxidized mineral oils Poor diffusion resistance |
|
||||
|
DLSEALS OIL SEAL More materials, EPDM, SBR, SR, CR, HNBR, etc. Please contact us.
|
|
|
|
|
||||
Our Advantages
FAQ
1. who are we? Are you trading company or manufacturer ?
We are manufacturer.We are based in Guangdong, China, start from 2010,sell to Domestic Market(33.00%),North America(15.00%),South America(10.00%),Western Europe(8.00%),Eastern Europe(6.00%),Southern Europe(6.00%),Southeast Asia(5.00%),Mid East(5.00%),Northern Europe(5.00%),Oceania(2.00%),South Asia(2.00%)
We are manufacturer.We are based in Guangdong, China, start from 2010,sell to Domestic Market(33.00%),North America(15.00%),South America(10.00%),Western Europe(8.00%),Eastern Europe(6.00%),Southern Europe(6.00%),Southeast Asia(5.00%),Mid East(5.00%),Northern Europe(5.00%),Oceania(2.00%),South Asia(2.00%)
There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PTFE Seals/Oil Seals/O Rings/Rubber Seals/Plastic Seals
PTFE Seals/Oil Seals/O Rings/Rubber Seals/Plastic Seals
4. why should you buy from us not from other suppliers?
GUANGDONG DLSEALS TECHNOLOGY CO., LTD. is a professional manufacturer of seals with 29 years of history.Our company specializes in the production of PU, PTFE, rubber and metal sealing components
5. How long is your delivery time? Generally it is 5-10 days if the goods are in
stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.Do you provide samples ? is it free or extra ?
stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but you need to pay the cost of freight.
7. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Japanese
For more information, please contact us. We look forward to your arrival
