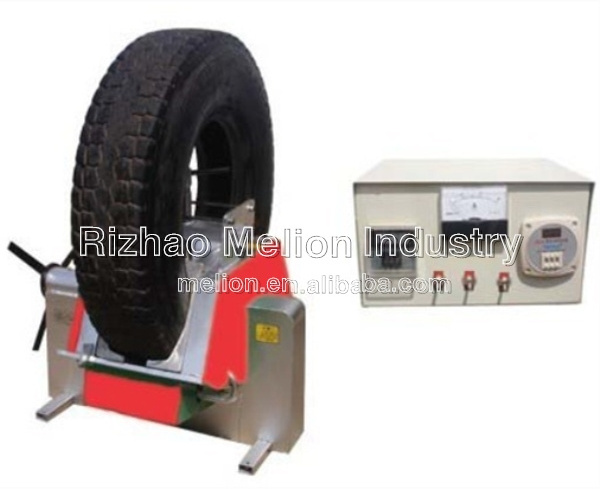

Tire partial Repair vulcanizing Machine

Tire partial Repair vulcanizing Machine

Advanced design, reasonable structure, new and practical. The use of internal and external pressure, constant temperature control, the use of provincial labor saving time, low power consumption, reliable performance, the use of safe, easy to operate, non-polluting, no noise. A machine only need to replace the plug, you can repair the vulcanization 900,1000,1100,1200 four specifications models of the tire, if the need to repair 650 825 specifications of the tire to be added with the corresponding insert and side mold, any part of the tire Of the big bang can repair. The aircraft is indeed the ideal of today's advanced tire repair equipment, by the tire repair industry, new and old customers alike.

technical parameters:
Working voltage: 220V
Total power: 5.3KW
Insulation test: ≥ 220MΩ
Vulcanization range: 650-1200
Can repair the mouth length: 520mm
Can repair tread length: 840mm
Dimensions: 800 × 950 × 800mm
Weight: 250kg

Quality requirements:
1, aluminum ingot quality: 104 models or more
2, push the spindle: 45 steel
3, bearings: do not use carbon steel bearings
4, chassis: ≥ 12mm steel plate
5, insulation: ≥ 8mm insulation board + insulation cotton

Product packaging:
1, tire repair machine
2, the temperature controller
3,900-1000 mold a pay
4,1100-1200 die a pay
5,650-825 small mold a pair (optional optional)
