Quick Details
-
Brand Name:
-
JXPC
-
Product name:
-

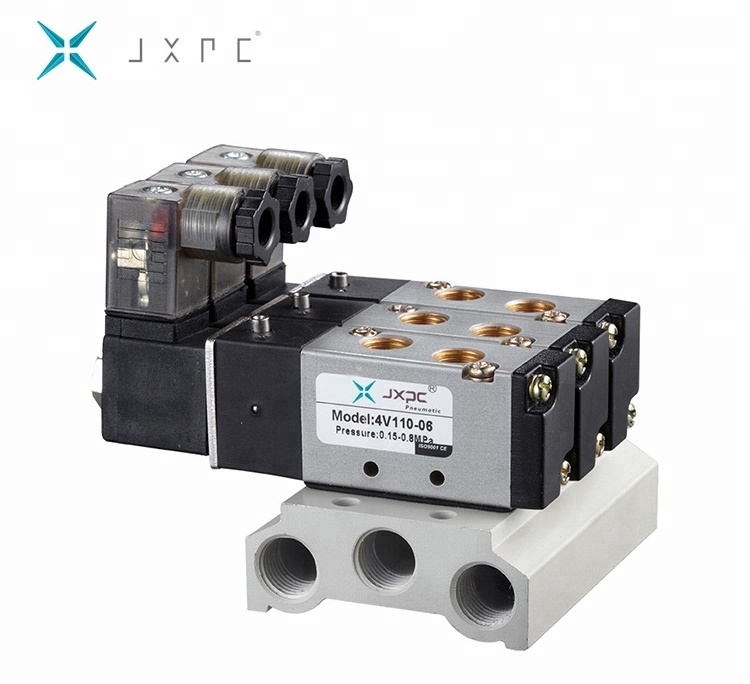

4V110-06 Pneumatic solenoid valve
-
Type:
-
Normal Colse, BALL VALVES, Backwater Valves, Temperature & Pressure Relief Valves, Pressure Reducing Control Valves, SOLENOID VALVES, PLUG VALVES, Water Regulating Valves, Faucet Valve, REVERSING VALVE
-
Body material:
-
Aluminum Alloy
-
Working pressure:
-
0.02Mpa-0.8Mpa
-
Voltage:
-
24V
-
Certificate:
-
ISO9001:2008 CE
-
Color:
-
Silver
-
Usage:
-
Air Exhaust
-
Working Temperature:
-
5-60 Degree
-
Thread:
-
BSPP BSPT NPT
Quick Details
-
Port Size:
-
1/8",M5*0.8
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
4V110-06
-
Brand Name:
-
JXPC
-
Product name:
-
4V110-06 Pneumatic solenoid valve
-
Type:
-
Normal Colse, BALL VALVES, Backwater Valves, Temperature & Pressure Relief Valves, Pressure Reducing Control Valves, SOLENOID VALVES, PLUG VALVES, Water Regulating Valves, Faucet Valve, REVERSING VALVE
-
Body material:
-
Aluminum Alloy
-
Working pressure:
-
0.02Mpa-0.8Mpa
-
Voltage:
-
24V
-
Certificate:
-
ISO9001:2008 CE
-
Color:
-
Silver
-
Usage:
-
Air Exhaust
-
Working Temperature:
-
5-60 Degree
-
Thread:
-
BSPP BSPT NPT
Product Description
- Product Name :Pneumatic Solenoid Valve
- Model :4V110-06
- Type : Two-position Five-way
-
Power Consumption:12V 24V 110V 220V 230V 380V or Custom
- Working Temperature Range: 5~50°C
- It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
- We have solenoids available in AC/DC and various size NPT threads as welll
| 4V100 Series Solenoid Valve,Pneumatic Control Valve | ||||||||||
| Model | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 |
| 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | |
| Position and Way NO. | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | ||||||
| Effective Sectional Area | 10mm²(CV=0.56) | 7mm²(CV=0.40) | 12mm²(CV=0.67) | 9mm²(CV=0.5) | ||||||
| Port Size | Air inlet=Air Outlet=Exhaust=M5×0.8" | Air inlet=Air Outlet=Exhaust=G1/8 | ||||||||
| Working Medium | Air (40Micron Filtered) | |||||||||
| Acting Type | Inner Guide Type | |||||||||
| Working Pressure | 0.15~0.8MPa | |||||||||
| Max.Pressure Resisance | 1.2MPa | |||||||||
| Working Temperature | 5~50°C | |||||||||
| Voltage Range | ±10% | |||||||||
| Power Consumption | AC:2.8VA DC:2.8W | |||||||||
| Insulation&Protection Class | F Class.IP 65 | |||||||||
| Wiring Form | Lead wire or Connector type | |||||||||
| Max.Frequency | 5 Cycle/Secretary | |||||||||
| ShortestActivate Time | 0.05 Second | |||||||||
