Quick Details
-
Remote control:
-
Available
-
Standard Lifting Height:
-
12M
-
Hook:
-
Single/Double Hook
-
Speed:
-
Double Speed
-
Voltage:
-
110V-220V
-
phase:
-
3 or 1 Phase
-
plug:
-
Different plug offer
-
Wire Rope:
-
Bold Copper Rope
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Color:
-
Red or customized as you require
-
Remote control:
-
Available
-
Standard Lifting Height:
-
12M
-
Hook:
-
Single/Double Hook
-
Speed:
-
Double Speed
-
Voltage:
-
110V-220V
-
phase:
-
3 or 1 Phase
-
plug:
-
Different plug offer
-
Wire Rope:
-
Bold Copper Rope

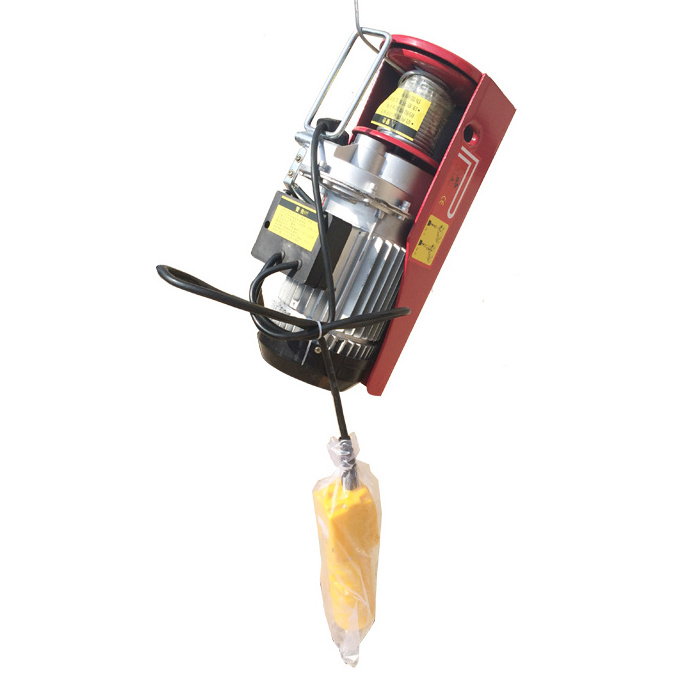

The electric cable hoist is kind of light and small lifting equipment,which is easy and convenient for operation.It consists of electr ic motor,transmission mechanism and winding drum or chain wheel.and it can be divided into steel wire rope and loop chain elec t ric cable hoists.The electric cable hoist is mainly used in industrial and mining enterprises,or some places that need lifting goods,such as warehouse,wharf,et c .In general,the lifting capacity of our electric hoist ranges from 100kg to 1000kg,and the lifting height ranges from 6 m to 25 m.
| Model | PA200 | PA250 | PA400 | PA500 | PA600 | PA800 | PA1000 | PA1200 |
| Rated volt(V) | 220v, 50hz, S3 20% 10mins | |||||||
| inpute power | 480 | 510 | 950 | 1020 | 1200 | 1300 | 1600 | 1800 |
| rated lifting(kg) | 100-200 | 125-250 | 200-400 | 250-500 | 300-600 | 400-800 | 500-1000 | 600-1200 |
| Lifting height(m) | Max can be 30m | |||||||
| Lifting speed | 7/14m/min | |||||||
| packing dimensions | 44*38*20 | 44*38*25 | 44*38*25 | 44*38*25 | 53*45*20 | 53*45*20 | 53*45*20 | 53*45*20 |
| G.W/N.W | 24/22 | 25/24 | 34/33 | 36/34 | 41/38 | 38/36 | 40/38 | 41/39 |
| QTY/ctns(pcs) | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 1 |
