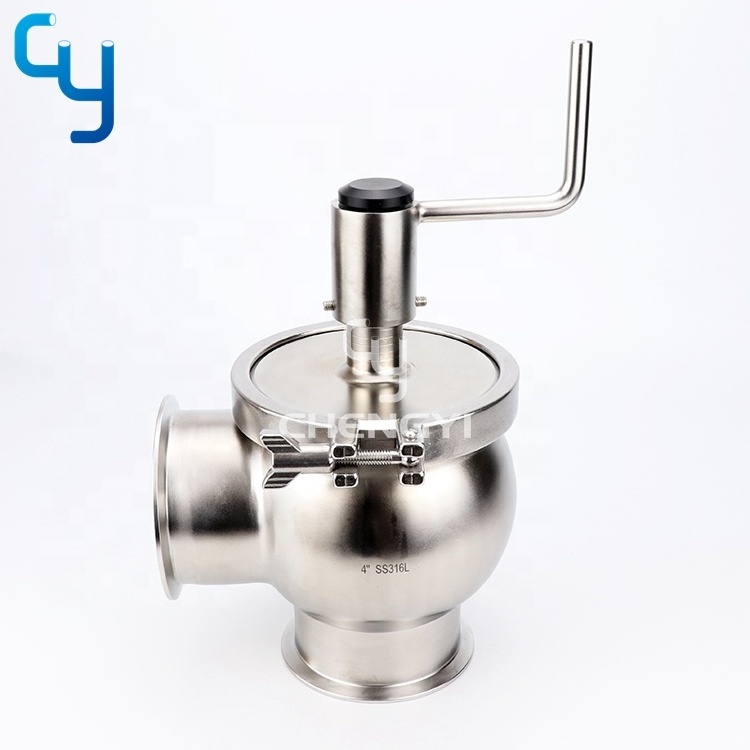

Sanitary stainless steel manual reversing valve divert seat valve
Sanitary stainless steel manual reversing valve divert seat valve
Sanitary stainless steel manual reversing valve divert seat valve
Sanitary stainless steel manual reversing valve divert seat valve
Sanitary stainless steel manual reversing valve divert seat valve
Sanitary stainless steel manual reversing valve divert seat valve
Sanitary stainless steel manual reversing valve divert seat valve
Sanitary stainless steel manual reversing valve divert seat valve

Sanitary stainless steel manual reversing valve divert seat valve

FOB Reference Price: Get Latest Price
≥5 Pieces
US $180
≥50 Pieces
US $171
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
CY
Product name:
Pneumatic divert seat valve
Standard or Nonstandard:
Standard
Standard:
ISO,DIN,IDF,SMS,3A,etc
Connection:
clamp, weld, thread
Seal:
EPDM,PTFE
Usage:
Sanitary valve for pharmaceutical sampling

Quick Details

Port Size:
1"-4",DN25-DN100
Place of Origin:
Zhejiang, China
Model Number:
CY-RV
Brand Name:
CY
Product name:
Pneumatic divert seat valve
Standard or Nonstandard:
Standard
Standard:
ISO,DIN,IDF,SMS,3A,etc
Connection:
clamp, weld, thread
Seal:
EPDM,PTFE
Usage:
Sanitary valve for pharmaceutical sampling
Product Description

Application

Divert seat reversing valve is major let the medium reach the purpose of reversing or end stop, because the good seal ability and clean ability, they are extensively use to different sanitary industry areas.

Work principle

Divert seat reversing valve change the energy which process by compressed air to the mechanical energy, the mechanical energy can drive the valve rod axial moving, thus move the different location of seal elements, which can control the switch for inlet of pipeline, finally realize the purpose of medium reversing or stop.

The reversing valve series control by handle, also reach the purpose of medium reversing or stop at the end.

Standard design

The series of valve have two types valve, that is the cut-off type and reversing type, the cut-off type can made of two or three pipeline connector, the reversing valve can made at three to five pipeline connector, their variety fully satisfied the needed of market.

Material Contact with the product parts 304(1.4301), 316L(1.4404)
Non contact product parts 304(1.4301)
Sealing material Standard

Seal: PTFE, O type seal ring

Up diaphragm: NBR diaphragm and standard diaphragm

Down diaphragm: PTFE, EPDM and standard diaphragm

O type ring: NBR diaphragm diaphragm and standard diaphragm.

(Remarks: when the temperature beyond 95 degree, the diaphragm need choose PTFE, O type ring choose EPDM.)

Pressure Working pressure 0~10bar

Compressed air pressure

5~ 7bar
Temperature Working temperature PTFE-20~+130℃
Sterilization temperature 150℃≤30min
Surface treatment Internal surface finish Ra0.4~0.8μm
External surface finish Ra0.8~1.6μm
Connection clamp, weld, thread
Standards 3A,DIN,ISO,SMS,IDF
Specification 1"-4",DN25-DN100

For more information or any question, please feel freely to contact with us here!

Product images

Size

For more information or any question, please feel freely to contact with us here!

FAQ

Q: What is the delivery time?
A: We have strong stock of standard products, generally delivery time within 7-14days.

Non-standard products or big quantity will take 7-30days depend on quantity.
Q: How long is the guarantee?
A: We promise guarantee as one year for non-human damage factor.
Q: What is the MOQ?
A: 1 set
Q: Can you do OEM & ODM?
A: Yes
Q: Where is your nearest port?
A: Ningbo/Shanghai Port
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wenzhou City, China.You can fly to Wenzhou Yongqiang airport directly.

Q:Why do you choose us?

We have wide range stock of stainless steel products.
We have experienced technical people, labor worksers. High effective sales team. Some of us had been in this industry for more than 17 years.

Mass production capacity ensure on time deivery.
One year warranty; perfect after-sales service for spare parts
Best prices with good quality and reliable performance
Easy maintenance.
Our logo or OEM
