Quick Details
-
Max. Depth of Drilling:
-
300m
-
Key word:
-
Horizontal Directional Drilling Rig
-
Certificate:
-
CE ISO
-
Rated speed:
-
2200 r/min
-
Motor maximum torque:
-
820N m /(1500r/min)
-
Drill stand adjustment angle:
-
0~23°
-
Prospecting Plunger Slurry Pump:
-
The maximum displacement is 320L/min, and the maximum pressure is 8MPa
-
Walking speed:
-
1.5-3km/h
-
Track track:
-
1900mm
Quick Details
-
Place of Origin:
-
China
-
Weight:
-
11000 KG
-
Mobility:
-
YES
-
Max. Depth of Drilling:
-
300m
-
Key word:
-
Horizontal Directional Drilling Rig
-
Certificate:
-
CE ISO
-
Rated speed:
-
2200 r/min
-
Motor maximum torque:
-
820N m /(1500r/min)
-
Drill stand adjustment angle:
-
0~23°
-
Prospecting Plunger Slurry Pump:
-
The maximum displacement is 320L/min, and the maximum pressure is 8MPa
-
Walking speed:
-
1.5-3km/h
-
Track track:
-
1900mm
Products Description

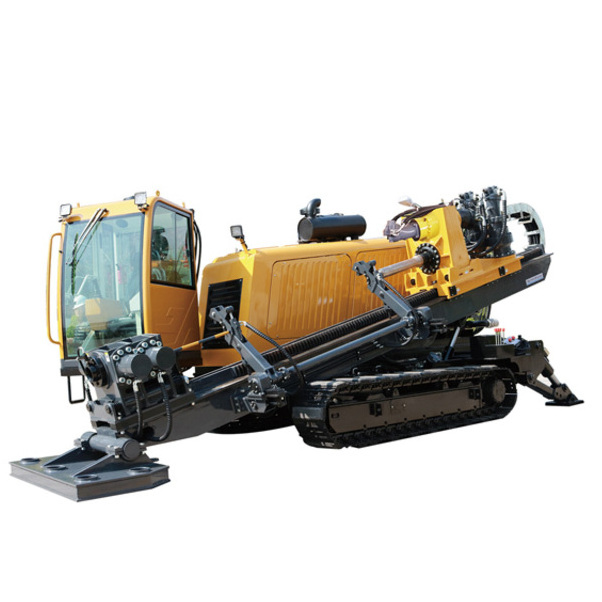

KFDP Series Horizontal Directional Drilling Rig
KFDP Series horizontal directional drilling rig
is designed as one-piece fully self-supporting type, adopts open circuit and hydraulic control method, and the main components such as hydraulic system, transmission system, reducer, electrical control system are selected from domestic well-known brand products, with high reliability.
Product Paramenters
|
Item
|
|
KFDR-35
|
KFDR-45
|
|
|
Engine
|
Manufacturers
|
Cummins
|
Cummins
|
|
|
|
Model
|
QSB5.9-C210-30
|
QSB8.3-C260-30
|
|
|
|
Power rating
|
154KW
|
194KW
|
|
|
Thrust-Pull
|
Max pull/thrust force
|
350KN
|
450KN
|
|
|
|
Max pull/thrust speed
|
38m/min
|
50m/min
|
|
|
Rotation
|
Torque
|
13500N.m
|
19500N.m
|
|
|
|
Max spindle speed
|
135r/min
|
120r/min
|
|
|
Drill Pipe
|
Diameter × Length
|
φ 73*3000
|
φ83*3000
|
|
|
Max inclination angle
|
|
23
|
23
|
|
|
Loader Crane
|
Lifting weight
|
/
|
/
|
|
|
Travel driving
|
Style
|
Steel crawler self-propelled
|
Steel crawler self-propelled
|
|
|
|
Traveling speed
|
1.5-3 km/h
|
2-2.6km/h
|
|
|
Weight
|
|
11t
|
12t
|
|
|
Size
|
|
6.7*2.25*2.4m
|
7.2*2.25*2.45m
|
|
